Grille: Service and Repair

Grille Replacement

Removal Procedure

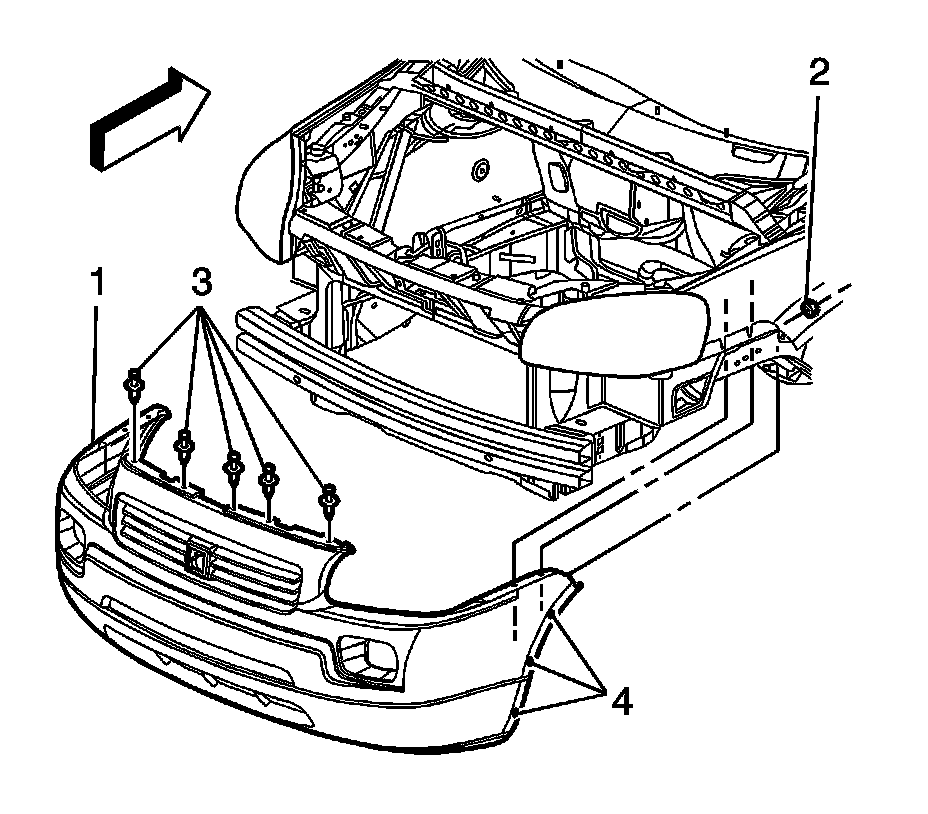

1. Remove the front bumper fascia (1).
2. Release the integral clips securing the grille to the front bumper fascia.
3. Remove the grille from the bumper fascia.
4. Remove the front grille emblem.

Installation Procedure




1. Install the front grille emblem.
2. Position the grille to the front bumper fascia and secure all of the integral clips to the front fascia opening.
3. Install the front bumper fascia.
