Heater Core Cover Replacement

Heater Core Cover Replacement

Removal Procedure




1. Remove the floor air outlet duct.

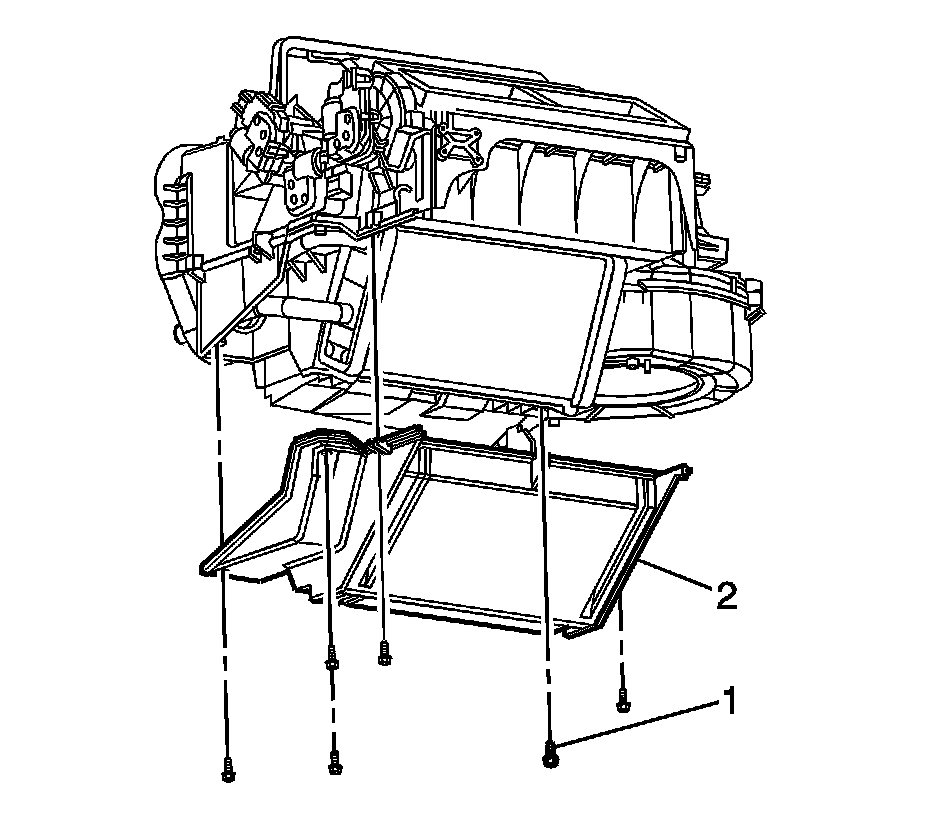

2. Remove the heater core cover screws (1).
3. Remove the heater core cover (2).

Installation Procedure




1. Install the heater core cover.

Notice: Refer to Fastener Notice.

2. Install the heater core cover screws.

Tighten the screws to 1.2 N.m (11 lb in).

3. Install the floor air outlet duct.
