Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Navigation Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Navigation Radio Antenna

Fig 2: Identifying I/P Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Tweeter
2	Speaker - LF Tweeter
3	Speaker - Center (UQA/UQG/UQS)

Fig 3: Identifying I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Sunload Sensor (CJ2)/Ambient Light Sensor (C67)
5	I/P Trim
6	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7	HVAC Control Module
8	Heated Seat Switch - Passenger (KA1)
9	Auxiliary Power Outlet - I/P
10	I/P Switch Assembly
11	Heated Seat Switch - Driver (KA1)
12	Hazard Switch
13	Driver Information Center (DIC) Switch (UH9)

Fig 4: Identifying Components Below Center I/P Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Speaker - Subwoofer (UQA/UQ6/UQS)

Fig 5: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Rear
2	Courtesy/Reading Lamp Center
3	Courtesy/Reading Lamp - Front
4	Front Overhead Console Assembly
5	Garage Door Opener (UG1)
6	Cellular Microphone (UE1)
7	Digital Video Disc (DVD) Player (U42)

Fig 6: View Below Drivers Side I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (UQA/UQG/UQS)
2	Body Control Module (BCM)
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor
5	G301

Fig 7: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Video/Audio/HVAC Module (UK6)
2	Heated Seat Switch - Driver (KA1)
3	Heated Seat Switch - Passenger (KA1)
4	Cigar Lighter
5	Auxiliary Power Outlet - Console Rear (DK1)
6	Audio/Video Adapter (U42)

Fig 8: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Memory Seat Switch (AG3)
3	Driver Door Module (DDM) (AXC/AXE)
4	Speaker - LF Door
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6	Door Latch Assembly - Driver
7	Window Motor - Driver
8	Turn Signal Lamp (Part of Outside Rearview )

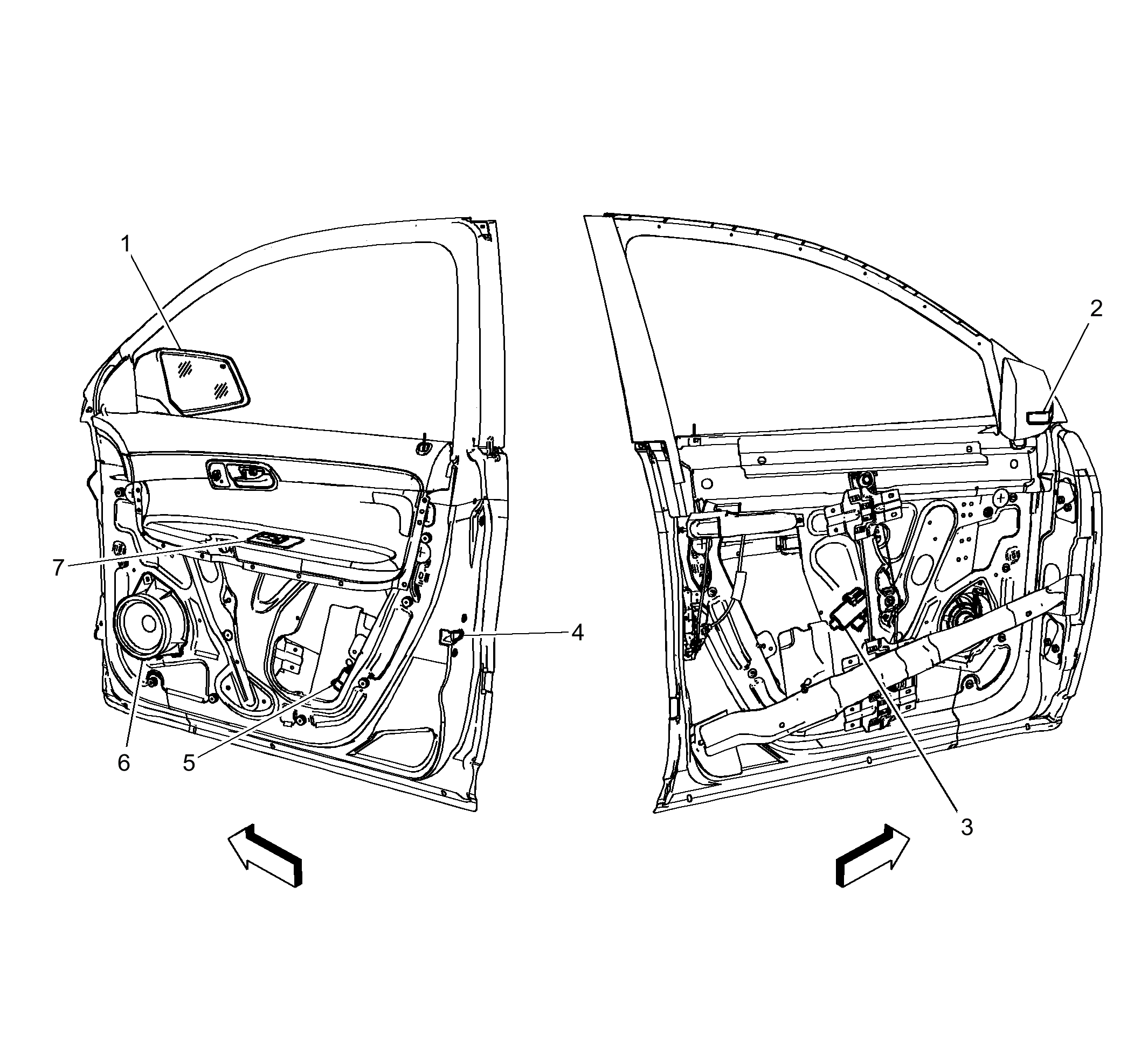

Fig 9: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Turn Signal Lamp (Part of Outside Rearview Mirror)
3	Window Motor - Passenger
4	Door Latch Assembly - Passenger
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Right
6	Speaker - RF Door
7	Window Switch - Passenger (AXA)

Fig 10: Locating LR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Window Motor - LR
6	Inflatable Restraint Side Impact Sensing Module (SISM) - LR

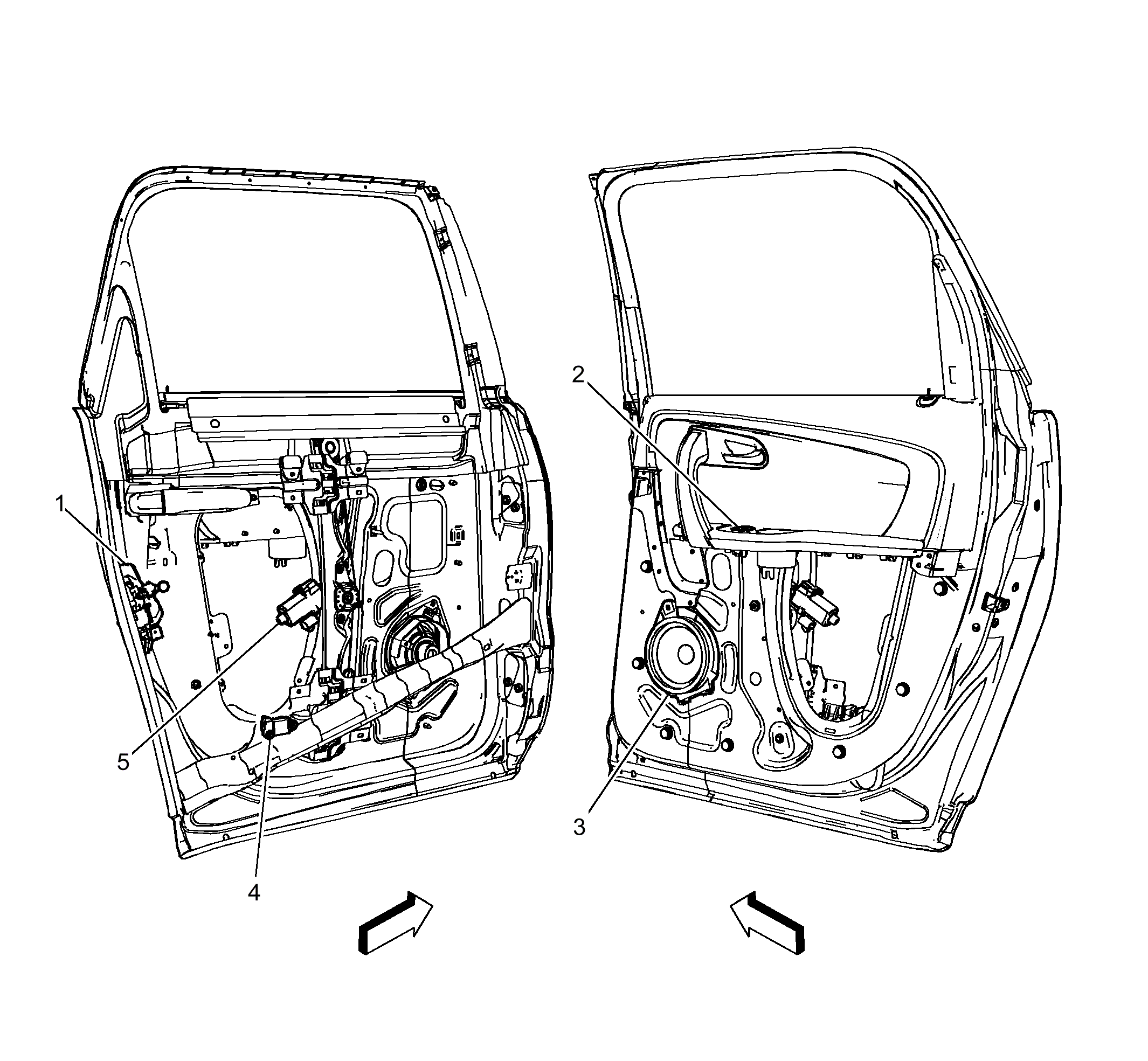

Fig 11: Locating RR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - RR
2	Window Switch - RR
3	Speaker - RR Door
4	Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5	Window Motor - RR

Fig 12: Identifying Left Rear Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Unit (VCU) (UE1)
2	Rear Parking Assist (RPA) Module (UD7)
3	Digital Radio Receiver (U2K)
4	Speaker - LR (UQA/UQ6/UQS)
5	Accessory AC/DC Power Control Module (KV1)
6	Liftgate Module (LGM) (E61)
7	G401
8	Liftgate Motor Assembly (E61)

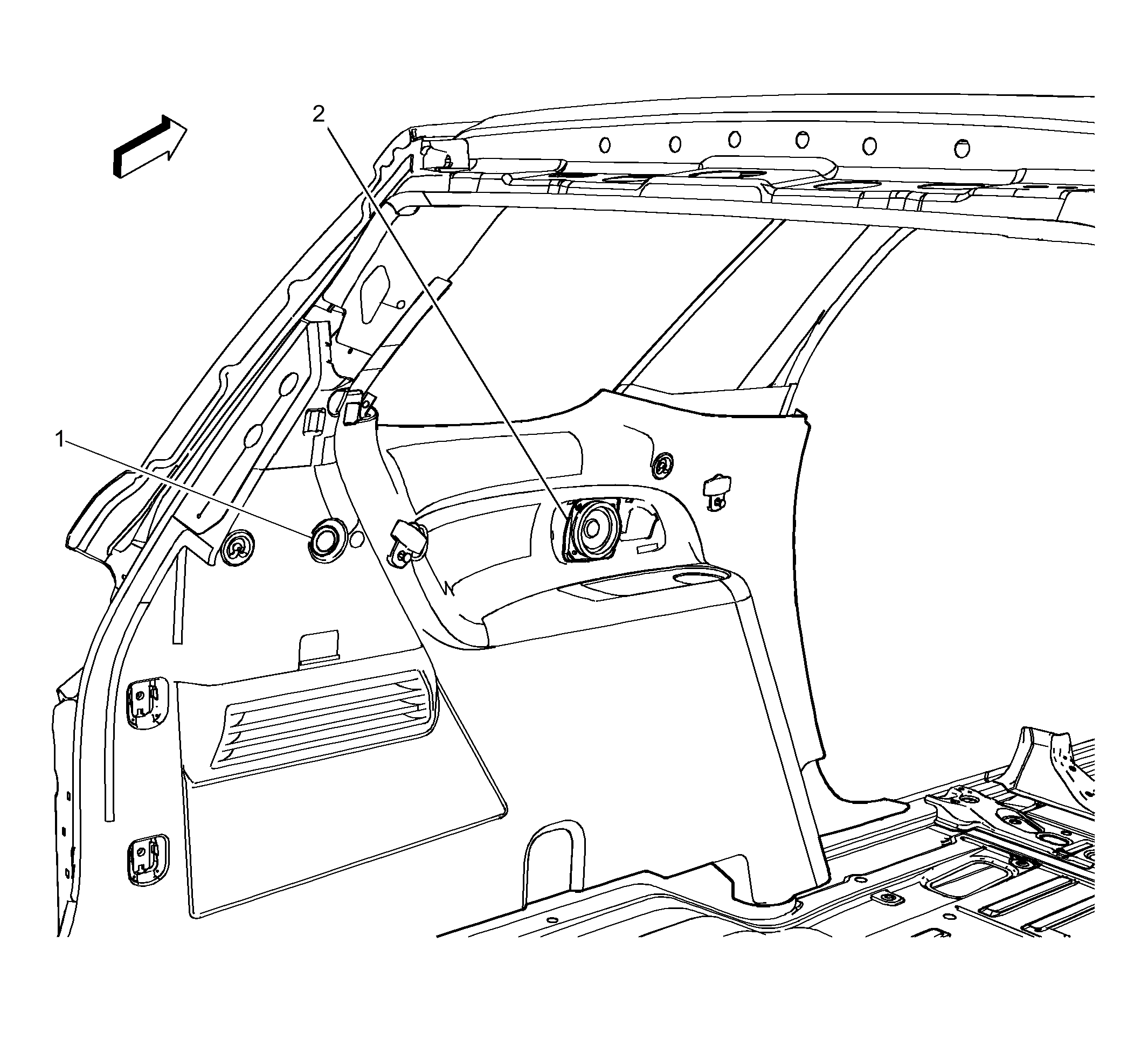

Fig 13: Identifying Left Rear Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Rear
2	LR Trim Panel
3	Speaker - LR

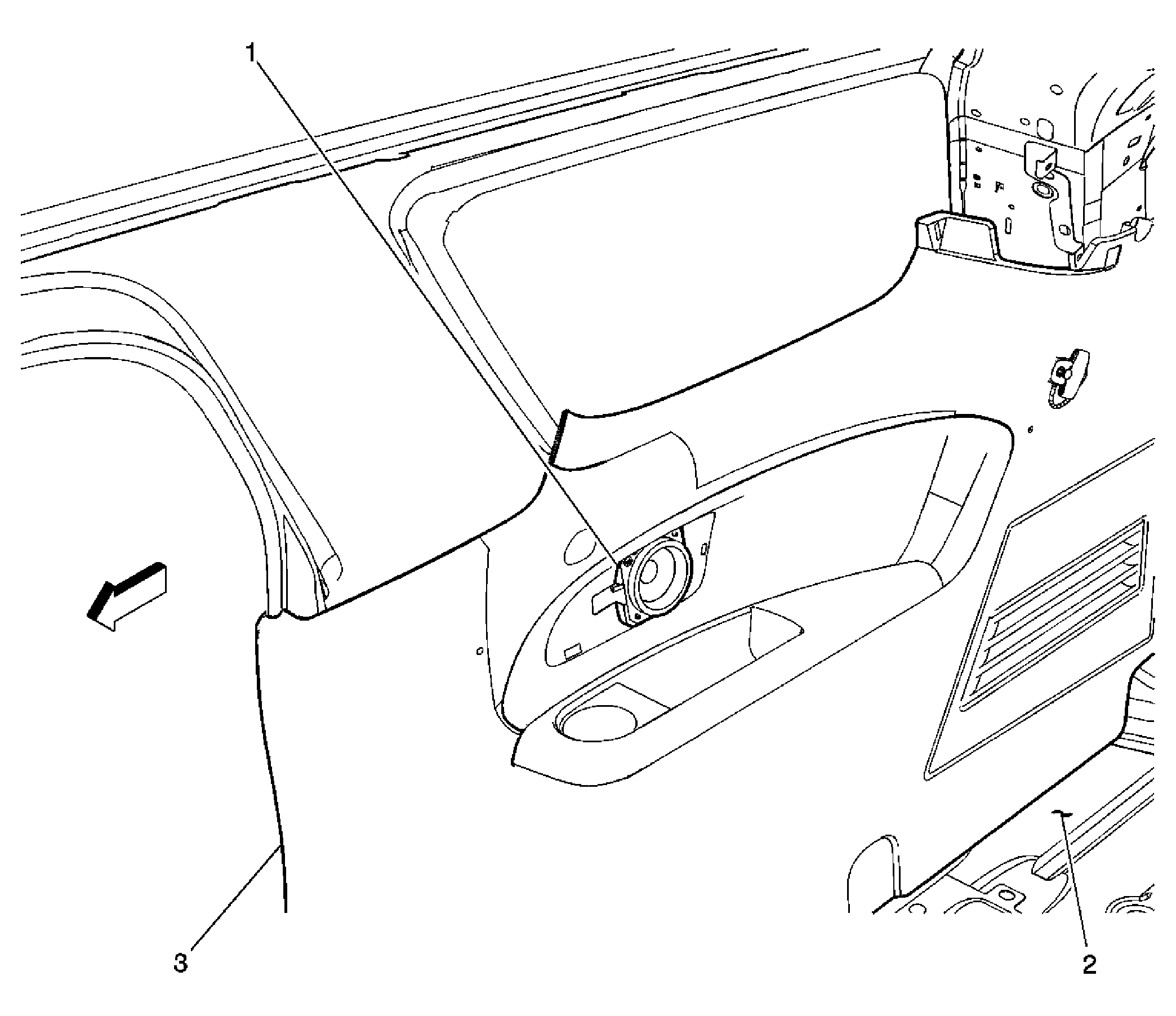

Fig 14: Identifying Right Rear Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR (UQA/UQ6/UQ8)
2	Rear Floor Panel
3	Trim Panel - RR
