Infrared Module (WDA+U42)

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

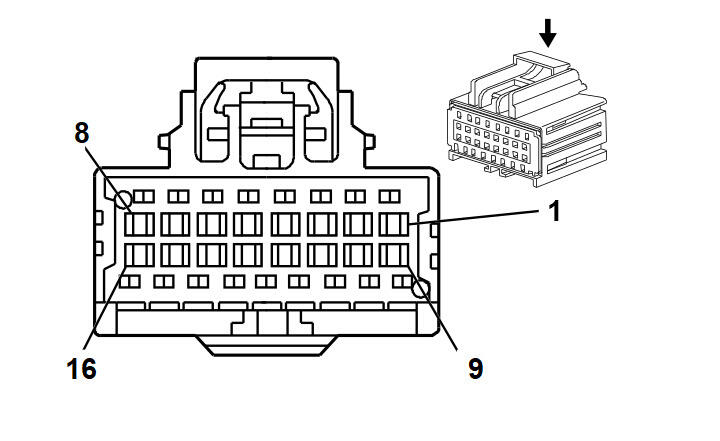

Fig 1: Infrared Module (WDA+U42) Connector End View

Courtesy of GENERAL MOTORS CORP.

Infrared Module (WDA+U42) Connector Parts Information

Connector Part Information

OEM: 7283-9078-80
Service: See Catalog
Description: 16-Way F Kaizen 0.64 Series (BN)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Infrared Module (WDA+U42) Connector Terminal Identification

Pin	Wire	Circuit No.	Function
1	0.35 L-BU	5826	Left DVD Audio Signal (+)
2	0.35 PU	6979	DVD Audio Common
3	0.35 WH	5828	Right DVD Audio Signal (+)
4	0.5 PK	5829	Infra Red Module Supply Voltage
5-7	-	-	Not Used
8	0.35 OG/BK	5831	Remote Infra Red Signal (+)
9	0.35 OG/BK	5329	Left Rear Low Level Audio Signal (+)
10	0.35 BN/WH	5331	Infra Red Audio Low Reference
11	0.35 PU/WH	5330	Right Infra Red Audio Signal
12	0.5 BK/WH	351	Ground
13-15	-	-	Not Used
16	0.35 TN/WH	5830	Remote Infra Red Signal (-)
