Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Front Lights (WDA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Headlamp - High Beam - Left
4	Headlamp - Low Beam - Left
5	Marker Lamp - LF
6	Fog Lamp - Left
7	Fog Lamp - Right
8	Marker Lamp - RF

Fig 2: Identifying Front Lights (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Turn Signal Lamp - RF
4	Headlamp - High Beam - Left
5	Turn Signal Lamp - LF
6	Headlamp - Low Beam - Left
7	Marker Lamp - LF
8	Fog Lamp - Left
9	Fog Lamp - Right
10	Marker Lamp - RF

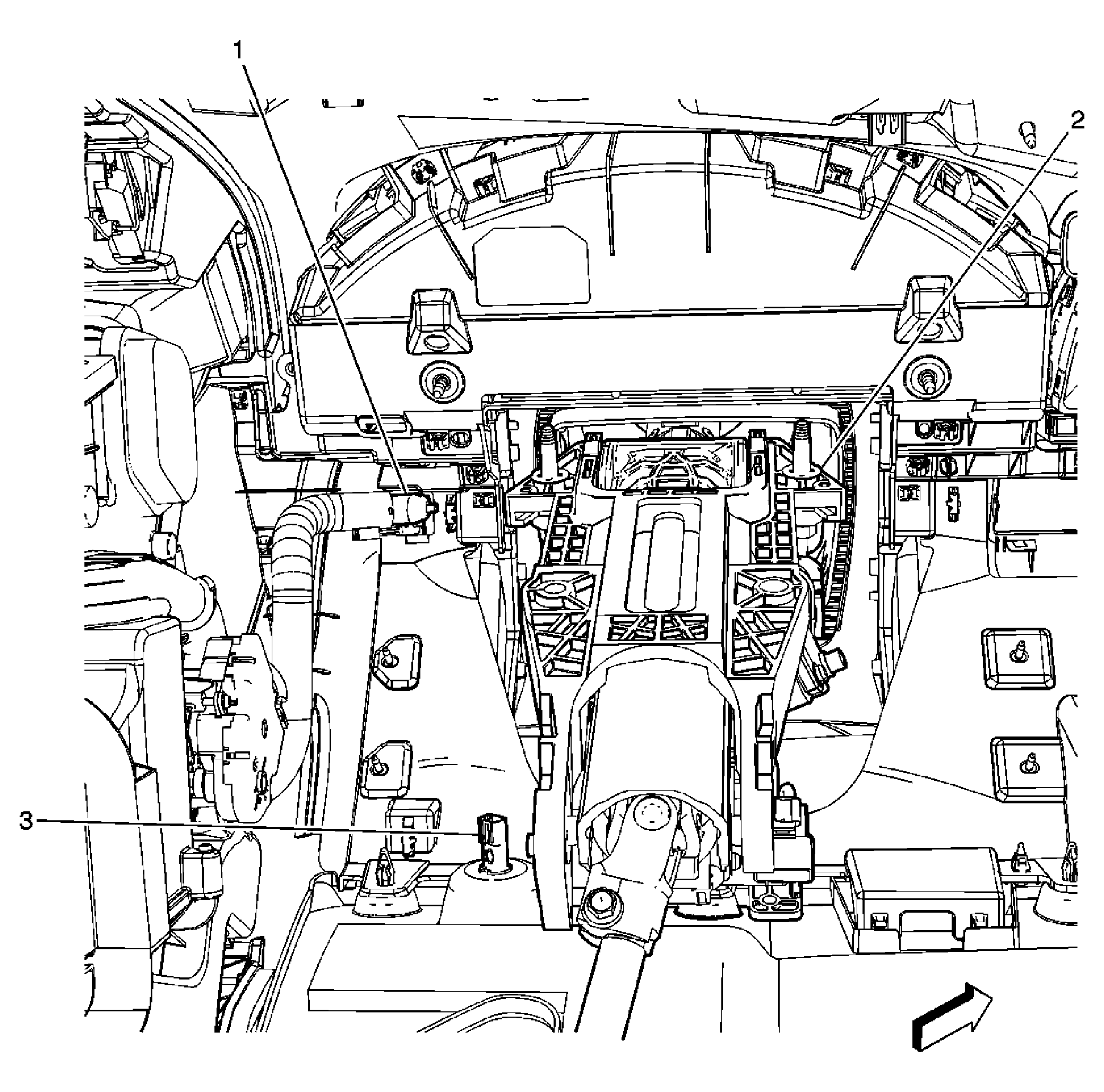

Fig 3: View Near The Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Steering Column
3	Courtesy Lamp - Left Footwell

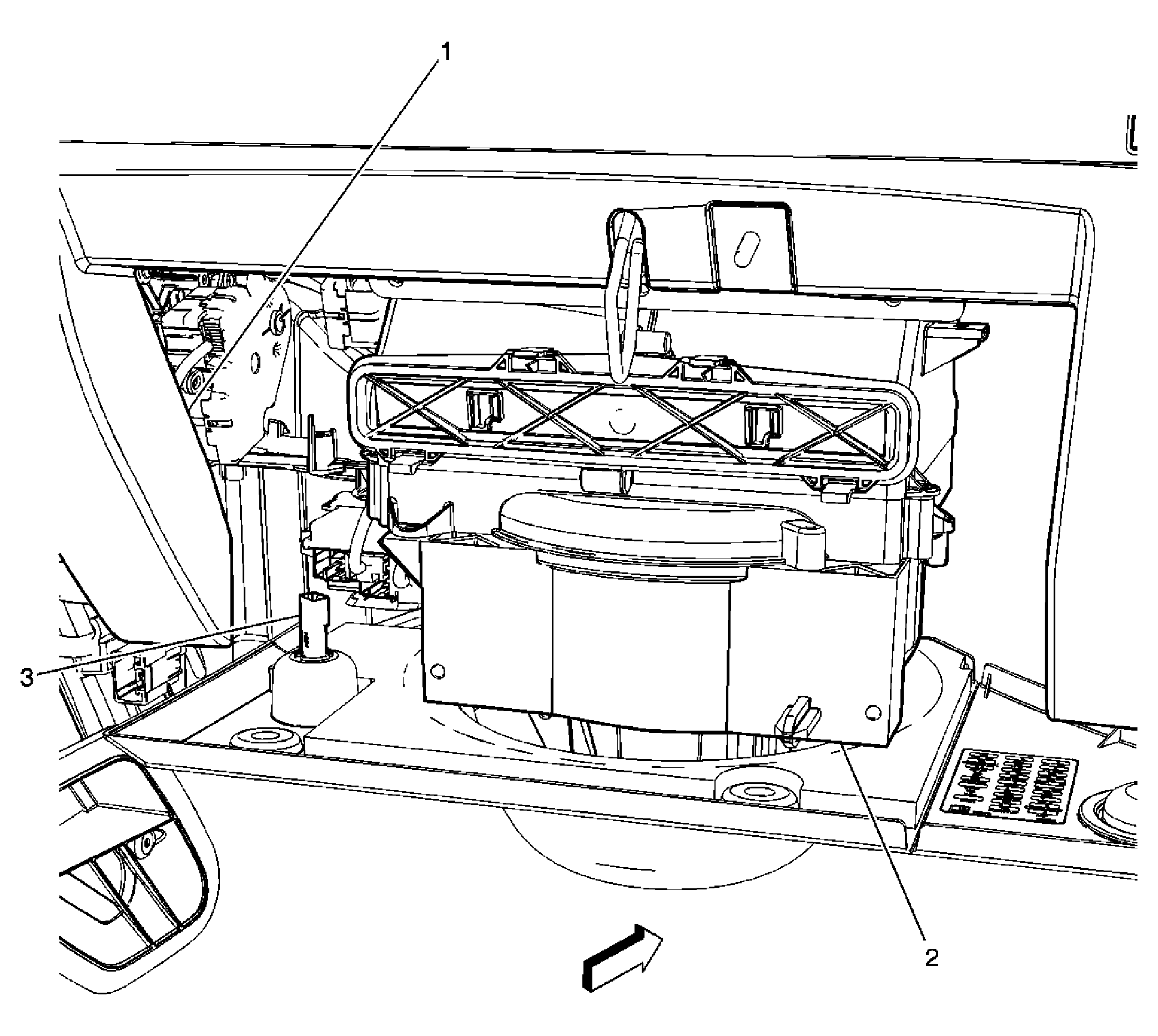

Fig 4: Identifying Components Behind I/P Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	HVAC Module Assembly
3	Courtesy Lamp - Right Footwell

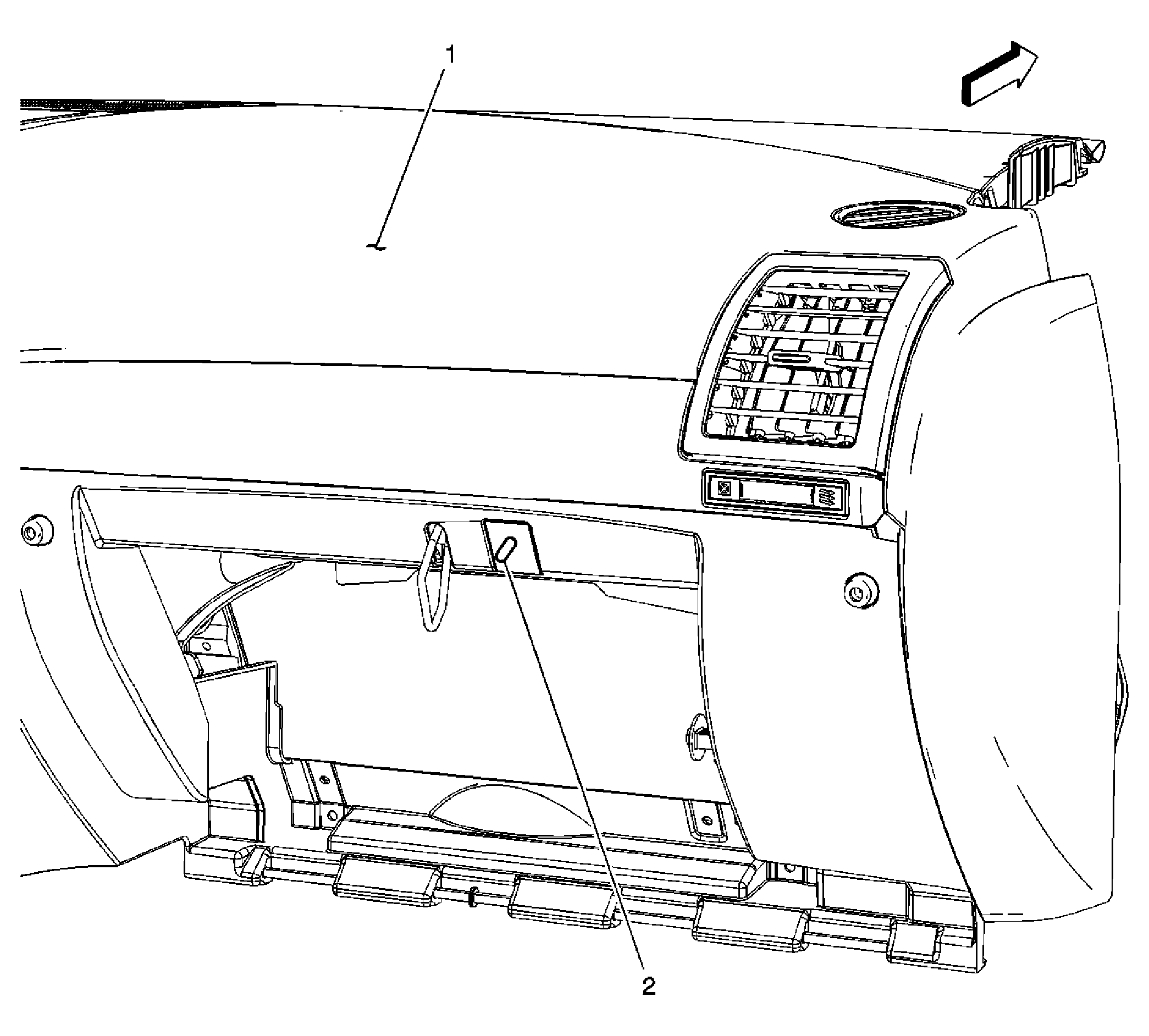

Fig 5: View Of I/P Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Compartment Lamp

Fig 6: Identifying I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Sunload Sensor (CJ2)/Ambient Light Sensor (C67)
5	I/P Trim
6	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7	HVAC Control Module
8	Heated Seat Switch - Passenger (KA1)
9	Auxiliary Power Outlet - I/P
10	I/P Switch Assembly
11	Heated Seat Switch - Driver (KA1)
12	Hazard Switch
13	Driver Information Center (DIC) Switch (UH9)

Fig 7: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tilt/Telescope Switch (N38)
2	Turn Signal/Multifunction Switch
3	Inflatable Restraint Steering Wheel Module Coil
4	Theft Deterrent Control Module
5	Steering Wheel Speed Position Sensor
6	Ignition Lock Cylinder Control Actuator
7	Ignition Switch
8	Tilt Motor
9	Telescope Actuator

Fig 8: View Below Drivers Side I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (UQA/UQG/UQS)
2	Body Control Module (BCM)
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor
5	G301

Fig 9: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Rear
2	Courtesy/Reading Lamp Center
3	Courtesy/Reading Lamp - Front
4	Front Overhead Console Assembly
5	Garage Door Opener (UG1)
6	Cellular Microphone (UE1)
7	Digital Video Disc (DVD) Player (U42)

Fig 10: View Of Overhead Console Components (C3U)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Front
2	Sunroof Shade Switch (C3U)
3	Console Flood Lamp
4	Garage Door Opener (UG1)
5	Sunroof Switch (C3U)

Fig 11: Identifying Shifter Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Shift Request Switch
2	PRNDL Lamp
3	X341
4	A/T Shift Lock Control Solenoid
5	Shift Lever Switch

Fig 12: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Memory Seat Switch (AG3)
3	Driver Door Module (DDM) (AXC/AXE)
4	Speaker - LF Door
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6	Door Latch Assembly - Driver
7	Window Motor - Driver
8	Turn Signal Lamp (Part of Outside Rearview )

Fig 13: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Turn Signal Lamp (Part of Outside Rearview Mirror)
3	Window Motor - Passenger
4	Door Latch Assembly - Passenger
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Right
6	Speaker - RF Door
7	Window Switch - Passenger (AXA)

Fig 14: Identifying Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Object Sensor - Right (E61)
2	Rear Window Defogger Grid
3	Rear Window Wiper Motor
4	Liftgate Object Sensor - Left (E61)
5	Courtesy Lamp - Liftgate - Left
6	Liftgate Switch - Interior (E61)
7	Liftgate Latch Assembly
8	Courtesy Lamp - Liftgate - Right
9	Liftgate Switch - Exterior (E61)

Fig 15: Identifying Rear Exterior Lighting (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Radio Antenna
3	Rear Window Defogger Grid
4	Back Up Lamp - Right
5	Tail Lamp Assembly - Right
6	Park Lamp - Right Rear
7	Object Sensor - Right Rear Corner (UD7)
8	Object Sensor - Right Rear Middle (UD7)
9	License Lamp - Left/License Lamp - Right
10	Object Sensor - Left Rear Middle (UD7)
11	Object Sensor - Left Rear Corner (UD7)
12	Park Lamp - Left Rear
13	) Tail Lamp Assembly - Left
14	Back Up Lamp - Left

Fig 16: Identifying Rear Of The Vehicle (W49/WDA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp - Left
2	License Lamp - Left
3	Center High Mounted Stop Lamp (CHMSL)
4	License Lamp - Right
5	Backup Lamp - Right
6	Marker Lamp - RR
7	Tail/Stop and Turn Signal Lamp - Right
8	Object Sensor - RR Corner (UD7)
9	Object Sensor - RR Middle(UD7)
10	Object Sensor - LR Middle (UD7)
11	Object Sensor - LR Corner (UD7)
12	Tail/Stop and Turn Signal Lamp - Left
13	Marker Lamp - LR
