Wiper Motor Module Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

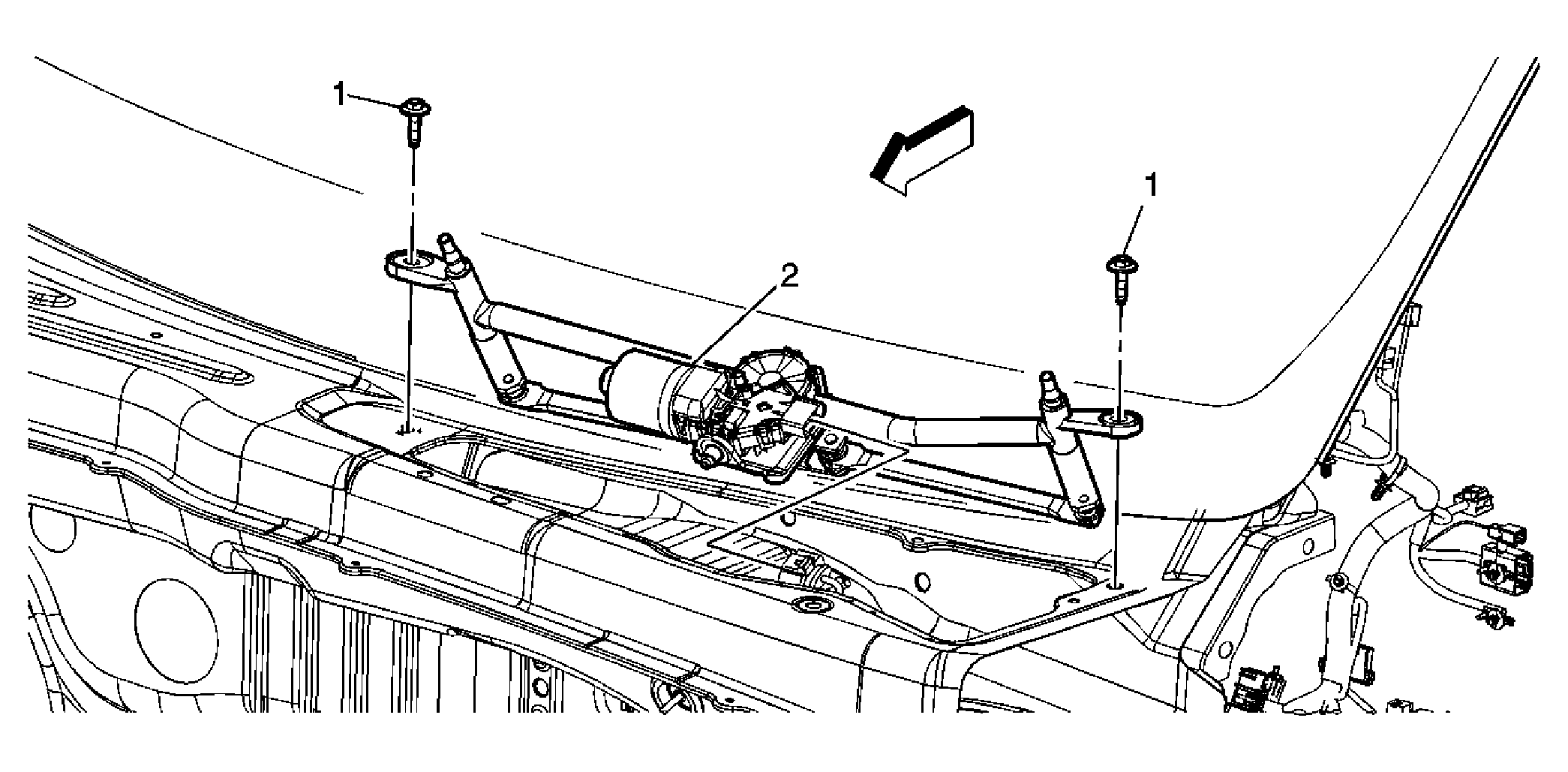

Fig 1: Identifying Windshield Wiper Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper Module Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 22 N.m (16 lb ft)
2	Windshield Washer System Module Assembly Tip: Raise the rearward edge of the windshield washer module assembly out of the plenum panel. Upon installation of the windshield washer module, connect the I/P harness to the wiper module. Turn the module 180°, insert the transmission into the plenum then align the grommets on the module to the bolt holes in the upper plenum.

Callout

Component Name

Preliminary Procedures

Remove the wiper arms. Refer to Wiper Arm Replacement .
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Windshield Wiper Module Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 22 N.m (16 lb ft)

Windshield Washer System Module Assembly
Tip:

Raise the rearward edge of the windshield washer module assembly out of the plenum panel.
Upon installation of the windshield washer module, connect the I/P harness to the wiper module.
Turn the module 180°, insert the transmission into the plenum then align the grommets on the module to the bolt holes in the upper plenum.
