Vehicle Communication Interface Module (VCIM) C1
Vehicle Communication Interface Module (VCIM) C1 Connector Part Information
Connector Part Information
|
Terminal Part Information
|

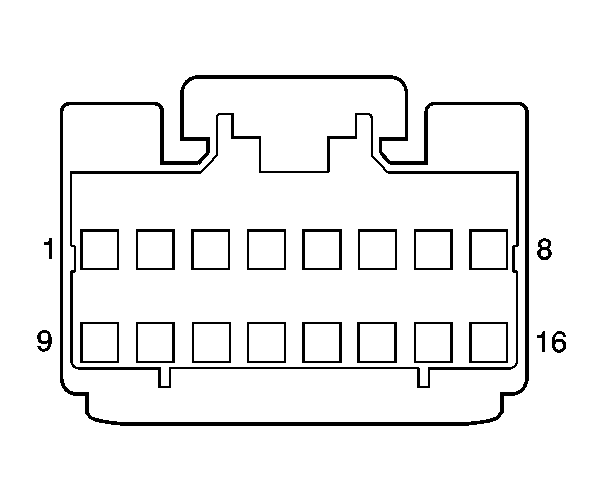

Vehicle Communication Interface Module (VCIM) C1 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | BN/WH | 2517 | Keypad Red LED Signal (UE1) |
| 3 | YE/BK | 2516 | Keypad Green LED Signal (UE1) |
| 4-5 | - | - | Not Used |
| 6 | L-GN/BK | 2515 | Keypad Supply Voltage (UE1) |
| 7 | - | - | Not Used |
| 8 | BK/WH | 851 | Ground (UE1) |
| 9-10 | - | - | Not Used |
| 11 | D-GN/WH | 2514 | Keypad Signal (UE1) |
| 12-14 | - | - | Not Used |
| 15 | RD/WH | 1340 | Battery Positive Voltage |
| 16 | - | - | Not Used |
