Ground Distribution Schematics

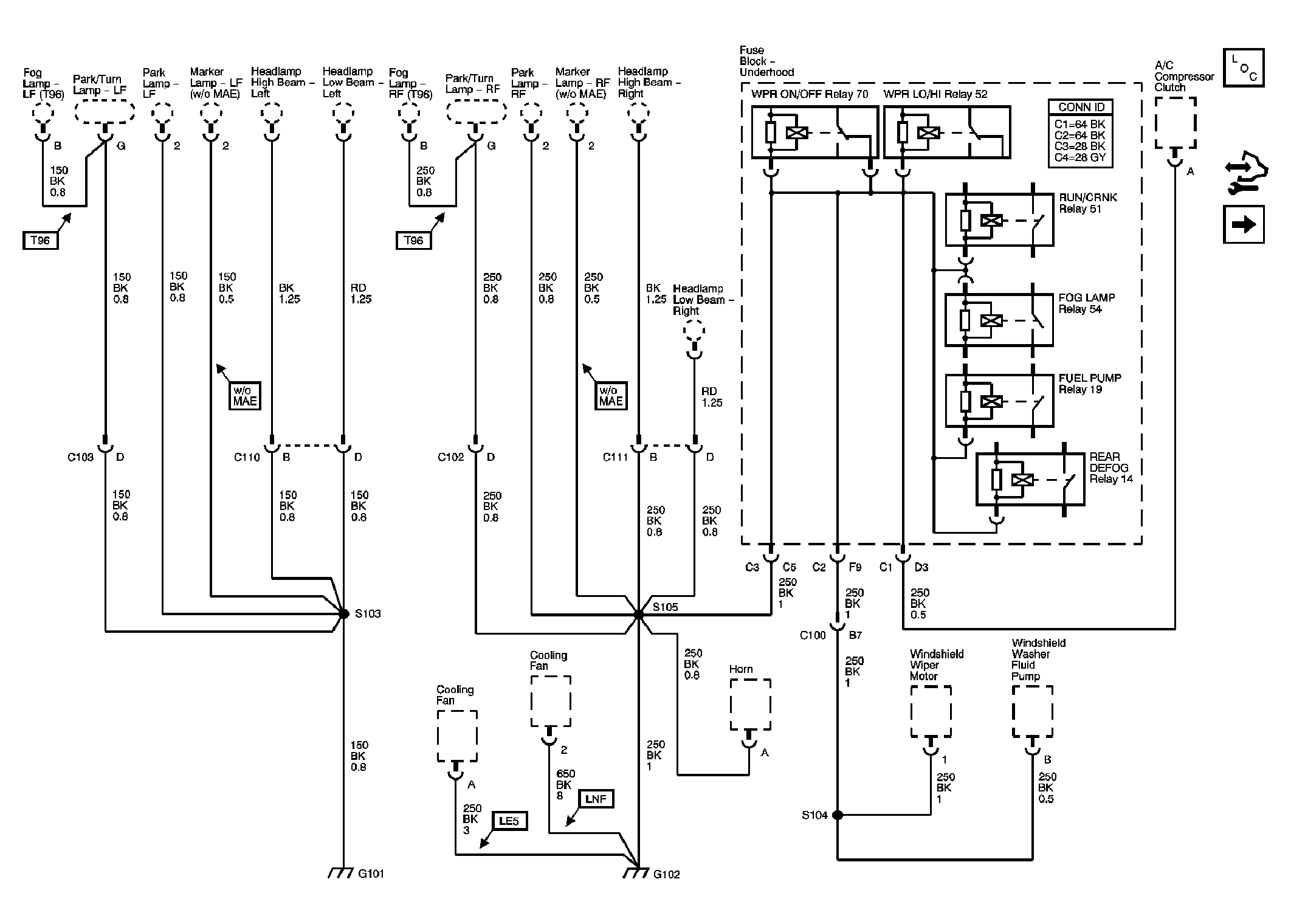

Fig 1: G101 and G102

Courtesy of GENERAL MOTORS CORP.

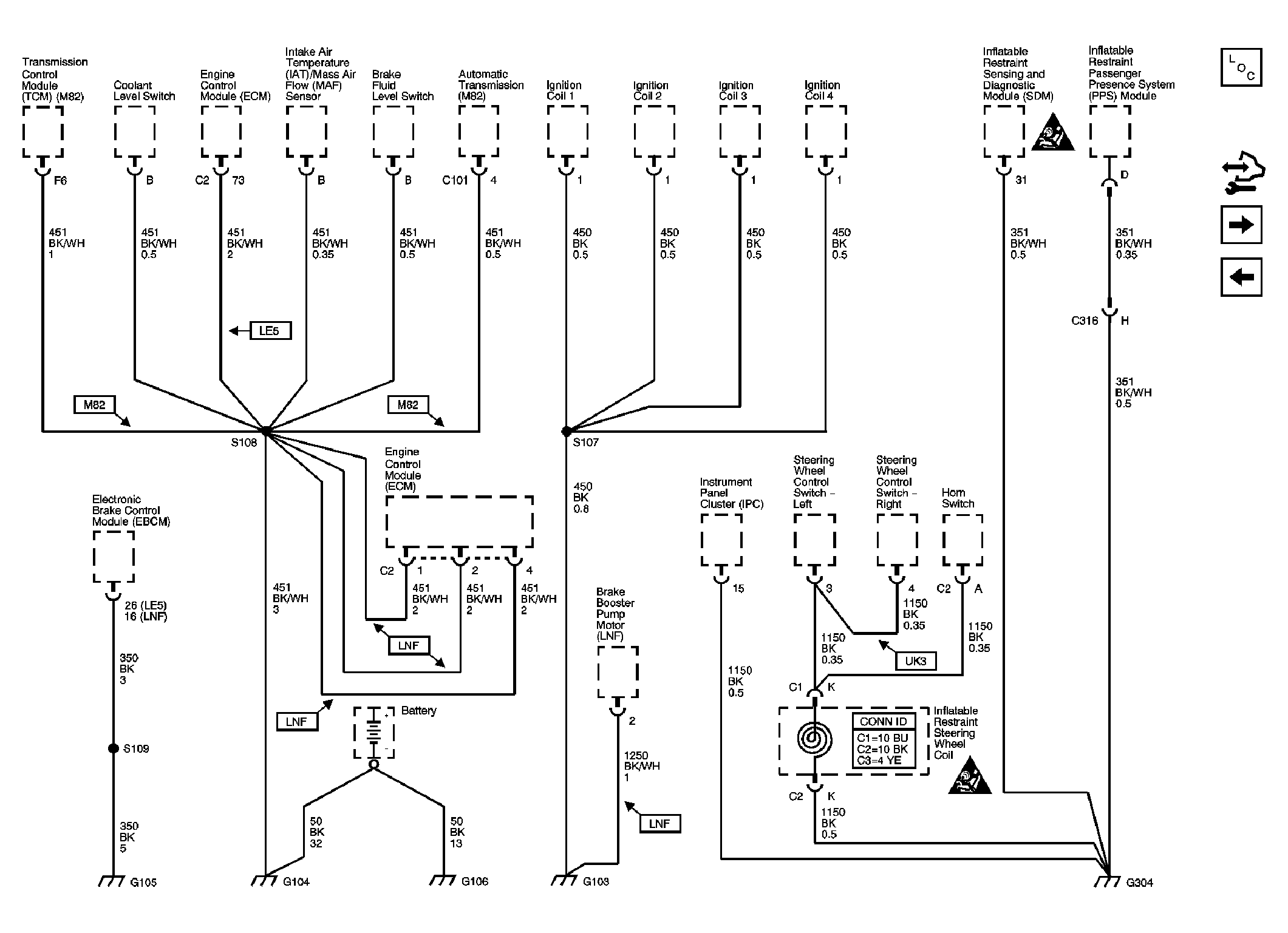

Fig 2: G103, G104, G105, G106 and G304

Courtesy of GENERAL MOTORS CORP.

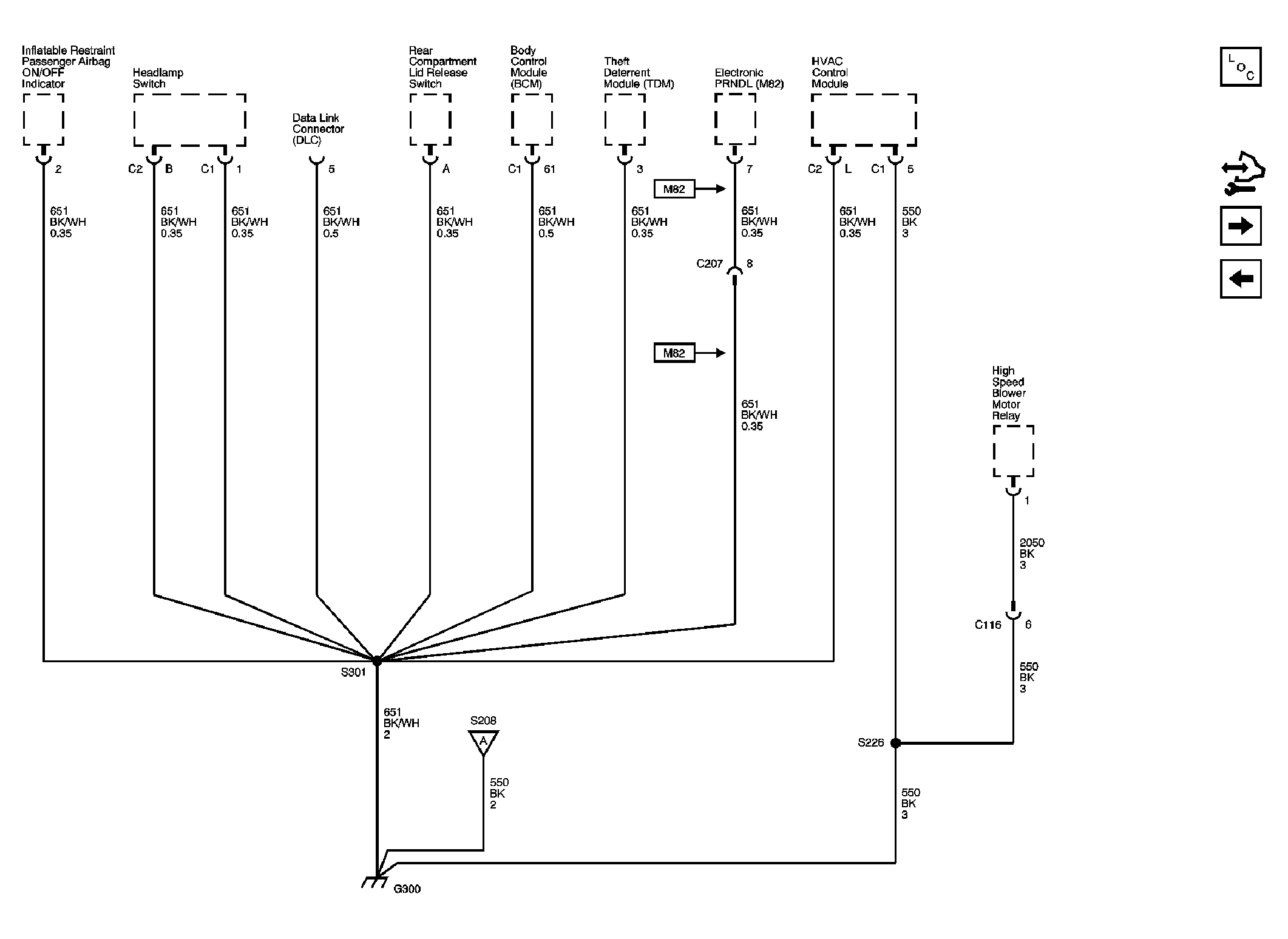

Fig 3: G300 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

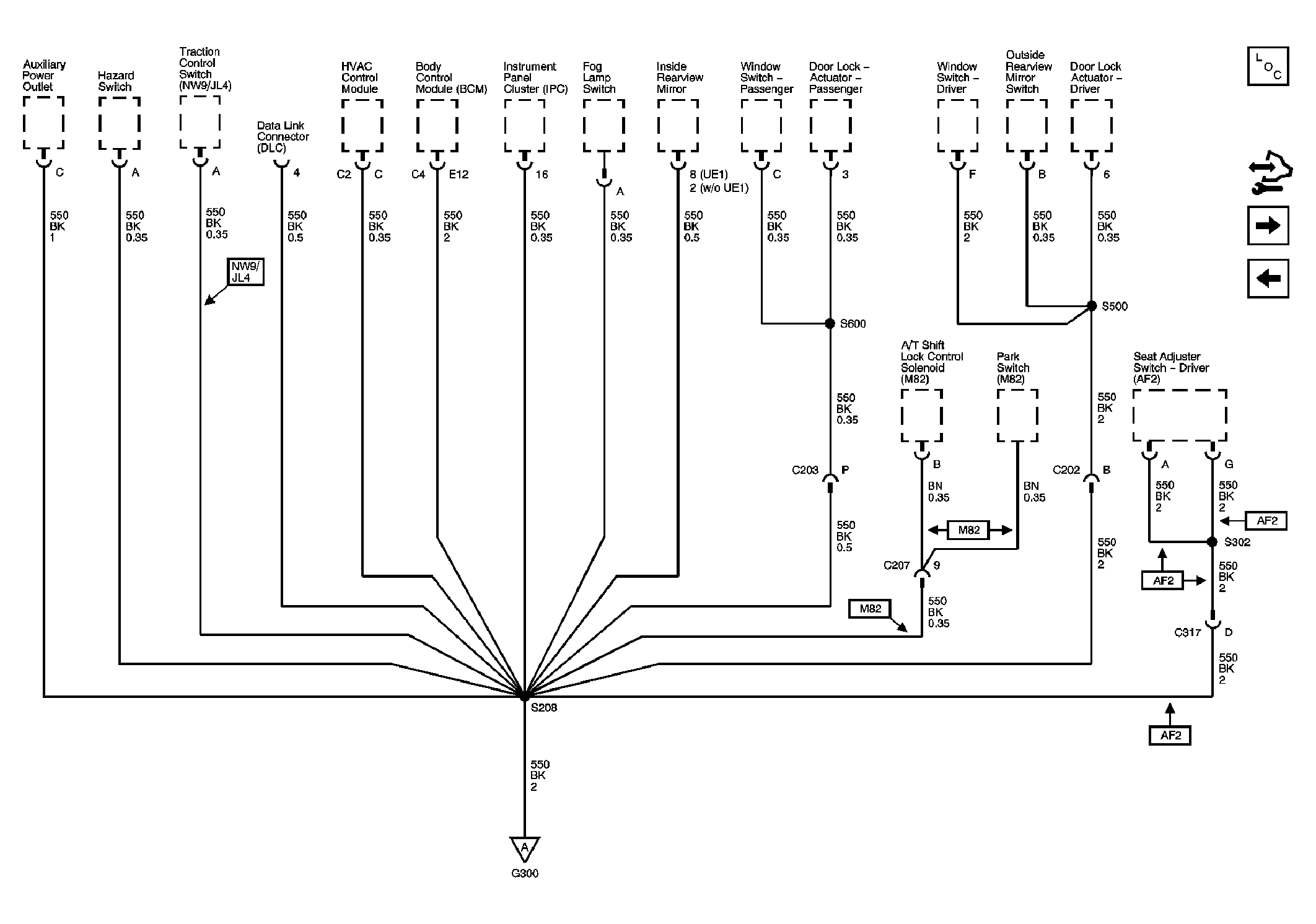

Fig 4: G300 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

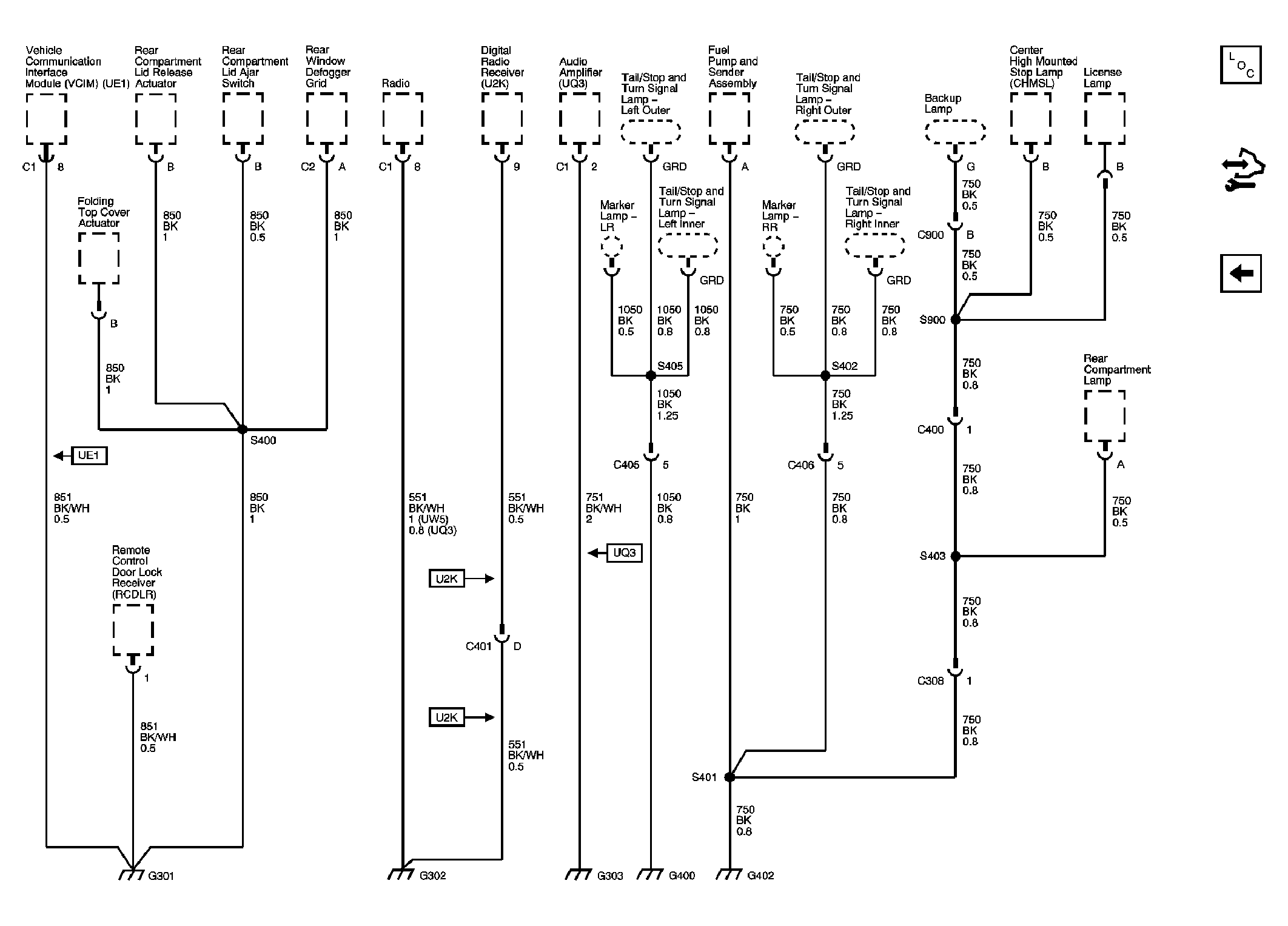

Fig 5: G301, G302, G303, G400 and G402

Courtesy of GENERAL MOTORS CORP.
