Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

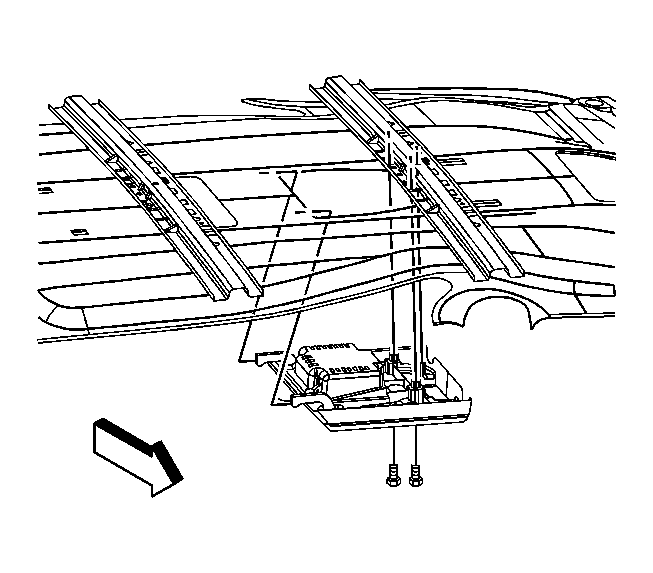

Fig 1: Removing/Installing DVD Player

Courtesy of GENERAL MOTORS CORP.

Position the DVD player into the vehicle.
Connect the electrical connectors to the DVD player.
Push the DVD player upward engaging the clips in order to secure the DVD player to the vehicle.

NOTE: Refer to Fastener Notice .

Install the screws securing the DVD player to the roof.
Tighten: Tighten the screws to 2 N.m (18 lb in).
Check for proper operation of the DVD player.
