UNDERHOOD Fuse Block: Notes

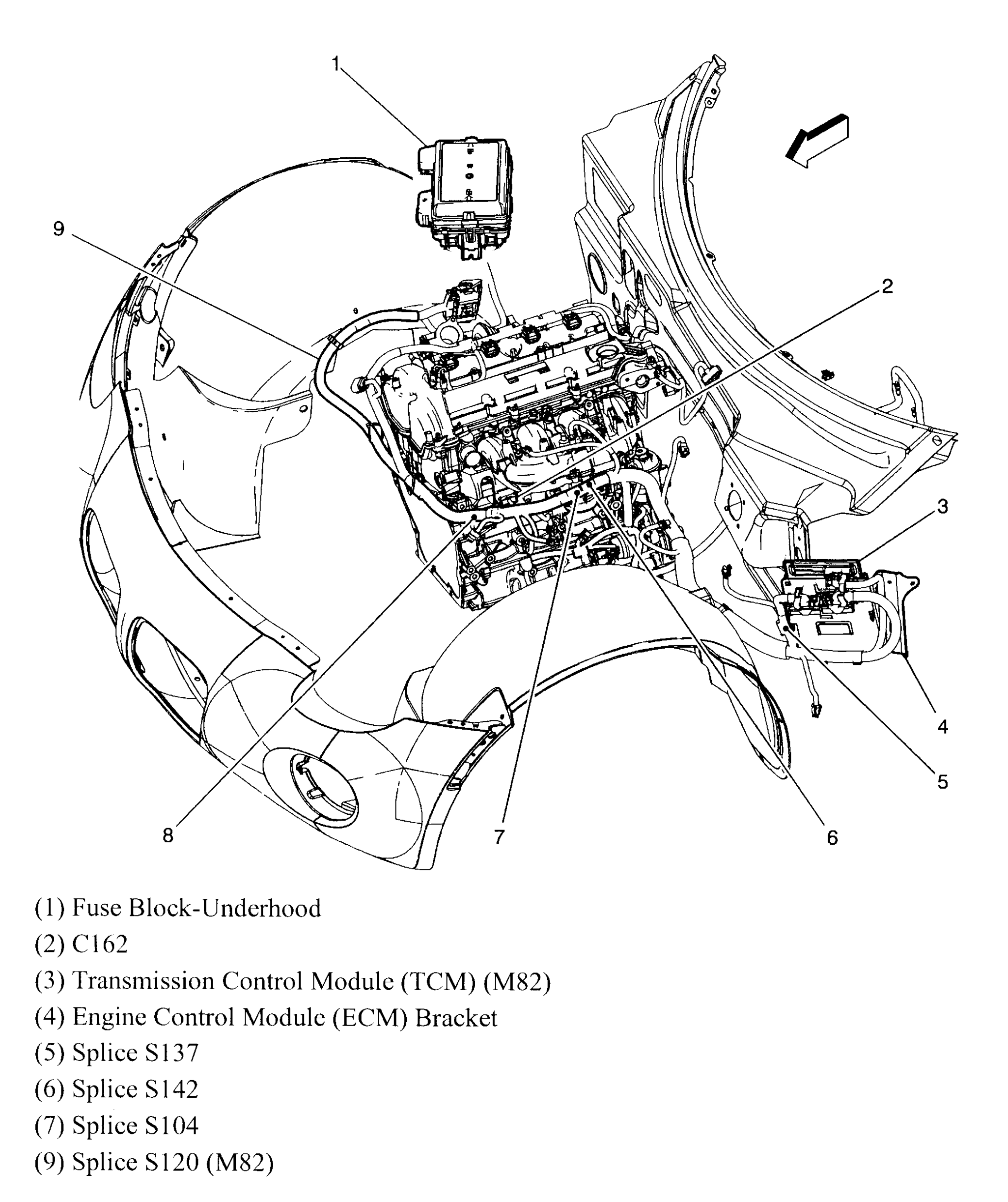

Underhood fuse block is located on passenger's side in the engine compartment. See Fig 1.

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

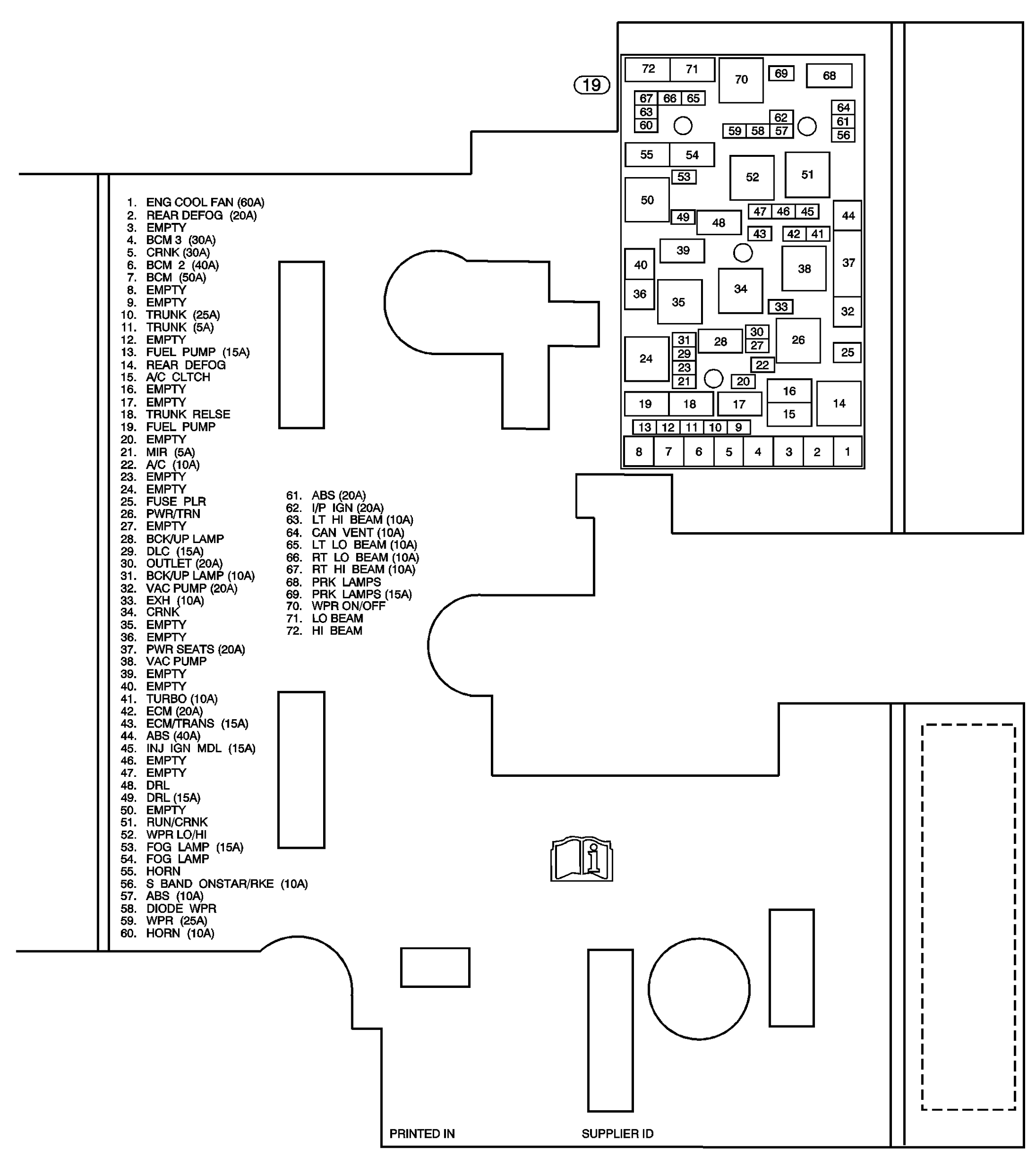

Fig 2: Locating Underhood Fuse Block (LE5 w/MA5)

Courtesy of GENERAL MOTORS CORP.

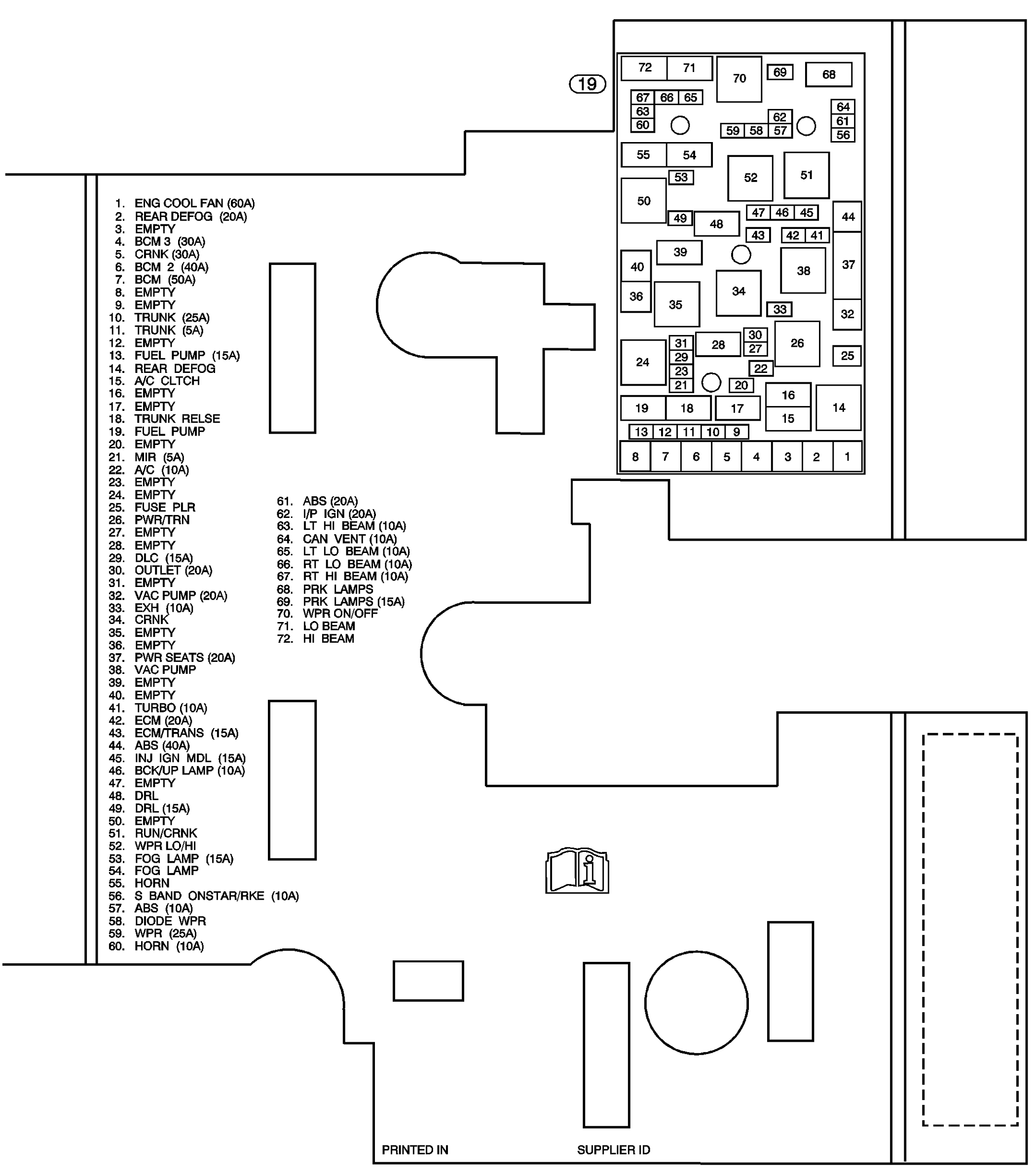

Fig 3: Locating Underhood Fuse Block (LE5 w/M82)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating Underhood Fuse Block (LNF w/MA5)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Underhood Fuse Block (LNF w/M82)

Courtesy of GENERAL MOTORS CORP.
