Inflatable Restraint Steering Wheel Module Coil Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

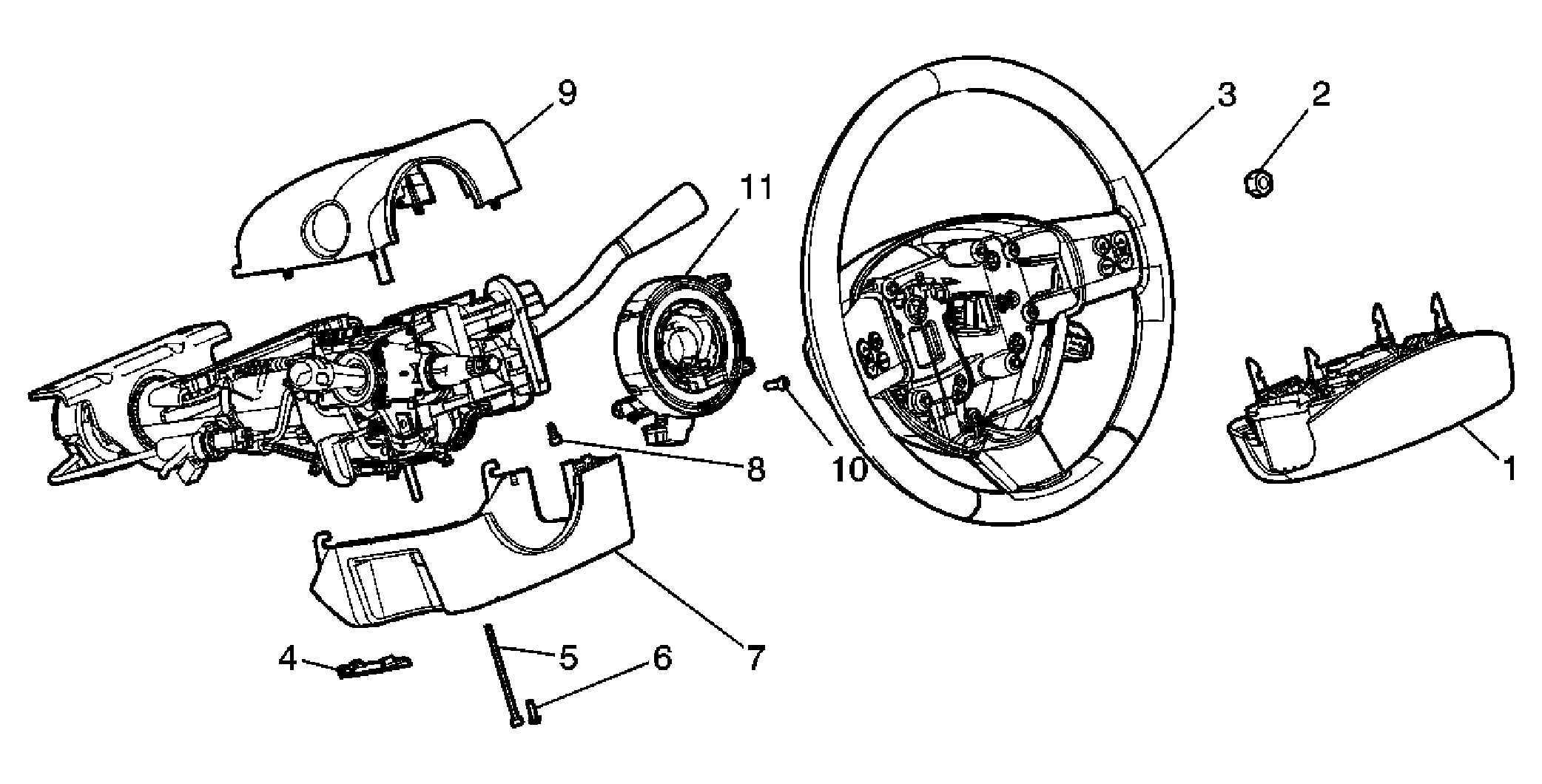

Fig 1: Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Steering Wheel Inflatable Restraint Module Refer to Inflatable Restraint Steering Wheel Module Replacement .
2	Steering Wheel Nut NOTE: Refer to Fastener Notice . Tighten: 40 N.m (30 lb ft)
3	Steering Wheel Refer to Steering Wheel Replacement .
4	Steering Column Lower Shroud Cover
5	Steering Column Upper Shroud Bolt Tighten: 3.5 N.m (31 lb in)
6	Steering Column Lower Shroud Screw Tighten: 1.5 N.m (13 lb in)
7	Steering Column Lower Shroud Refer to Steering Column Trim Covers Replacement .
8	Steering Column Upper Shroud Screw Tighten: 3.5 N.m (31 lb in)
9	Steering Column Upper Shroud Refer to Steering Column Trim Covers Replacement .
10	Inflatable Restraint Steering Wheel Module Coil Screw Tighten: 2.5 N.m (22 lb in)
11	Inflatable Restraint Steering Wheel Module Coil Tip: Center the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .
