Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Antenna Base & Cables
    GM853340Courtesy of GENERAL MOTORS CORP.
  1. Place the antenna assembly on the roof opening.
    2. NOTE: Refer to Fastener Notice .

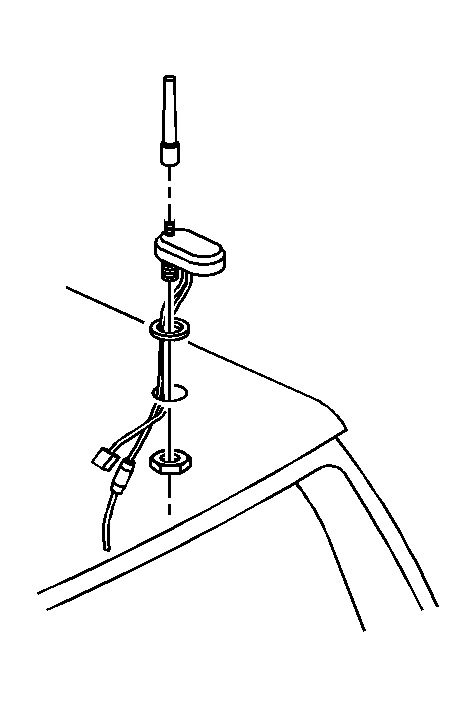

    Fig 2: Identifying Retaining Nut Of Antenna Assembly
    GM838978Courtesy of GENERAL MOTORS CORP.
  2. Tighten the retaining nut.

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  3. Connect the antenna cables
  4. Install the headliner. Refer to Headlining Trim Panel Replacement .
