Video System Schematics (UMS)

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

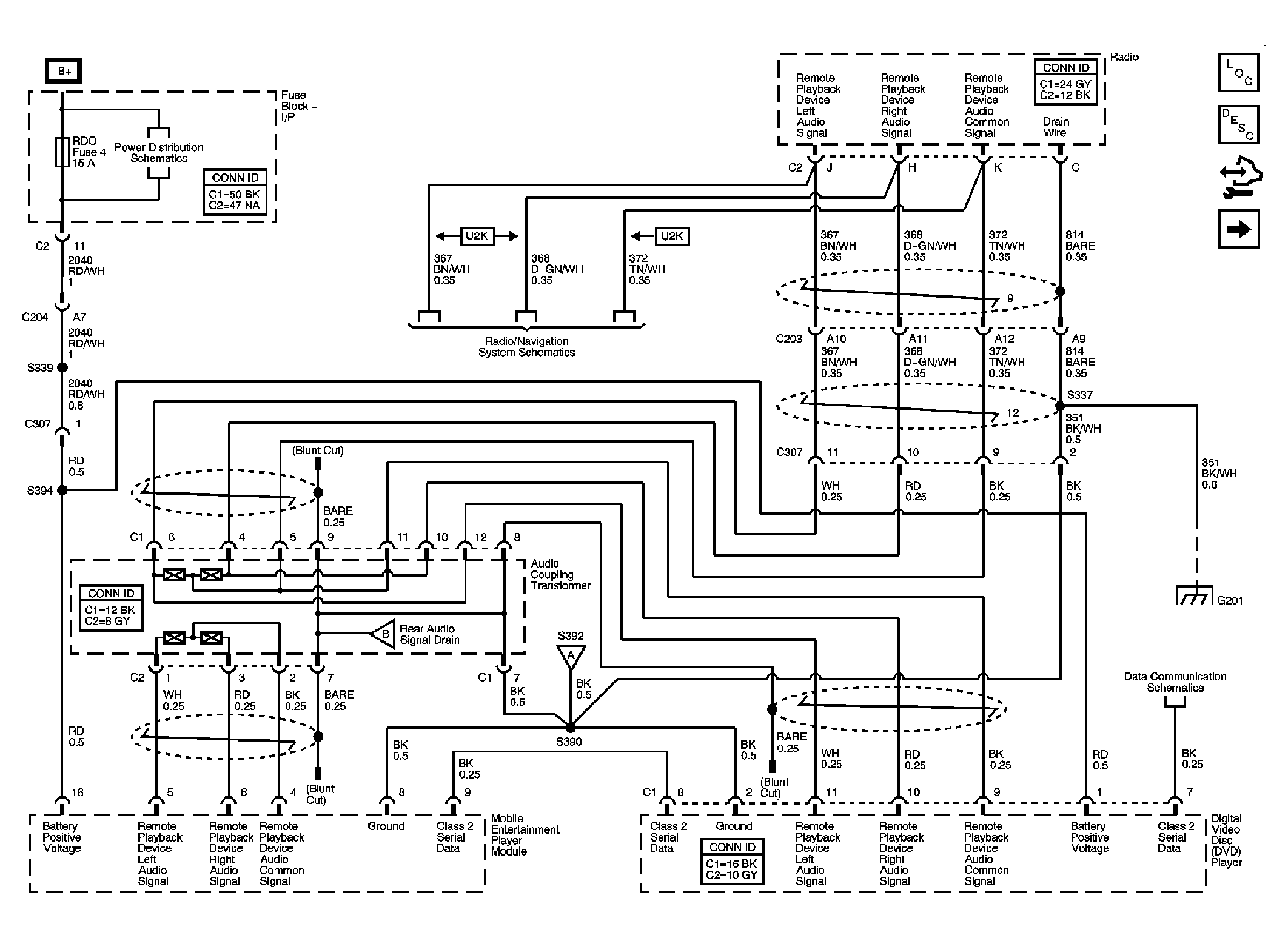

Fig 1: Video System Schematic (w/UMS)

Courtesy of GENERAL MOTORS CORP.

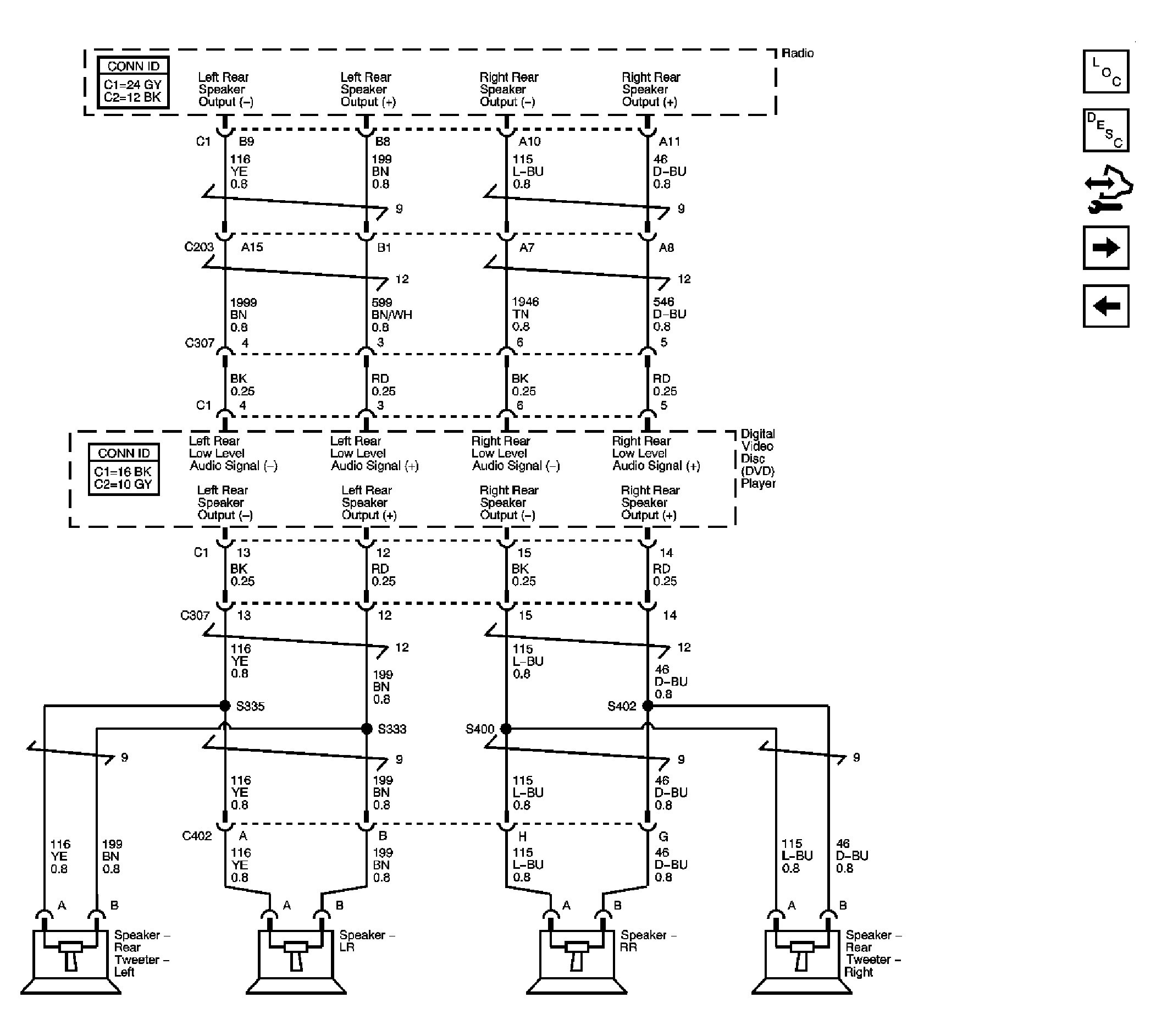

Fig 2: Rear Audio Output

Courtesy of GENERAL MOTORS CORP.

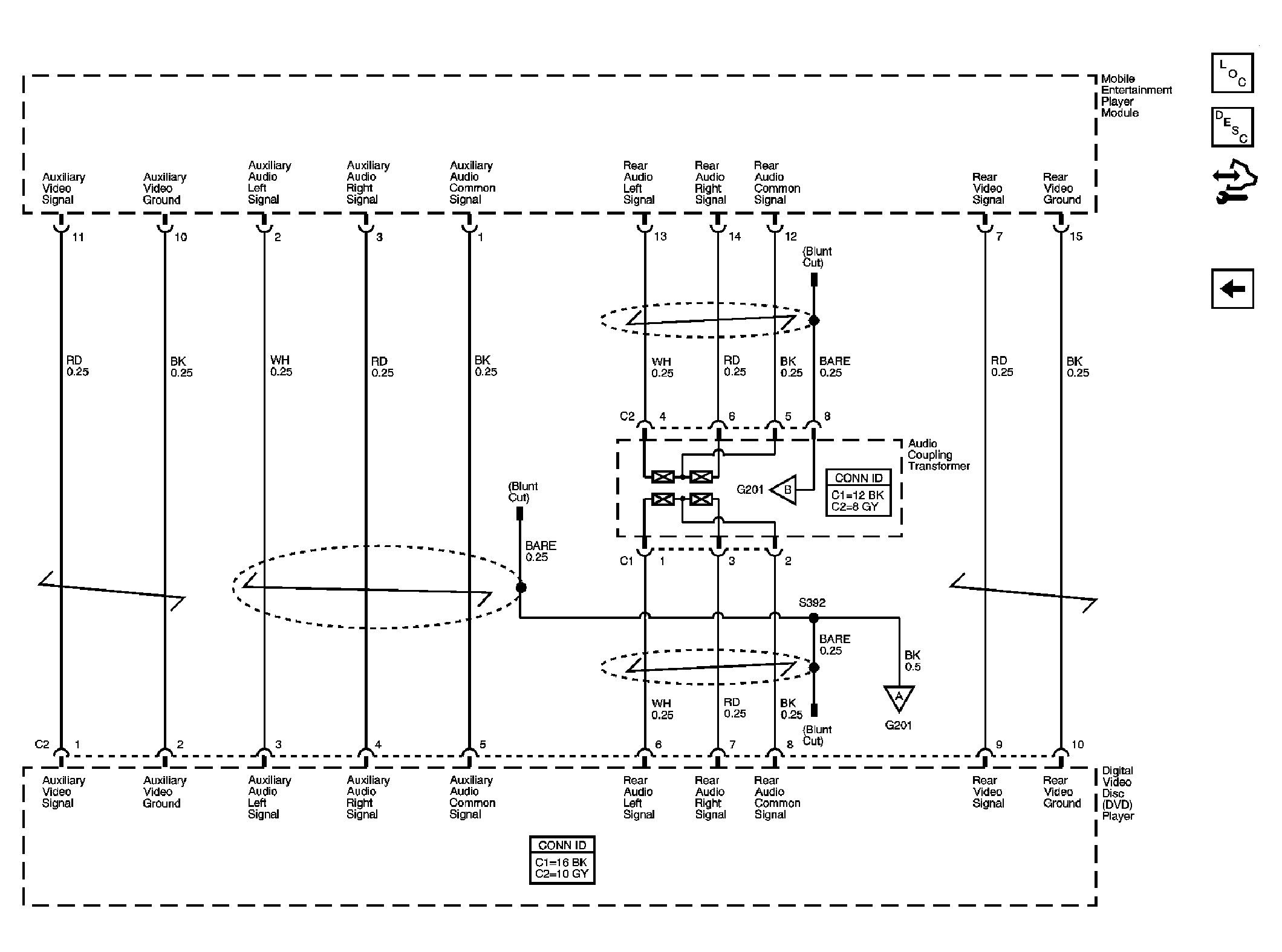

Fig 3: Auxiliary and Rear Audio and Video Signals

Courtesy of GENERAL MOTORS CORP.
