Inflatable Restraint Front End Sensor Replacement
WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.
Front End Sensor Replacement

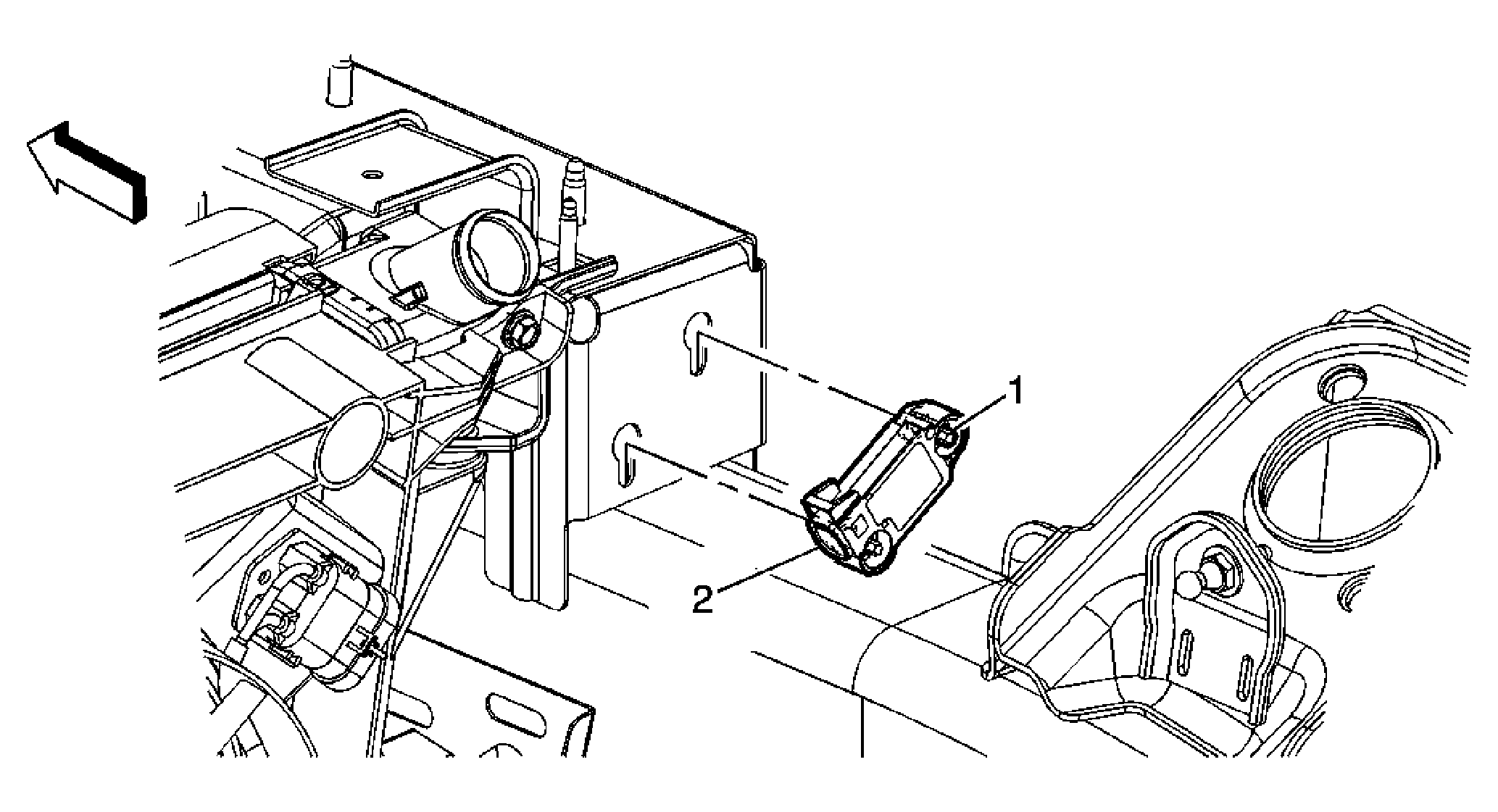

| Callout | Component Name |
|---|---|
|
CAUTION:
Do not strike or jolt the inflatable restraint front end sensor. Before applying power to the front end sensor make sure that it is securely fastened. Failure to observe the correct installation procedure could cause SIR deployment, personal injury, or unnecessary SIR system repairs.
CAUTION:
Refer to SIR Caution
.
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Stud, Inflatable Restraint Front End Discriminating Sensor (Qty: 2) Tip: Loosen the studs and slide the module up and out of the keyhole slots. Tighten: 8 N.m (71 lb in) |
| 2 | Sensor Assembly, Inflatable Restraint Front End Discriminating |
