Mirror Replacement

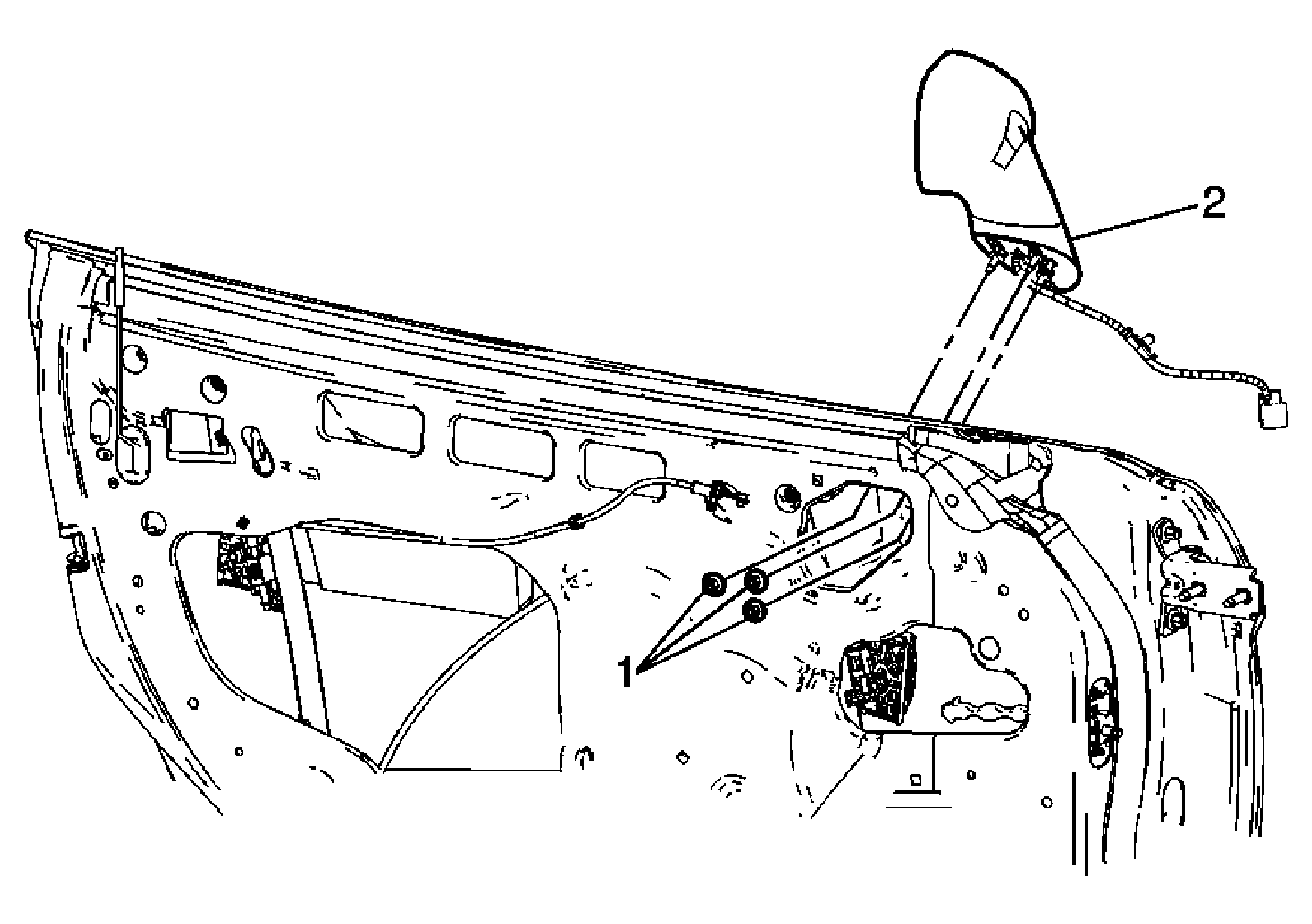

Fig 1: Side Mirror

Courtesy of GENERAL MOTORS CORP.

Mirror Replacement

Callout	Component Name
Preliminary Procedure Remove the door trim panel. Refer to Door Trim Panel Replacement . Fully lower the door window before removing the trim panel.
1	Mirror Outside Rearview Nut (Qty: 3) NOTE: Refer to Fastener Notice . Tip: Disconnect the mirror electrical connector. Tighten: 10 N.m (89 lb in)
2	Outside Rearview Mirror Assembly

Callout

Component Name

Preliminary Procedure

Mirror Outside Rearview Nut (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip: Disconnect the mirror electrical connector.

Tighten: 10 N.m (89 lb in)

Outside Rearview Mirror Assembly
