Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Ambient Light Sensor
3	Inflatable Restraint Passenger Airbag On/Off Indicator
4	Fog Lamp Switch (T96)
5	I/P Dimmer Switch
6	Traction Control Switch (if equipped)
7	HVAC Control Module
8	Inflatable Restraint I/P Module
9	Rear Compartment Lid Release Switch
10	Radio/Navigation Unit (UE1/U2K)
11	Park Brake Lever
12	Auxiliary Power Outlet
13	Steering Wheel - Controls - Right
14	Steering Wheel - Controls - Left
15	Inflatable Restraint Steering Wheel Module
16	Instrument Panel Cluster (IPC)

Fig 2: Lighting Systems Components (Left Side of I/P)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Data Link Connector (DLC)
4	Data Link Connector (DLC) Resistor
5	Clutch Pedal Position (CPP) Switch
6	Clutch Start Switch
7	C165
8	C166

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Turn Signal/Multifunction Switch C2
3	Turn Signal/Multifunction Switch C1
4	Inflatable Restraint Steering Wheel Module Coil C3
5	Inflatable Restraint Steering Wheel Module Coil C2
6	Ignition Switch
7	Windshield Wiper/Washer Switch Connector
8	Windshield Wiper/Washer Switch

Fig 4: Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone (UE1)
2	Inside Rearview Mirror
3	Onstar Button Assembly (UE1)
4	Inside Rearview Mirror Lamps
5	Antenna
6	Cellular and Navigational Antenna (U2K/UE1)
7	Remote Control Door Lock Receiver (RCDLR)
8	Vehicle Communication Interface Module (VCIM)

Fig 5: Lighting Systems Components (Front Fascia Lighting)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Marker Lamp - LF
3	Park/Turn Lamp - LF
4	Fog Lamp - LF (T96)
5	Fog Lamp - RF (T96)
6	Park/Turn Lamp - LF
7	Marker Lamp - RF
8	Headlamp - Right

Fig 6: Lighting Systems Components (Rear Fascia Lighting)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid C2
2	Center High Mounted Stop Lamp (CHMSL)
3	Tail/Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	License Lamp
6	Backup Lamp - Left
7	Tail/Stop and Turn Signal Lamp - Left
8	Defogger Grid C1

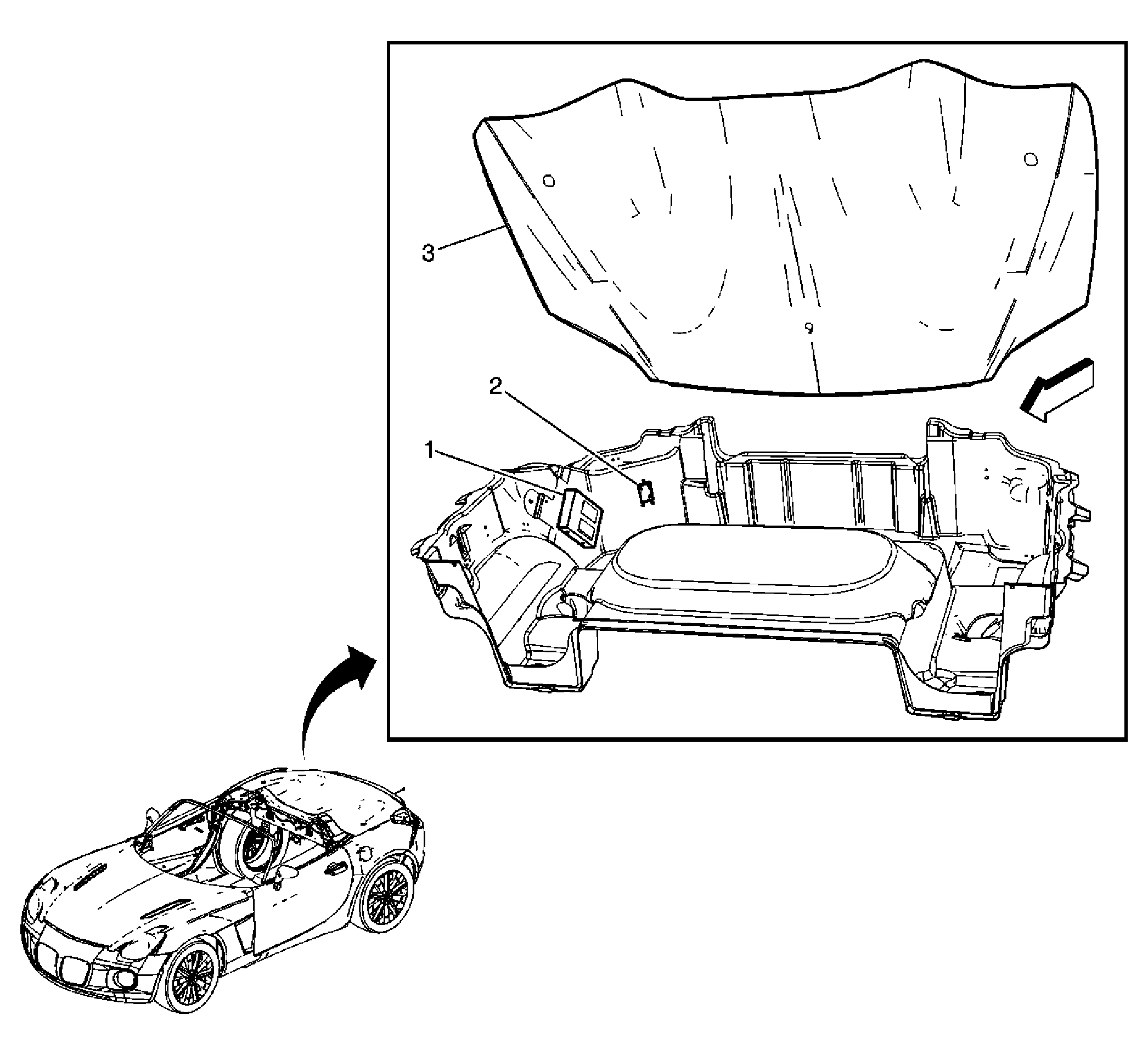

Fig 7: Lighting Systems Components (Rear Cargo Area)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Rear Compartment Lamp
3	Rear Compartment Lid

Fig 8: Locating Backup Lamp Switch (Engine)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Camshaft Position (CMP) Sensor 1 (Intake)
3	Manual Transmission
4	Vehicle Speed Sensor (VSS)
5	Backup Lamp Switch
6	Crankshaft Position (CKP) Sensor
7	Engine Oil Pressure (EOP) Sensor
8	Starter
9	Knock Sensor Pigtail Connector
10	Generator
11	Fuel Injector Rail
12	Manifold Absolute Pressure (MAP) Sensor
