Timing Belt: Service and Repair

Timing Belt Replacement

Removal Procedure

1. Remove the timing belt cover.

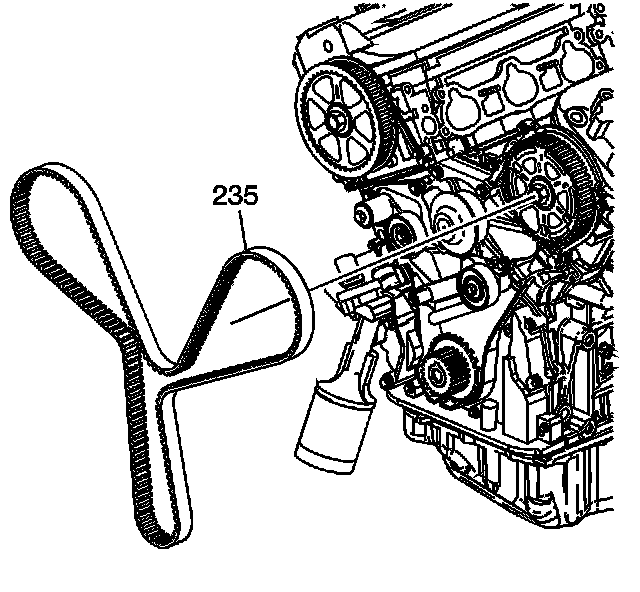

2. Remove the timing belt (235). 10. Timing Belt Removal

Installation Procedure

Important: The powertrain control module (PCM) has to perform the idle learn procedure under the following conditions:

* Any operation or repair involving the crankshaft, the crankshaft position (CKP) sensor, or the CKP sensor-to-reluctor wheel gap relationship

* Timing belt removal or replacement

* PCM replacement

* Throttle body removal or replacement

* Engine assembly replacement




Install the timing belt (235). 79. Timing Belt Installation
1. Install the timing belt cover.
2. Perform the idle learn procedure.
