Negative: Service and Repair

Battery Negative Cable Replacement (3.5L (L66))

Removal Procedure

1. Disconnect the negative battery cable.




2. Remove the battery tray.
3. Remove the negative battery cable nut from the right frame rail.

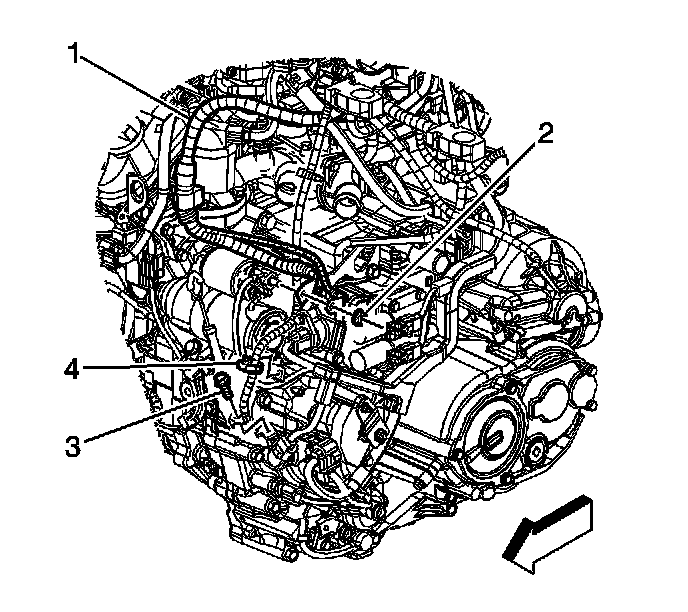

4. Disconnect the negative battery cable from the transmission bracket (3).
5. Disconnect the negative battery cable from the retainers.
6. Remove the negative battery cable.

Installation Procedure




1. Install the negative battery cable into the retainers.
2. Connect the negative battery cable to the transmission bracket (3).




3. Install the negative battery cable to the right frame rail.
4. Install the battery tray.
5. Connect the negative battery cable.
