Power Door Lock Switch: Service and Repair

Power Door Lock Switch Replacement

Removal Procedure

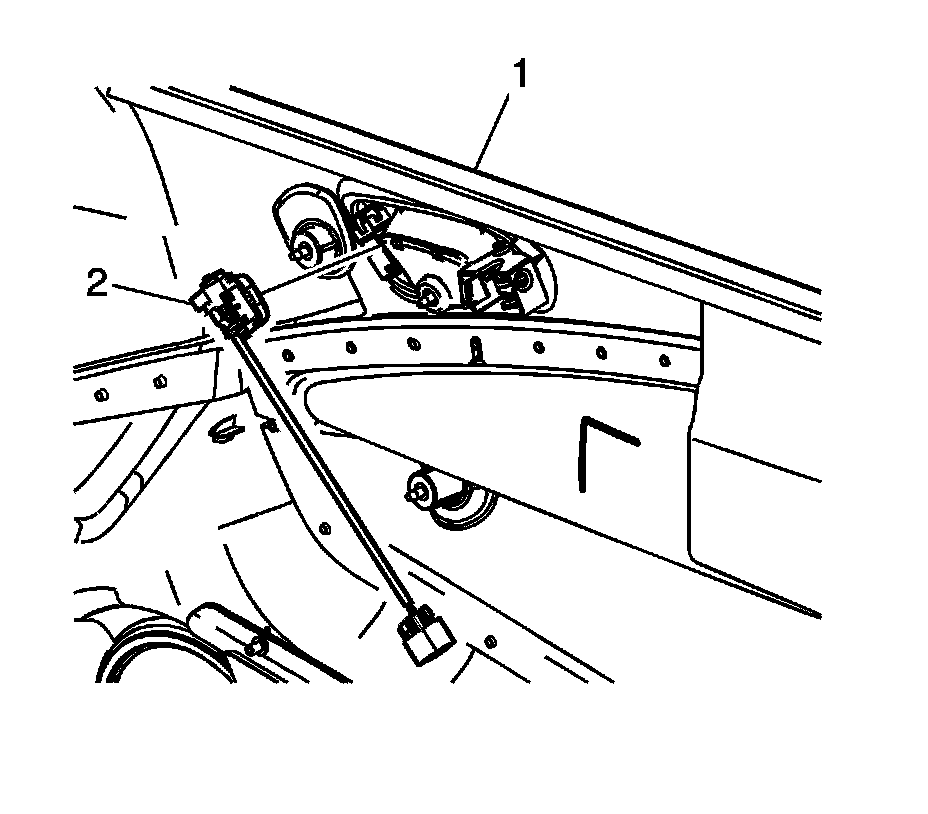

1. Remove the door trim panel (1).
2. Disconnect the electrical connector.
3. Use a flat-bladed tool to pry the switch (2) from rear of the door handle assembly.

Installation Procedure




1. Position the switch (2) on the door handle assembly and push inward to seat the switch.
2. Connect the electrical connector.
3. Install the door trim panel (1).
