Blower Motor Resistor: Service and Repair

Blower Motor Resistor Replacement

Removal Procedure




1. Remove the right side insulator/closeout panel.

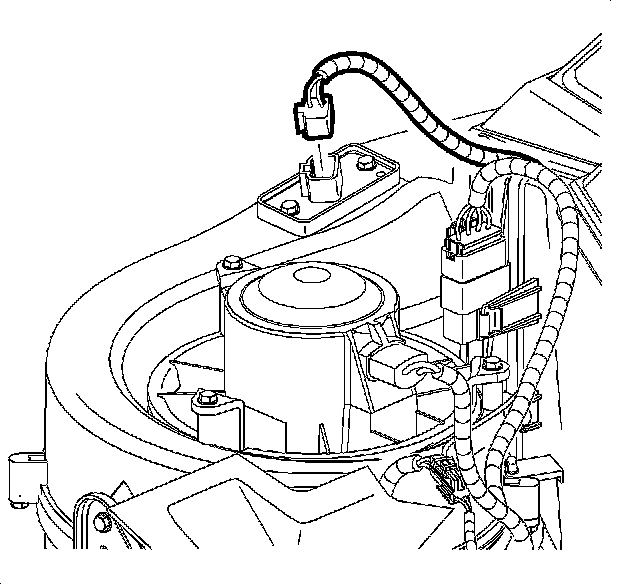

2. Disconnect the electrical connector from the blower motor resistor.




3. Remove the blower motor resistor screws from the HVAC module.
4. Remove the blower motor resistor from the HVAC module.

Installation Procedure




1. Install the blower motor resistor to the HVAC module.

Notice: Refer to Fastener Notice.

2. Install the blower motor resistor screws to the HVAC module.

Tighten the screws to 1 N.m (9 lb in).

3. Connect the electrical connector to the blower motor resistor.
4. Install the right side insulator/closeout panel.
