Shim Size Specifications



Shim Size Specifications

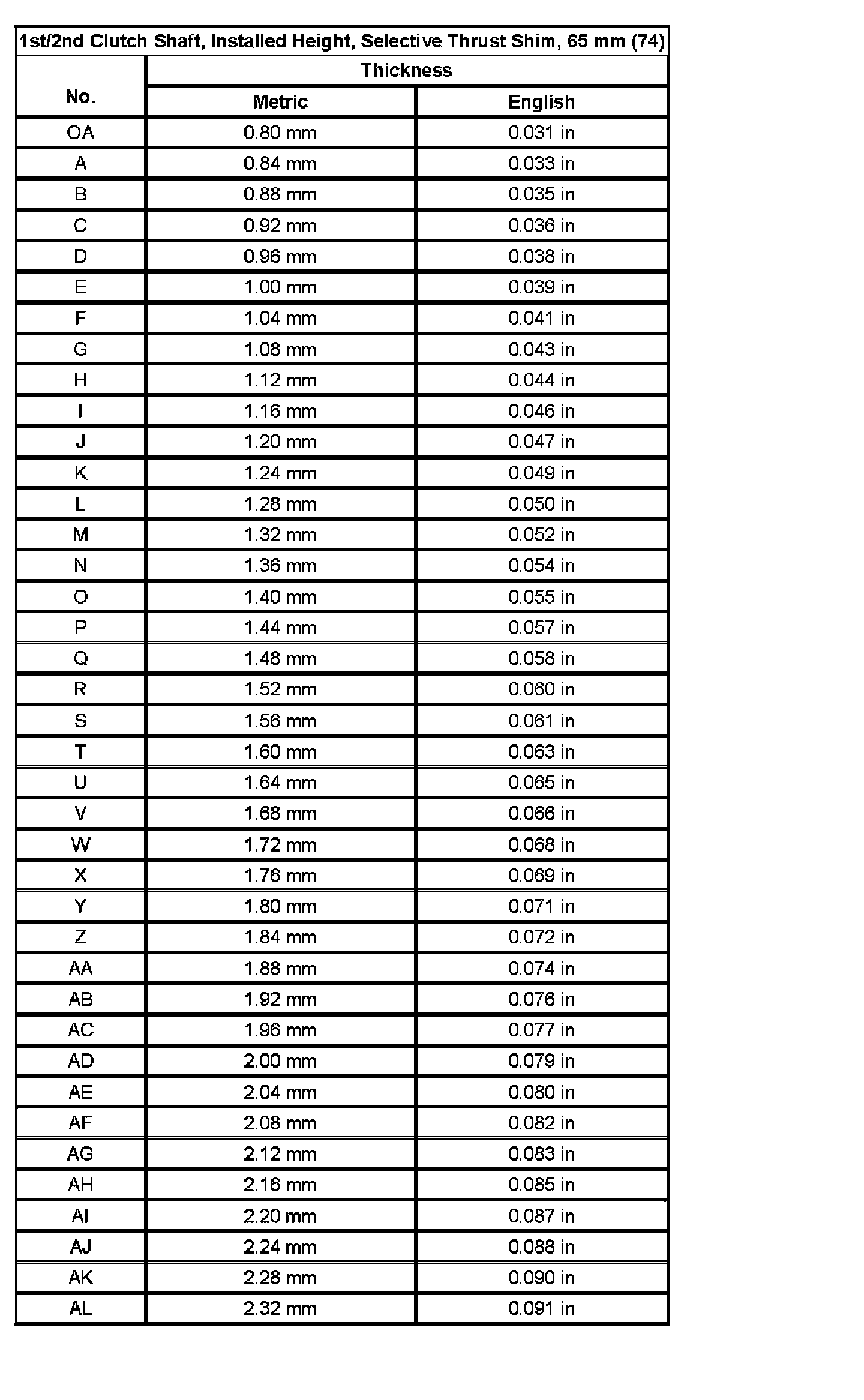

Shim Size Specifications (Part 1):

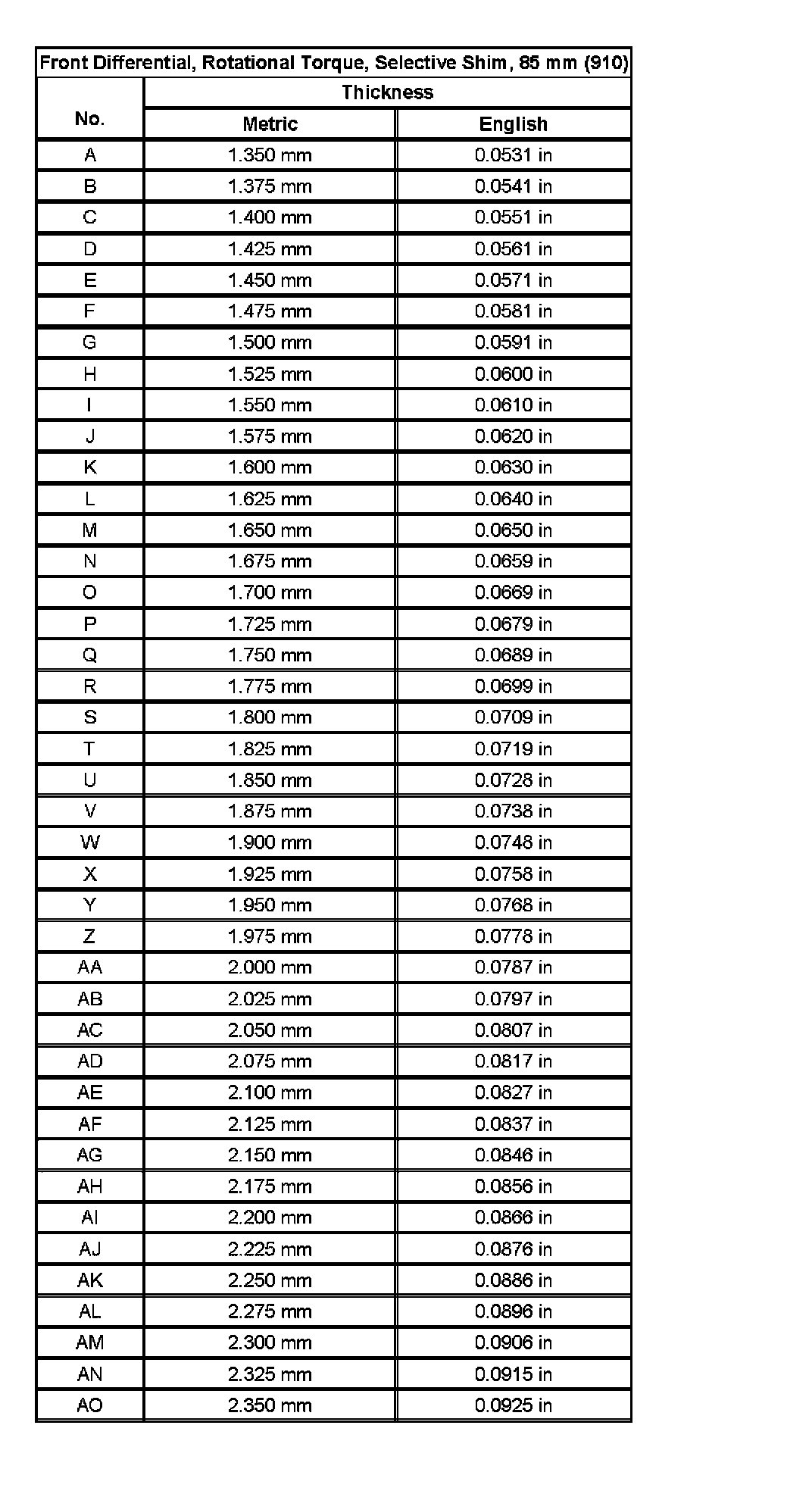

Shim Size Specifications (Part 2):




Shim Size Specifications (Part 3):




Shim Size Specifications (Part 4):




Shim Size Specifications (Part 5):




Shim Size Specifications (Part 6):




Shim Size Specifications (Part 7):




Shim Size Specifications (Part 8):




Shim Size Specifications (Part 9):




Shim Size Specifications (Part 10):




Shim Size Specifications (Part 11):




Shim Size Specifications (Part 12):




Shim Size Specifications (Part 13):
