Lighting Systems Component Views

WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Lighting Systems Component Views
GM932651Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Instrument Panel Cluster (IPC)
3 Dimmer Switch
4 Sunshade Lamps (Not Used)
5 Dome Lamps, Front and Rear
6 Liftgate Lamps, Left and Right
7 PRNDL Lamp
8 Cigar Lighter
9 Radio

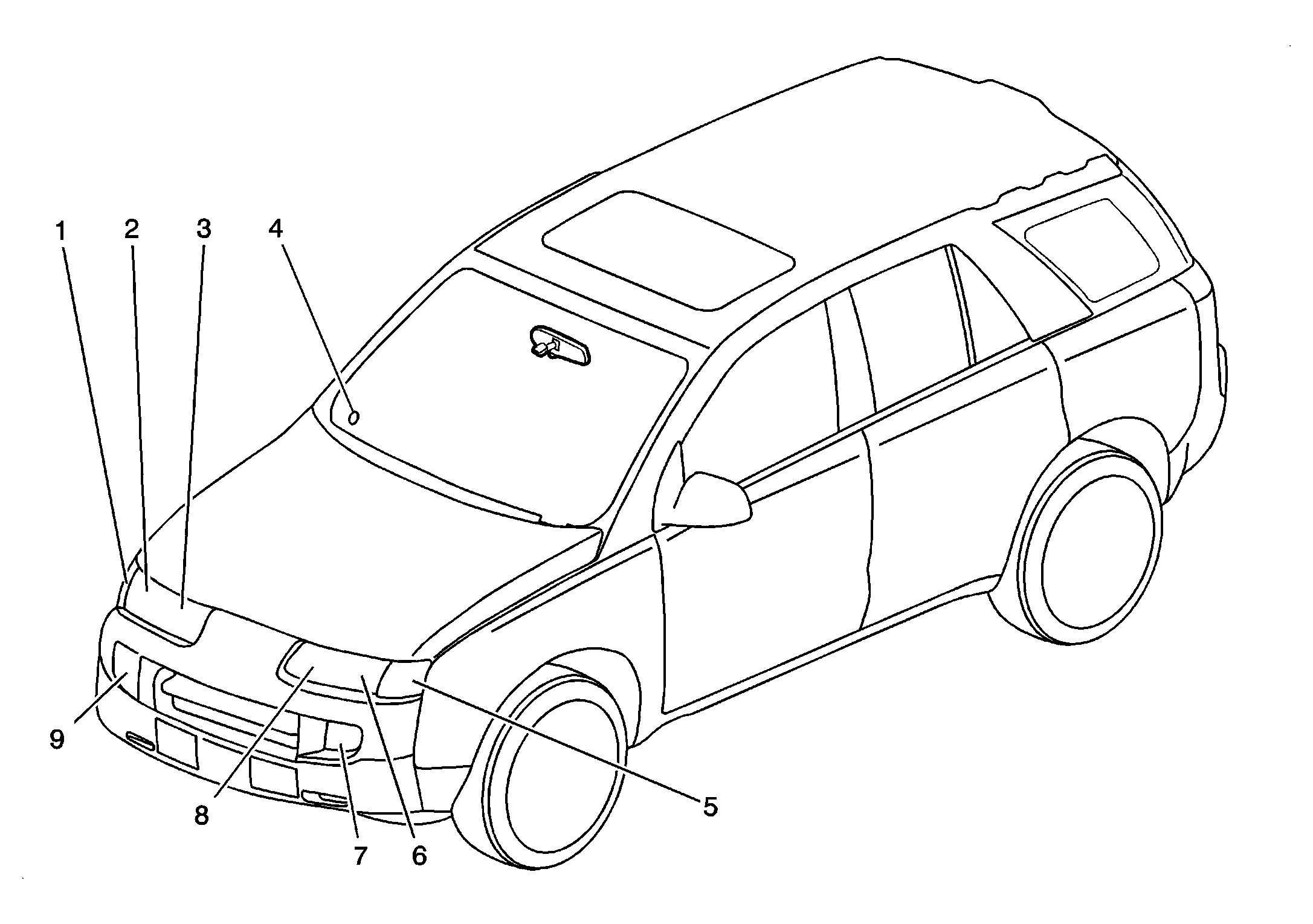

Fig 2: Front of Vehicle
GM1714397Courtesy of GENERAL MOTORS CORP.
callout component name
(1) Park/Turn Signal Lamp - RF
(2) Headlamp - Right - High Beam
(3) Headlamp - Right - Low Beam
(4) Ambient Light Sensor
(5) Park/Turn Signal Lamp - LF
(6) Headlamp - Leftt - High Beam
(7) Fog Lamp - Left
(8) Headlamp - Leftt - Low Beam
(9) Fog Lamp - Right

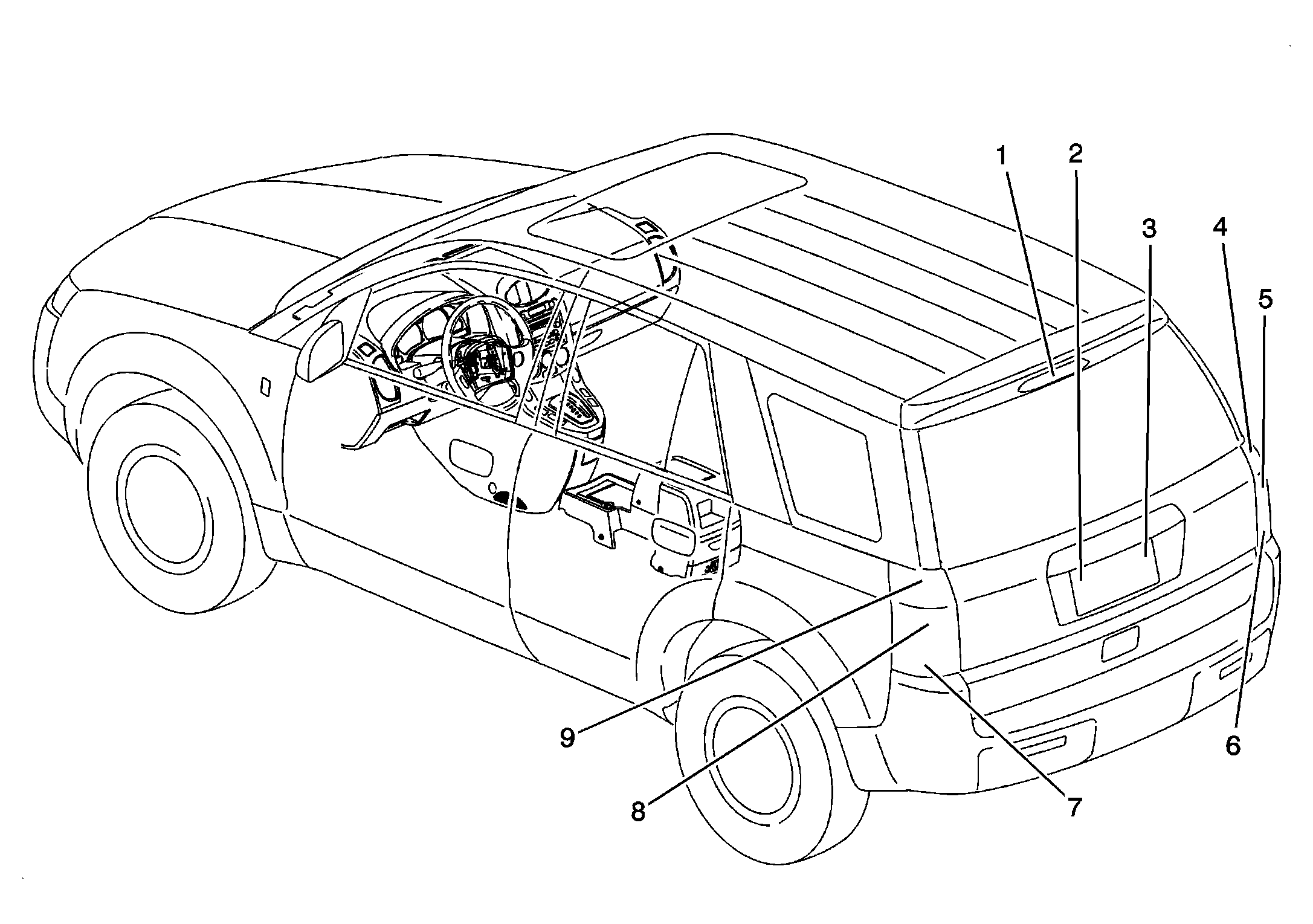

Fig 3: Rear of Vehicle
GM1714453Courtesy of GENERAL MOTORS CORP.
Callout Component Name
(1) Center High Mounted Stop Lamp (CHMSL)
(2) License Lamp - Left
(3) License Lamp - Right
(4) Park/Stop Lamp - RR
(5) Park/Turn Signal Lamp - RR
(6) Backup Lamp - Right
(7) Backup Lamp - Left
(8) Park/Turn Signal Lamp - LR
(9) Park/Stop Lamp -LR
