Turn Signal Multifunction Switch Replacement

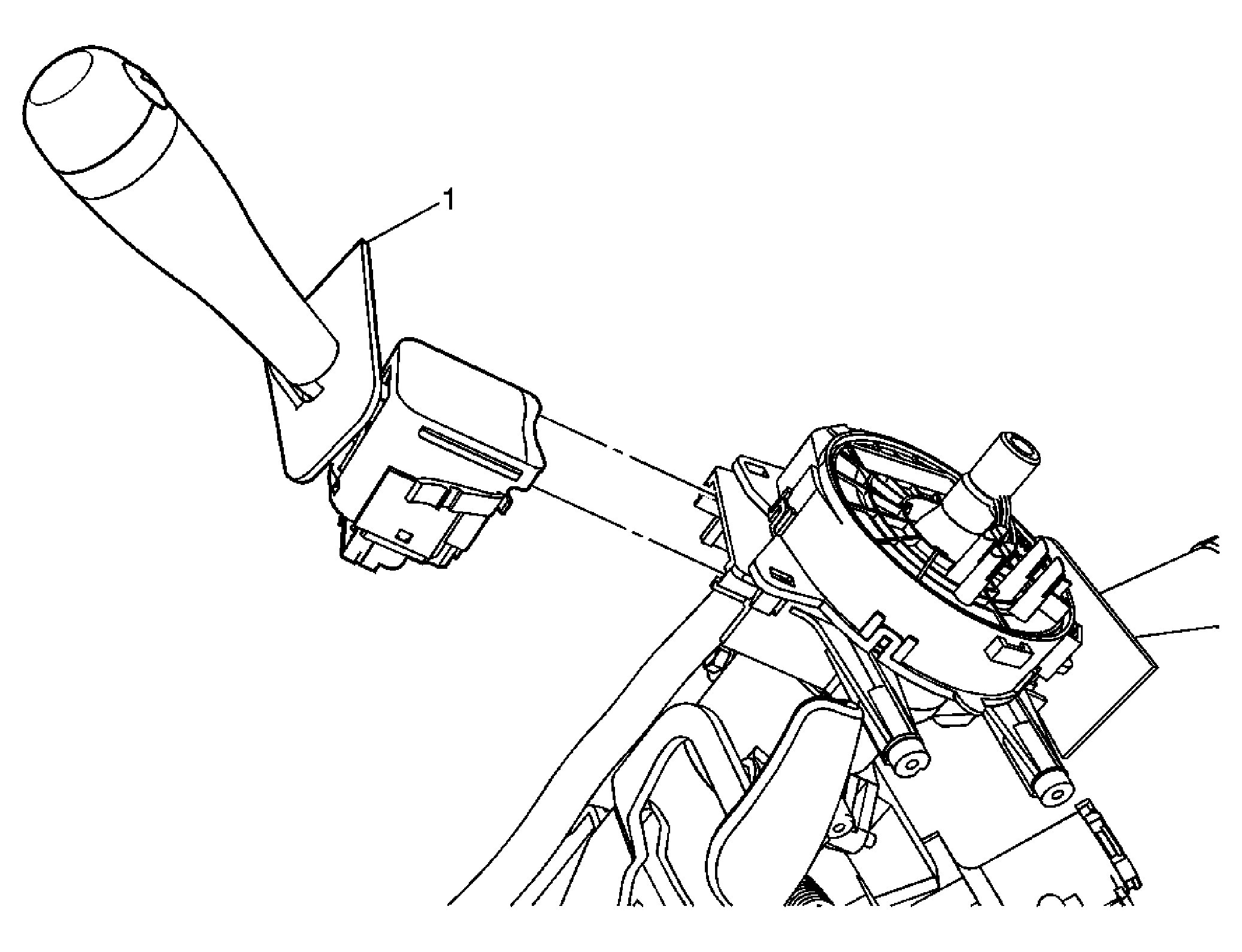

Fig 1: Steering Column Trim Covers Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
1	Multifunction, Turn Signal Switch Tip: Disconnect the electrical connector. Depress the locking tabs to remove the multifunction, turn signal switch. During installation, make sure both locking tabs are seated.
