Window Switch - LR
Window Switch - LR Connector Parts Information
Connector Part Information
|

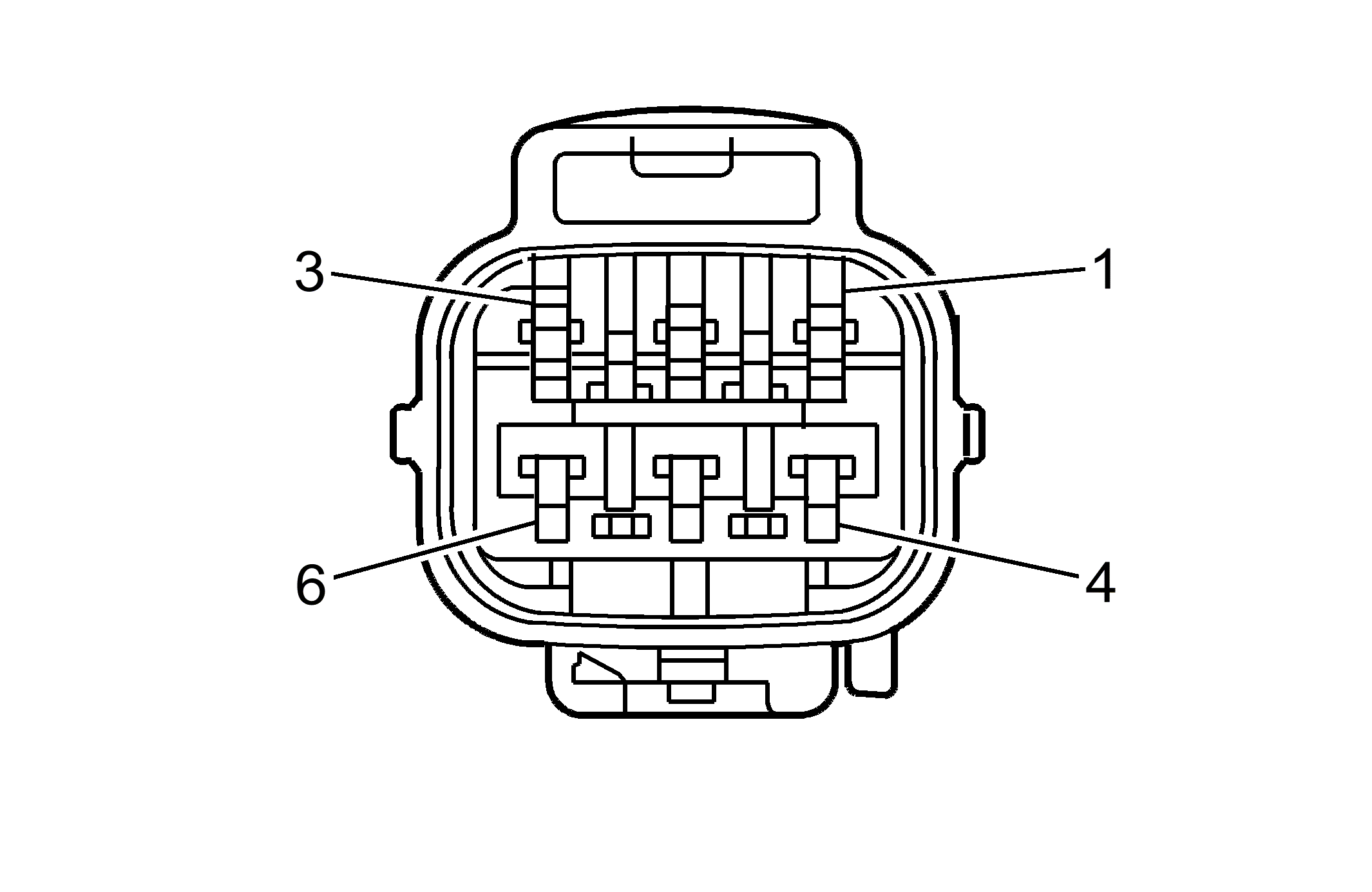

Window Switch - LR Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | PU | 169 | Power Window Master Switch Left Rear Down Signal |
| 2 | BN | 669 | Power Window Motor Left Rear Down Control |
| 3 | D-BU | 1307 | Power Window Master Switch Lockout Control |
| 4 | D-GN | 168 | Power Window Master Switch Left Rear Up Signal |
| 5 | D-BU | 668 | Power Window Motor Left Rear Up Control |
| 6 | - | - | Not Used |
