Engine Electrical Component Views

Fig 1: Lower Left Side of I/P
GM1803405Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Release Switch
2 Stop Lamp Switch
3 Accelerator Pedal Position (APP) Sensor
4 Clutch Start Switch (M/T)

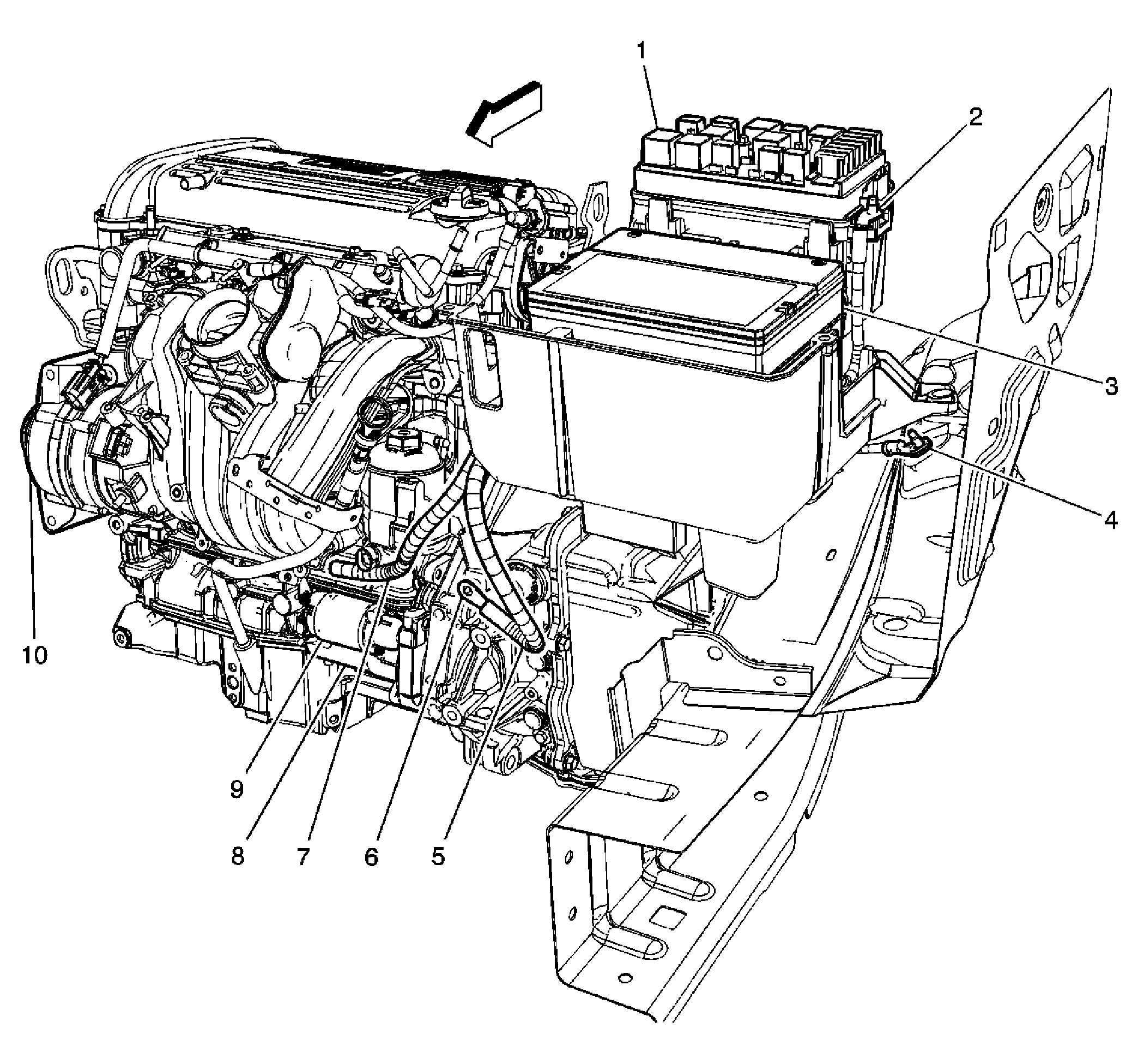

Fig 2: Engine - L61
GM1819463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Positive Voltage (Stud)
3 Battery
4 G103
5 Negative Battery Cable
6 G105
7 Battery Positive Cable
8 Starter
9 Generator

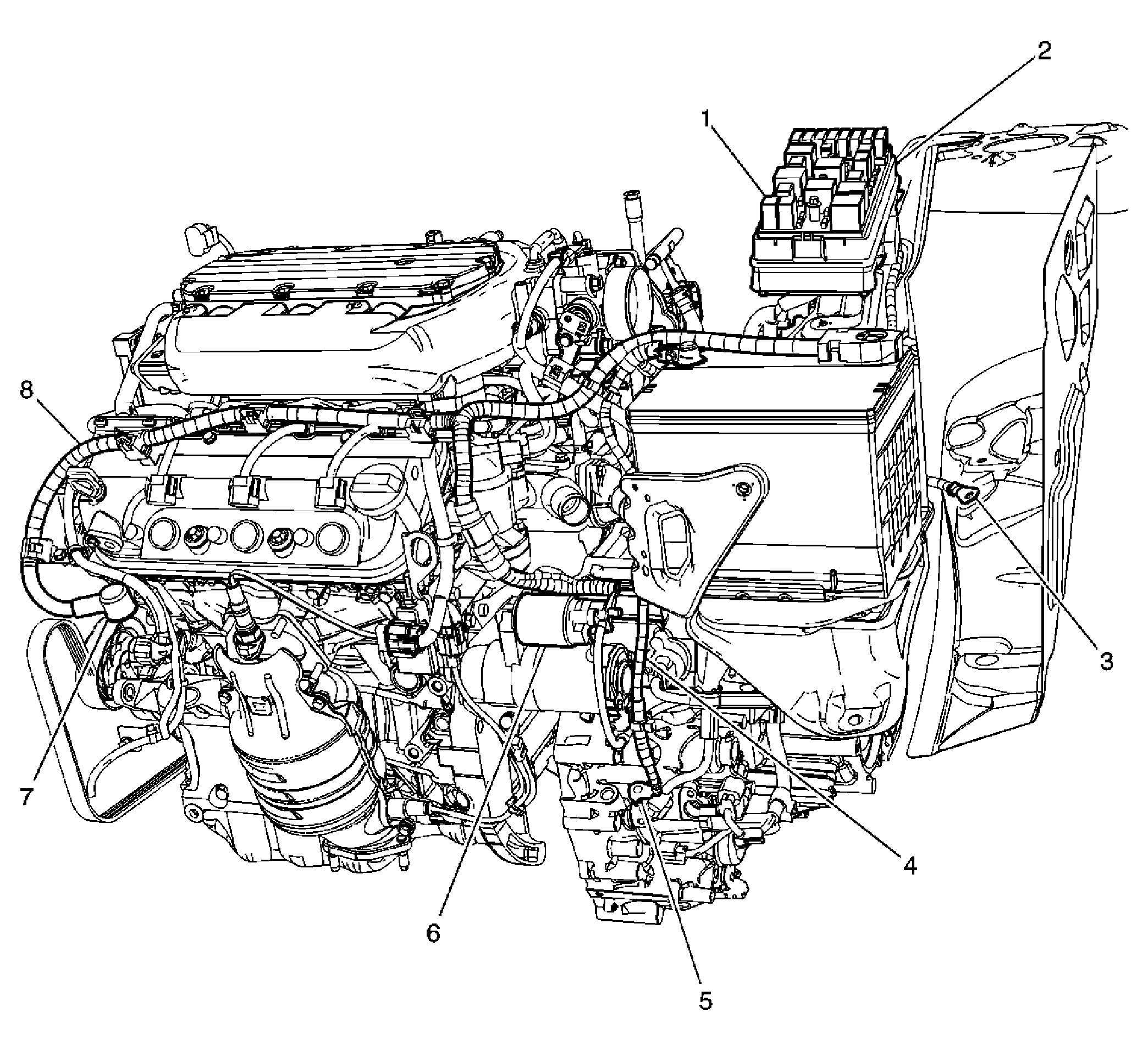

Fig 3: Engine - L66
GM1819461Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Positive Voltage (Stud)
3 G105
4 Negative Battery Cable
5 G103
6 Starter
7 Generator Connector
8 Battery Positive Cable

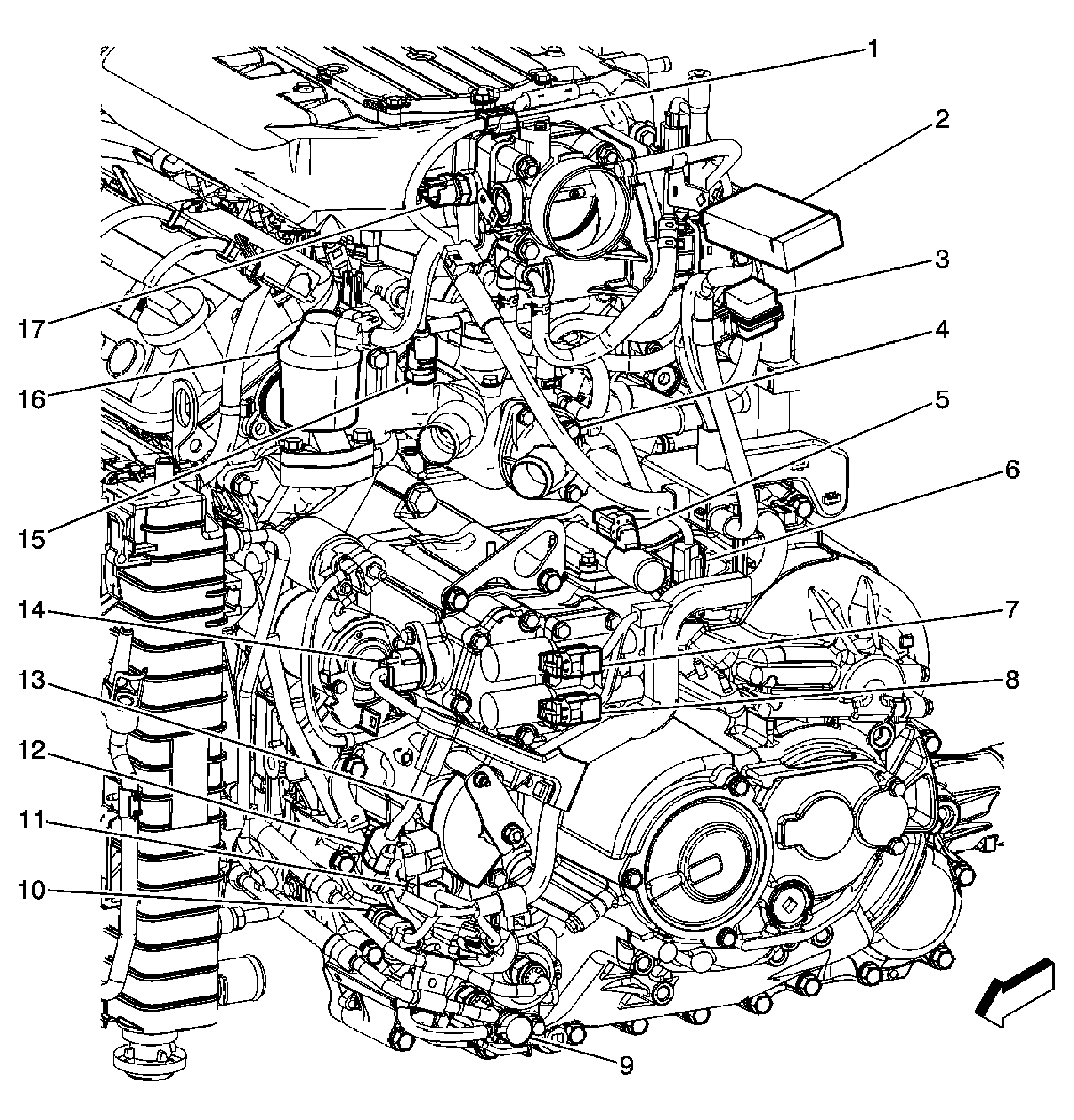

Fig 4: Left Side of Engine
GM1760277Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Fuse Block-Underhood C2
3 Starter Relay
4 G107
5 Torque Converter Clutch (TCC) Pressure Control Solenoid Valve
6 4th Clutch Pressure Switch
7 Clutch Pressure Control Solenoid Valve 1
8 Clutch Pressure Control Solenoid Valve 2
9 Transmission Fluid Temperature (TFT) Sensor
10 3rd Clutch Pressure Switch
11 Transmission Output Shaft Speed Sensor
12 Transmission Input Shaft Speed Sensor
13 Park / Neutral Position (PNP) Switch
14 C100 Engine Harness to Transmission Harness
15 Engine Coolant Temperature (ECT) Sensor
16 Exhaust Gas Recirculation (EGR) Valve
17 Intake Air Temperature (IAT) Sensor 2
