SIR Component Views
WARNING: This page is about a different car, the 2005 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

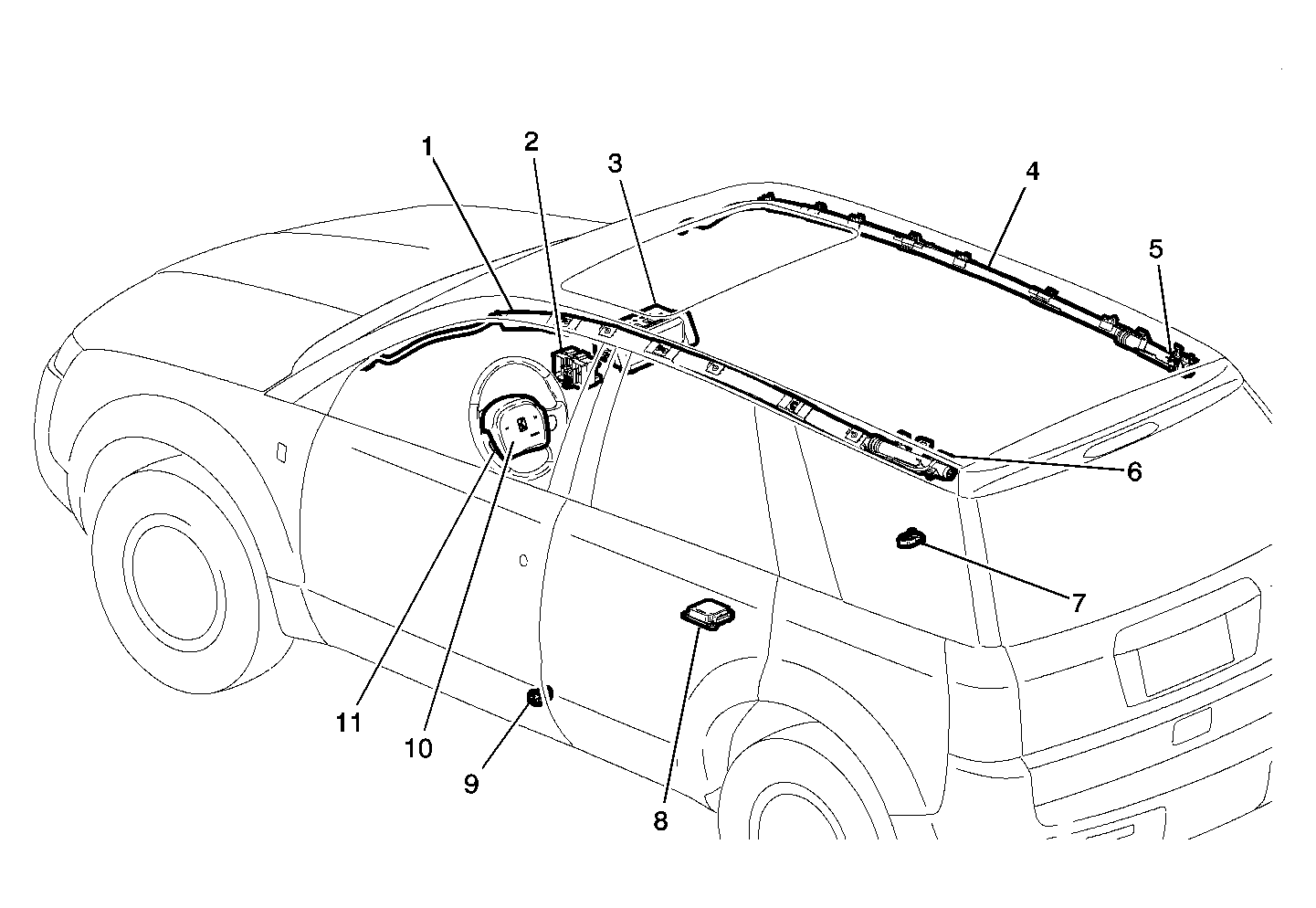

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Roof Rail Module - Left (w/ASF) |
| 2 | Fuse Block - I/P |
| 3 | Inflatable Restraint I/P Module |
| 4 | Inflatable Restraint Roof Rail Module - Right (w/ASF) |
| 5 | Inflatable Restraint Roof Rail Module - Right Disable Connector (w/ASF) |
| 6 | Inflatable Restraint Roof Rail Module - Left Disable Connector (w/ASF) |
| 7 | Inflatable Restraint Side Impact Sensor (SIS) - Right |
| 8 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 9 | Inflatable Restraint Side Impact Sensor (SIS) - Left |
| 10 | Inflatable Restraint Steering Wheel Module Coil (Hidden Beneath Module) |
| 11 | Inflatable Restraint Steering Wheel Module |
