Automatic Level Control Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

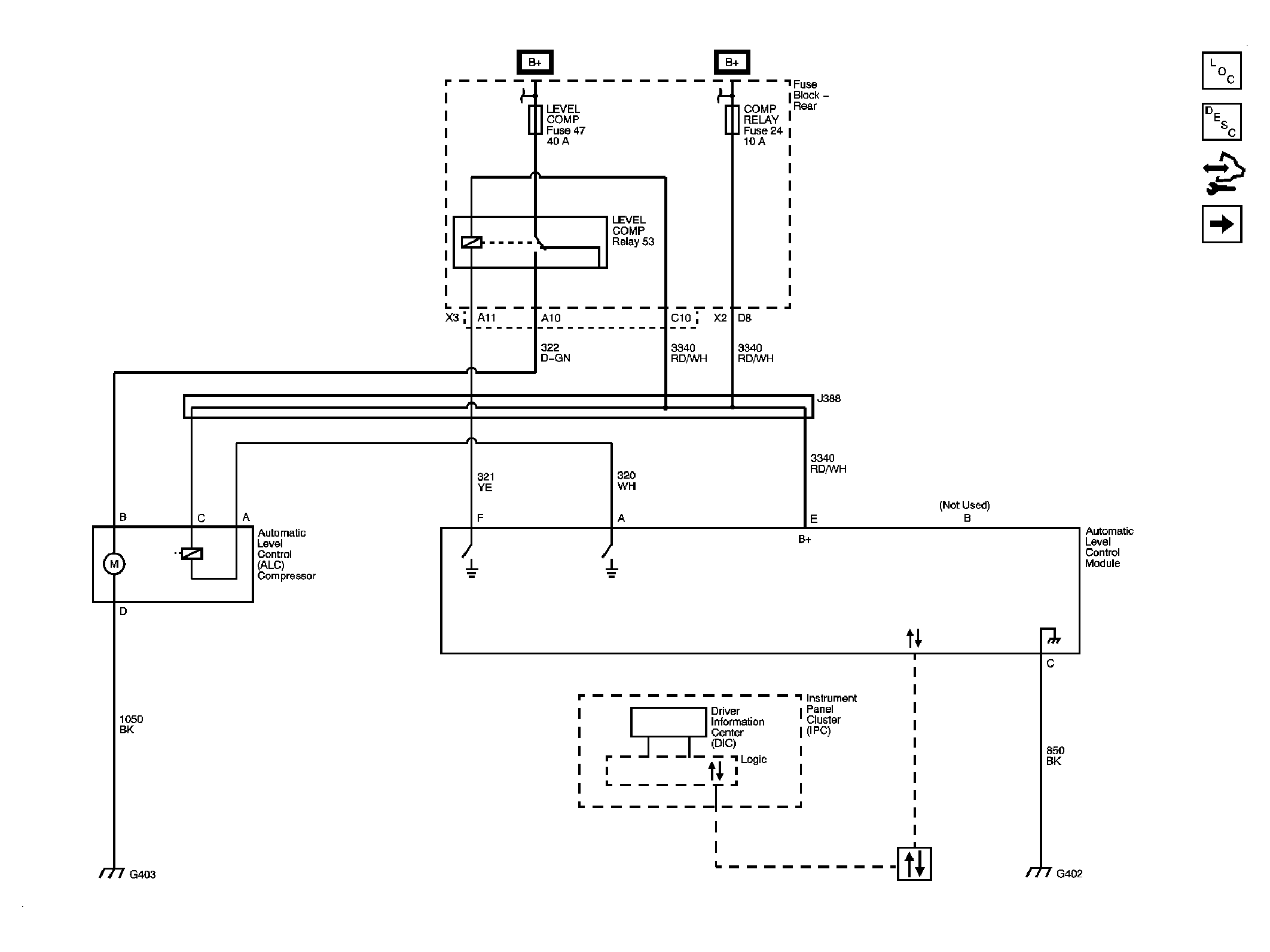

Fig 1: FE1, FE3, F41
GM1886358Courtesy of GENERAL MOTORS CORP.

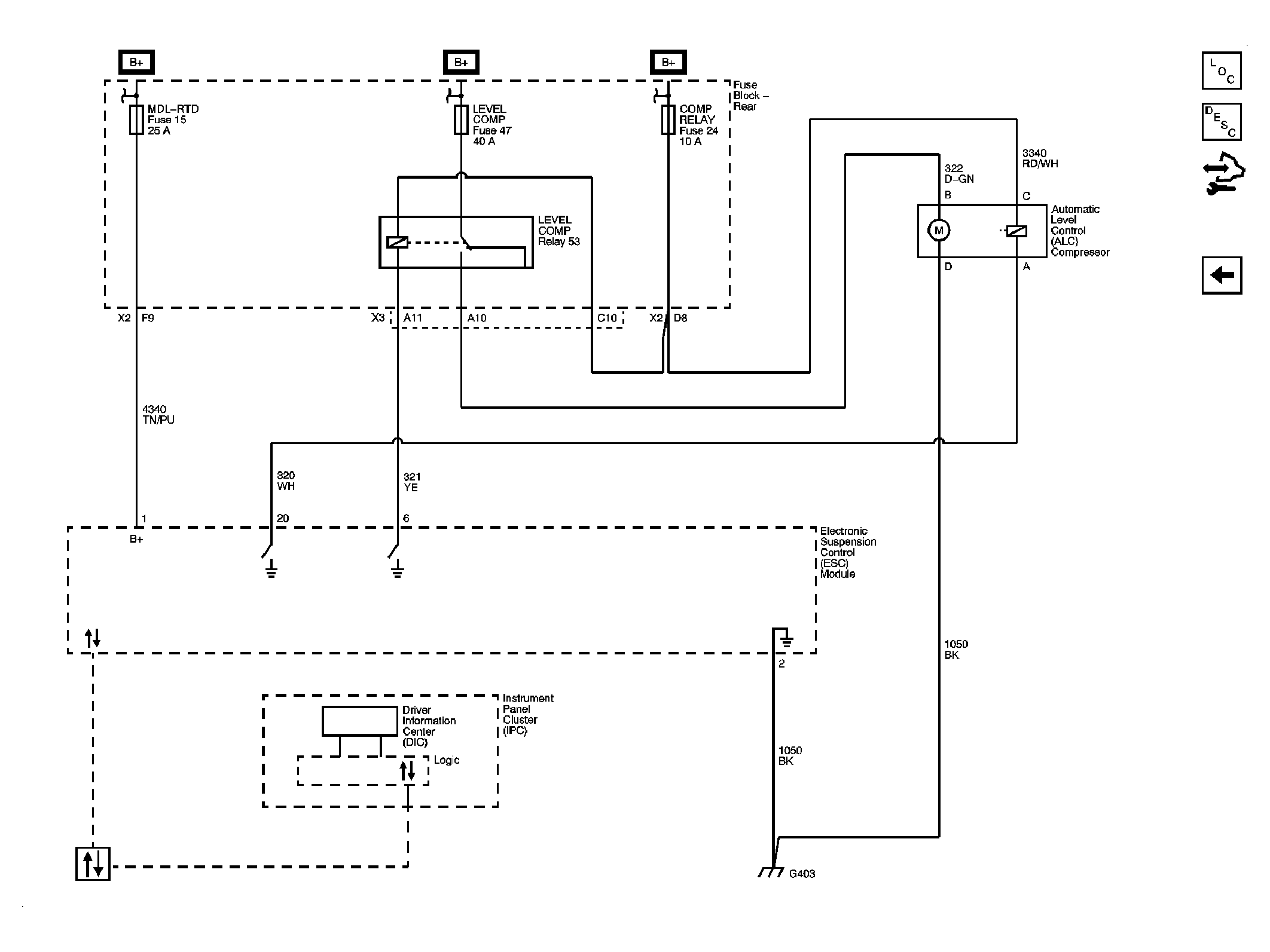

Fig 2: F55
GM1886363Courtesy of GENERAL MOTORS CORP.
