Inflatable Restraint Instrument Panel Module



Component Connector End Views

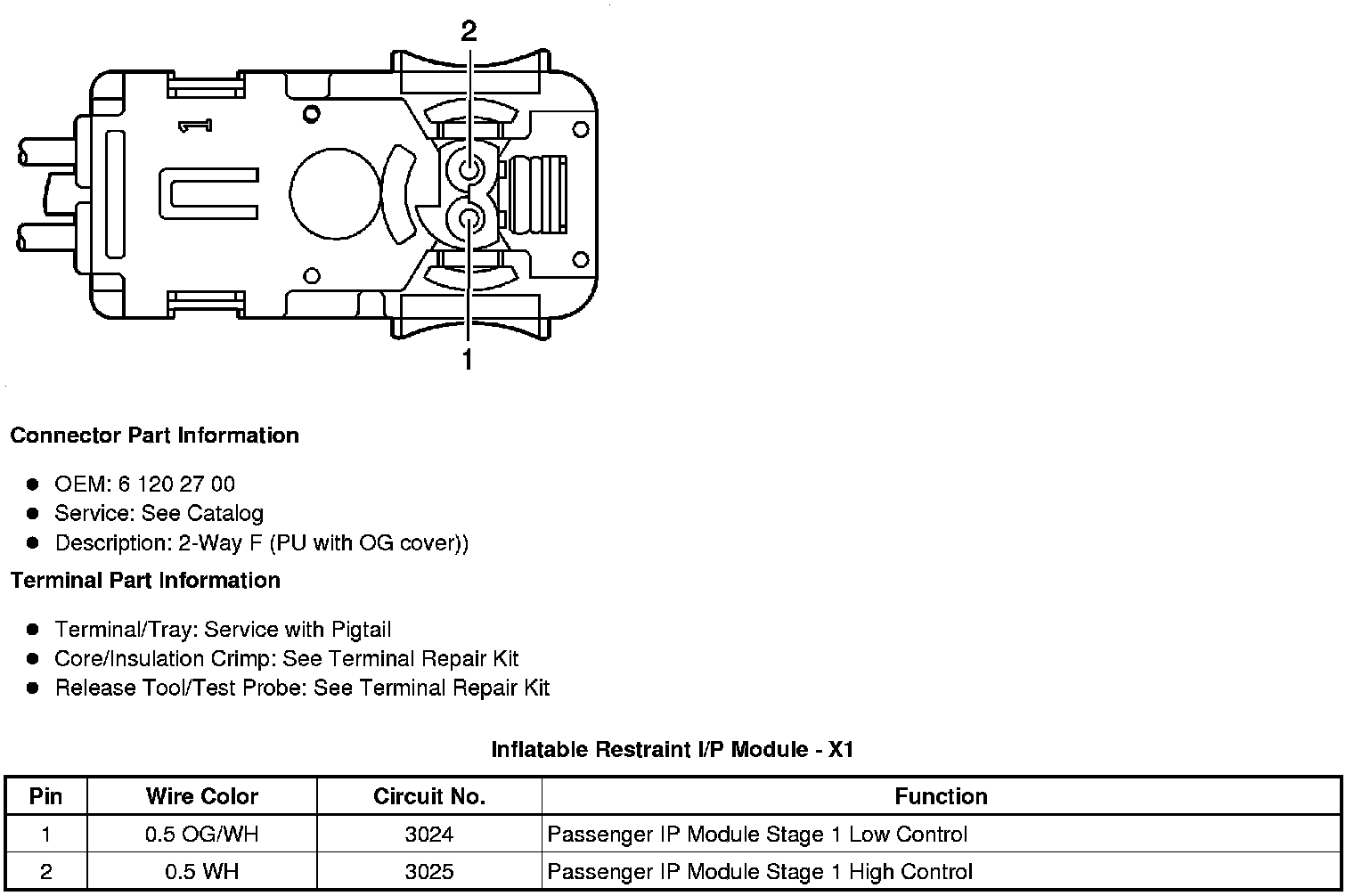

Inflatable Restraint I/P Module - X1

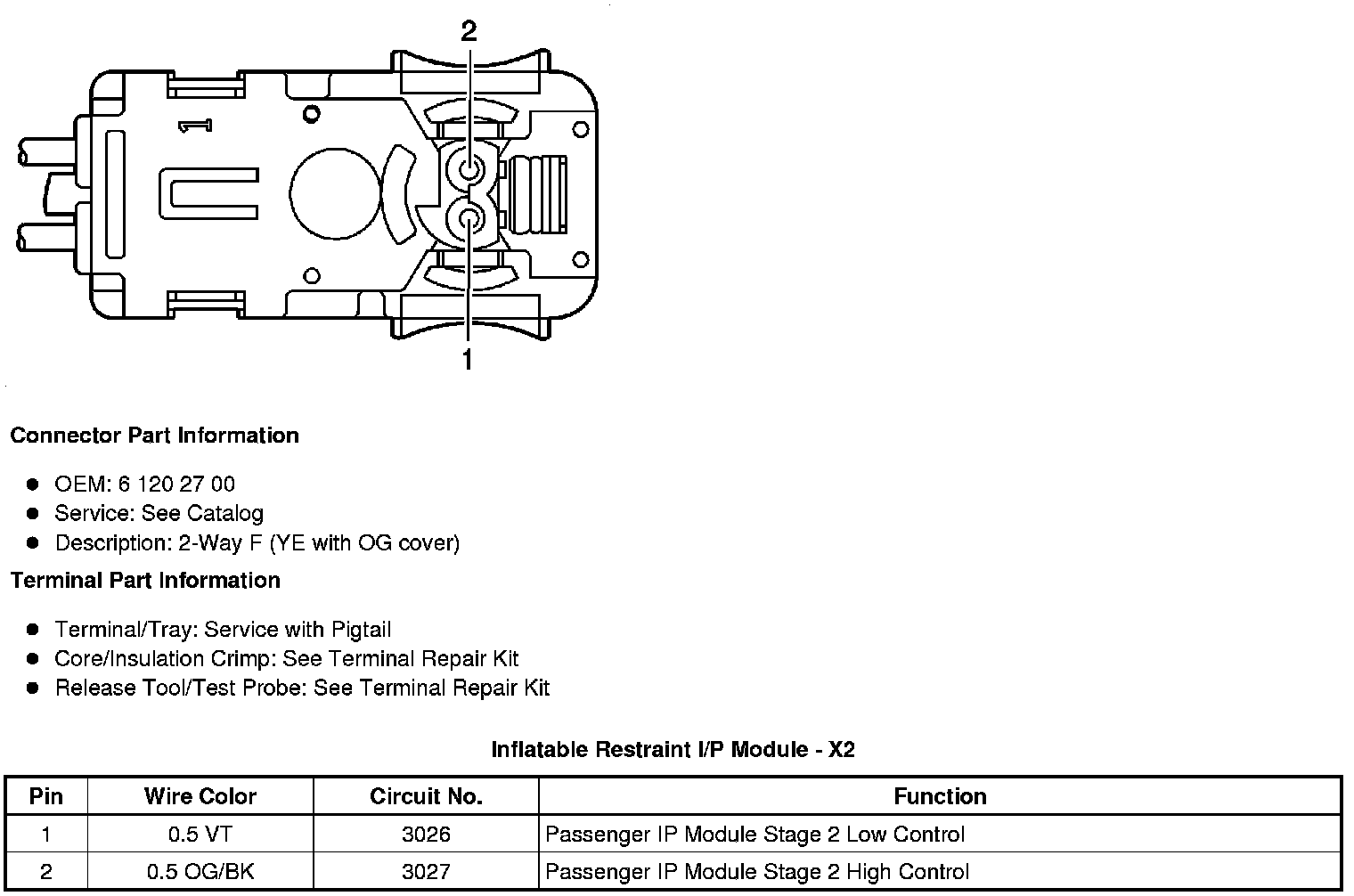

Inflatable Restraint I/P Module - X2
