Body Control Systems



Body Control System Schematics

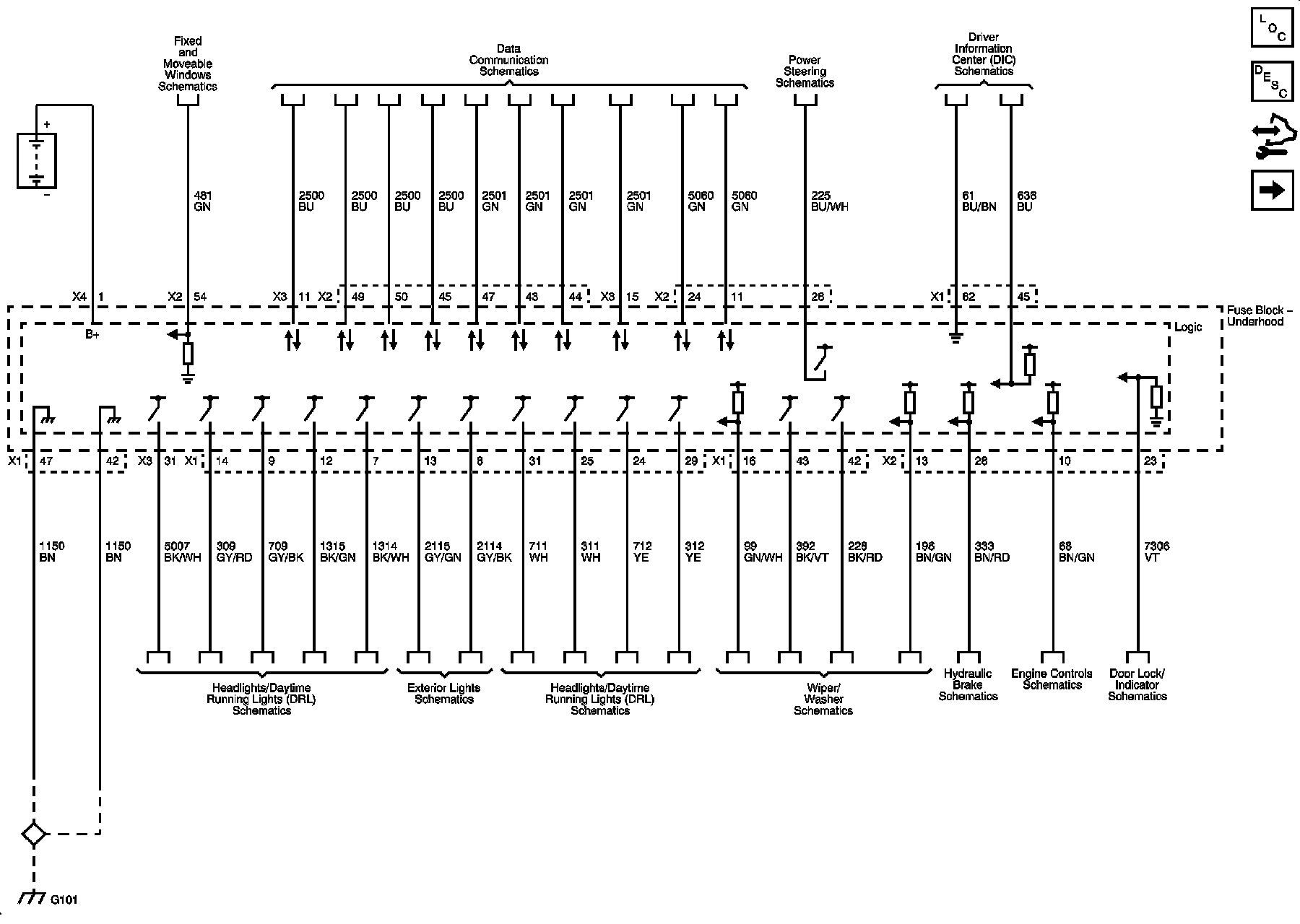

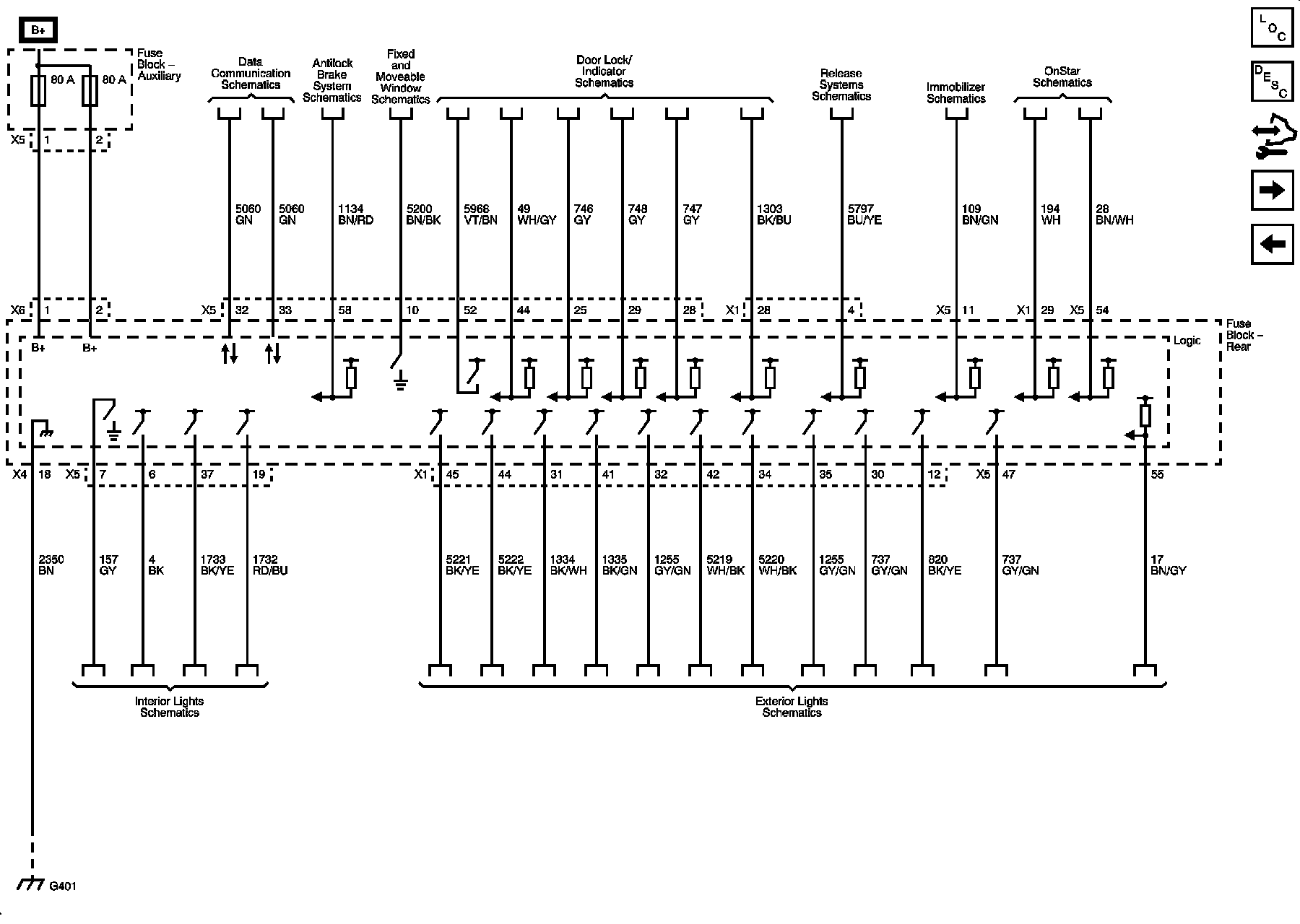

Power, Ground and Serial Data





Controlled/Monitored Subsystem References 1 of 2





Controlled/Monitored Subsystem References 2 of 2
