Removal Procedure

  1. When replacing the control unit, before removing the control unit, carry out a "Reset" using the Tech 2. For reprogramming procedures, refer to Control Module References .
  2. Disconnect the battery.
  3. Open the service flap.

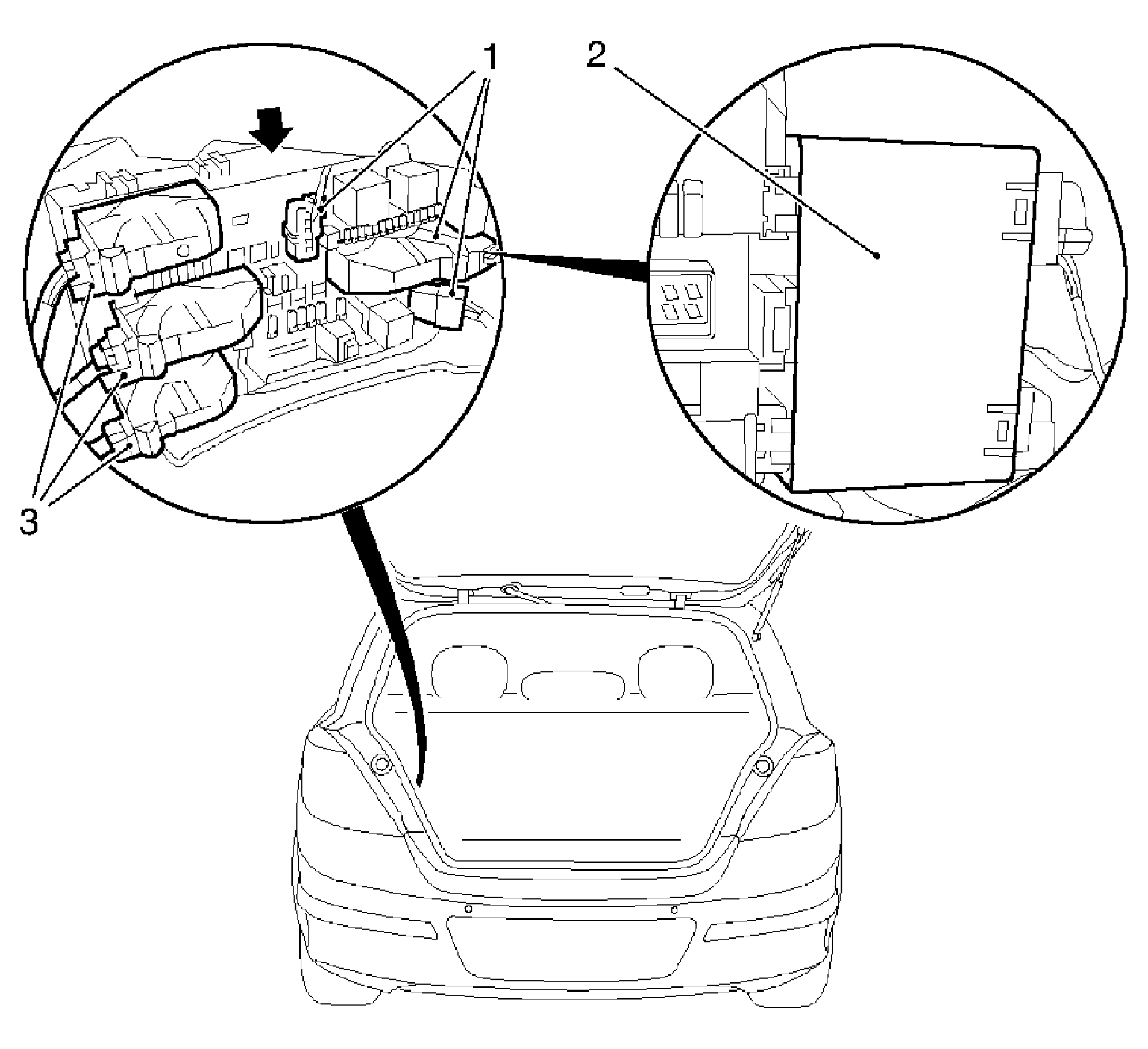

    4. Fig 1: View Of Wiring Harness Plug
    GM1936973Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the wiring harness plug for the rear electronics module (REC).
    • Disconnect the 6 wiring harness plugs (1).
    • Unlock and detach.
  5. Release the rear electronics module (REC).

    Remove the nut (arrow).

  6. Remove the REC.

    Release the object alarm module.

  7. Remove the object alarm module (2).
    • Disconnect the 2 wiring harness plugs.
    • Remove the object alarm module.
