Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

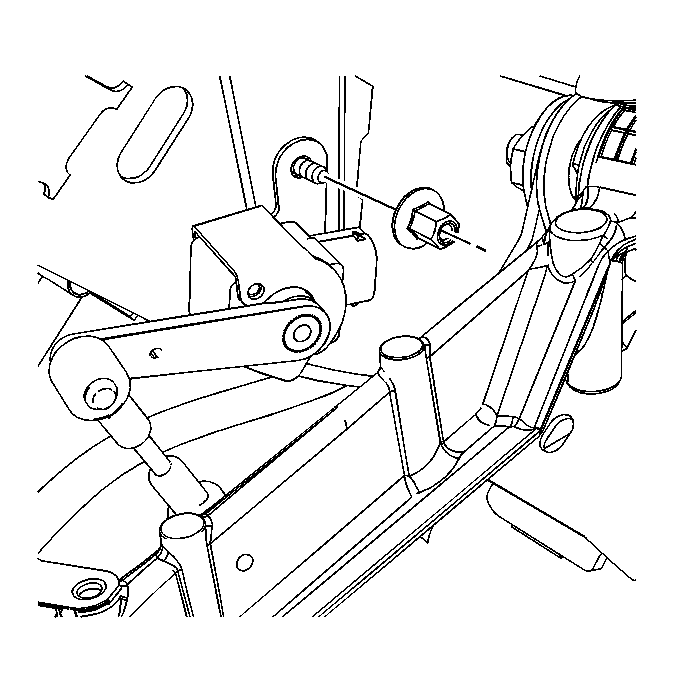

    Fig 1: View Of Air Spring Leveling Sensor Nut
    GM1740711Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the air spring leveling sensor and install the nut.

    Tighten:  Tighten the air spring leveling sensor nut to 9 N.m (80 lb in).

    2. Fig 2: View Of Air Spring Leveling Sensor Electrical Connector
    GM1740714Courtesy of GENERAL MOTORS CORP.
  2. Connect the air spring leveling sensor electrical connector.
    3. Fig 3: View Of Air Spring Leveling Sensor Arm
    GM1740703Courtesy of GENERAL MOTORS CORP.
  3. Connect the air spring leveling sensor to the trailing arm.
  4. Remove the rear suspension support.
  5. Install the rear wheel and tire. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
  7. Perform the suspension position calibration procedure. Refer to Suspension Position Calibration .
