Power Moding Schematics

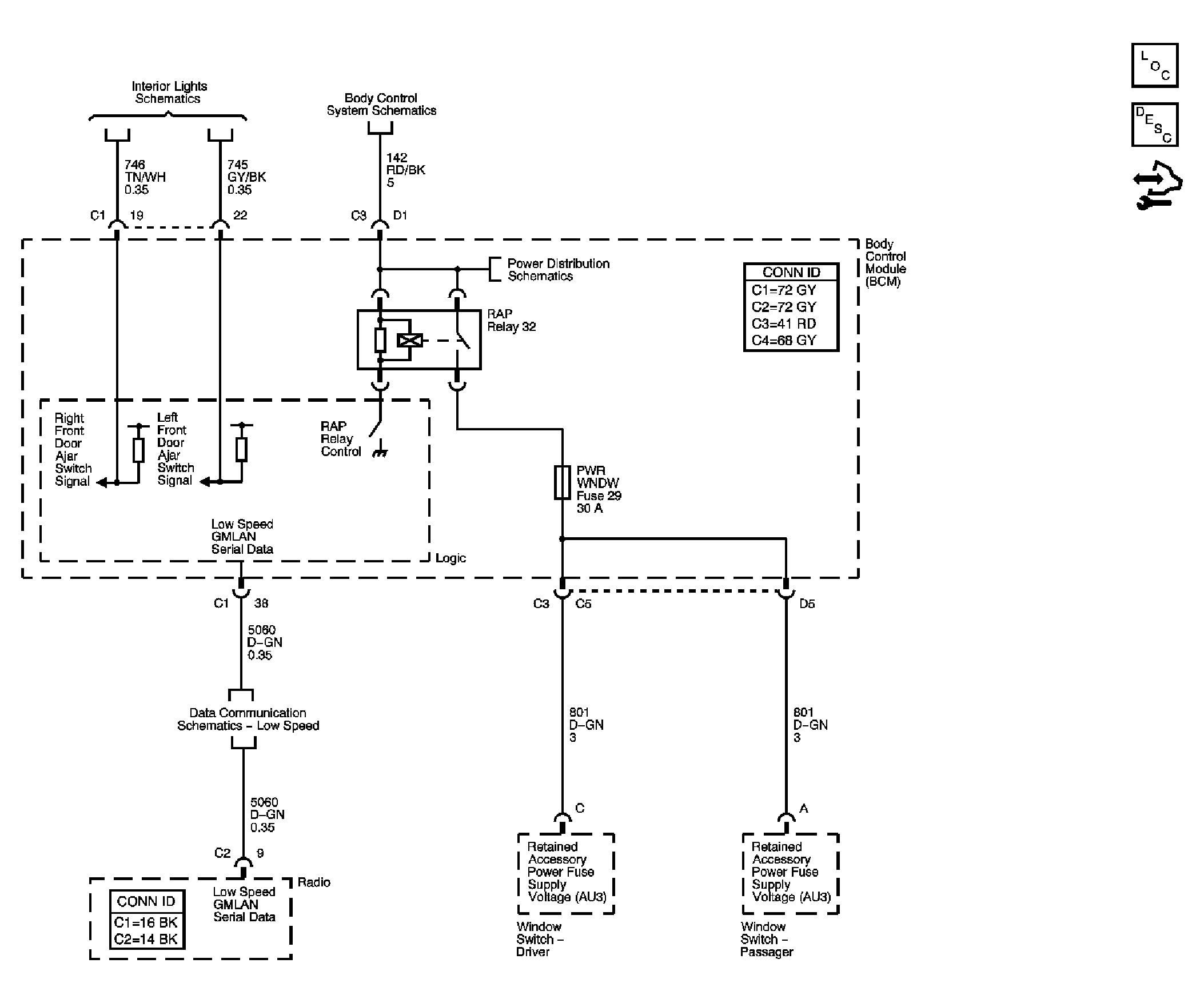

Fig 1: Power Moding Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
