Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Sunroof Control Module Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors to the sunroof control module.

Fig 2: View Of Sunroof Module Assembly, Tabs & Slots

Courtesy of GENERAL MOTORS CORP.

Install the sunroof control module tabs (2) into the slots (3) located on the sunroof module assembly.
Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.

IMPORTANT: Test the proper operation of the sunroof functions before installing the interior trim components.

Reposition the headliner to the center and rearward roof magnets.

Fig 3: View Of Passenger Side Rear Sail Panel

Courtesy of GENERAL MOTORS CORP.

Install the passenger side sail panel. Refer to Sail Panel Replacement .

Fig 4: View Of Rear Seat Shoulder Belt & Retractor Components

Courtesy of GENERAL MOTORS CORP.

Install the passenger side rear seat belt retractor (4). Refer to Rear Seat Belt Retractor Replacement .

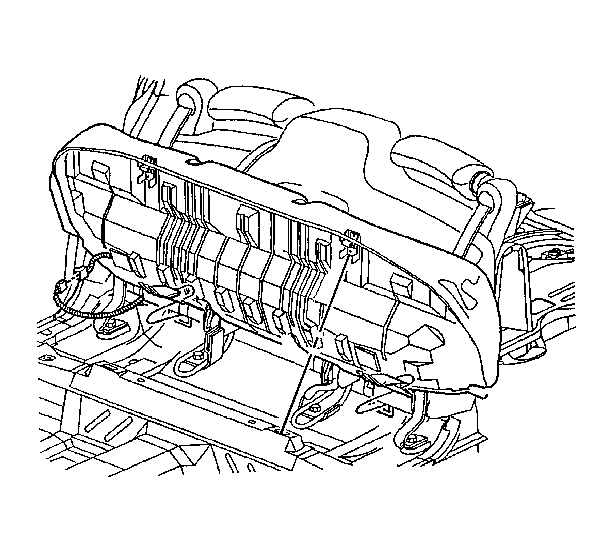

Fig 5: Locating Rear Seat Back Anchor Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear seat back. Refer to Rear Seat Back Replacement .

Fig 6: View Of Rear Seat Cushion

Courtesy of GENERAL MOTORS CORP.

Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Fig 7: View Of Passenger Side Center Pillar Trim Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Align the upper center trim panel retainer, push inward in order to secure.
Reposition the passenger rear door opening weatherstrip seal.

Fig 8: Installing Passenger Side Rear Assist Handle

Courtesy of GENERAL MOTORS CORP.

Install the passenger side rear assist handle. Refer to Assist Handle Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling .
Close the passenger rear door.
