Fuse Block - I/P



Electrical Center Identification Views



Fuse Block - I/P Bottom View

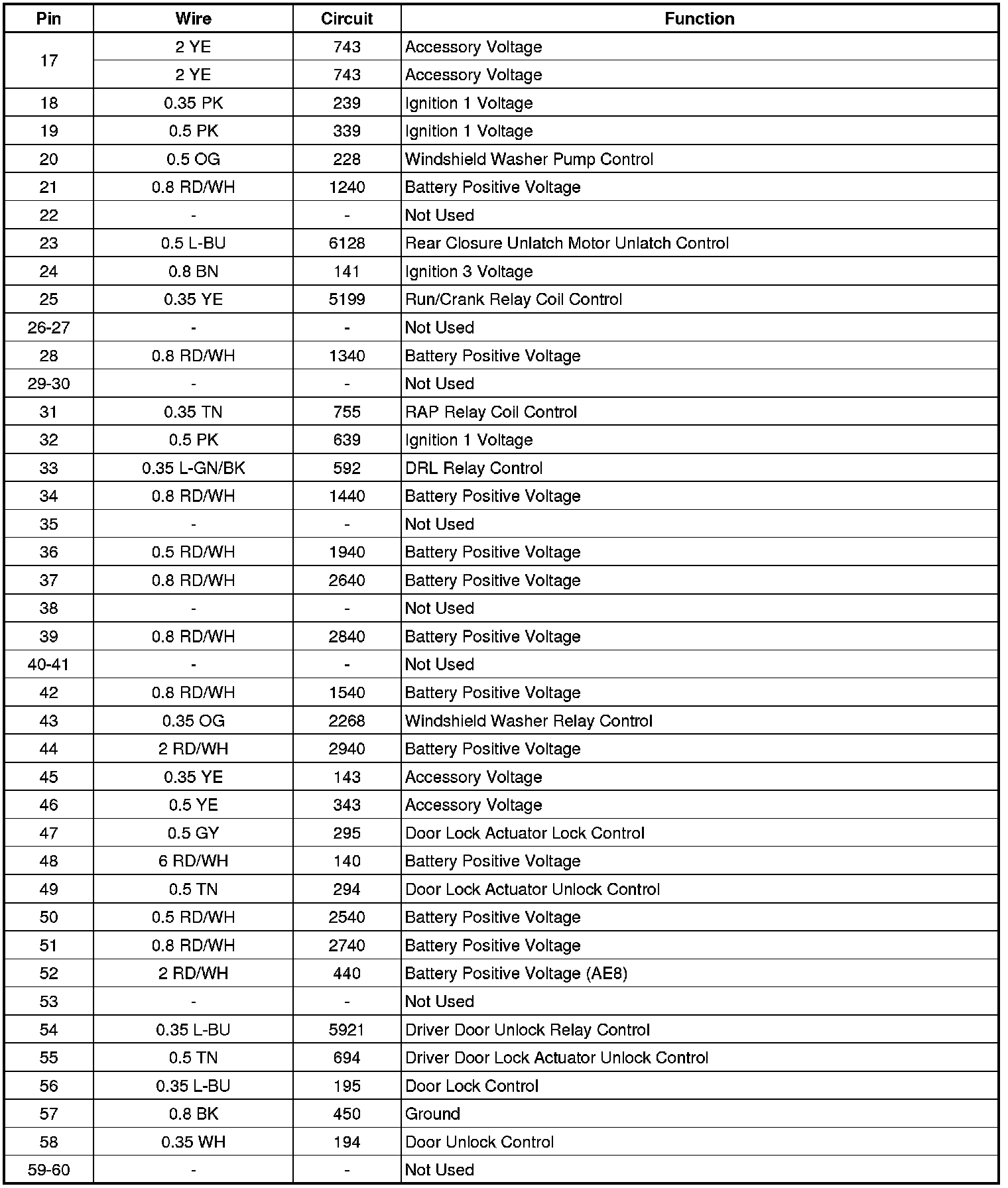

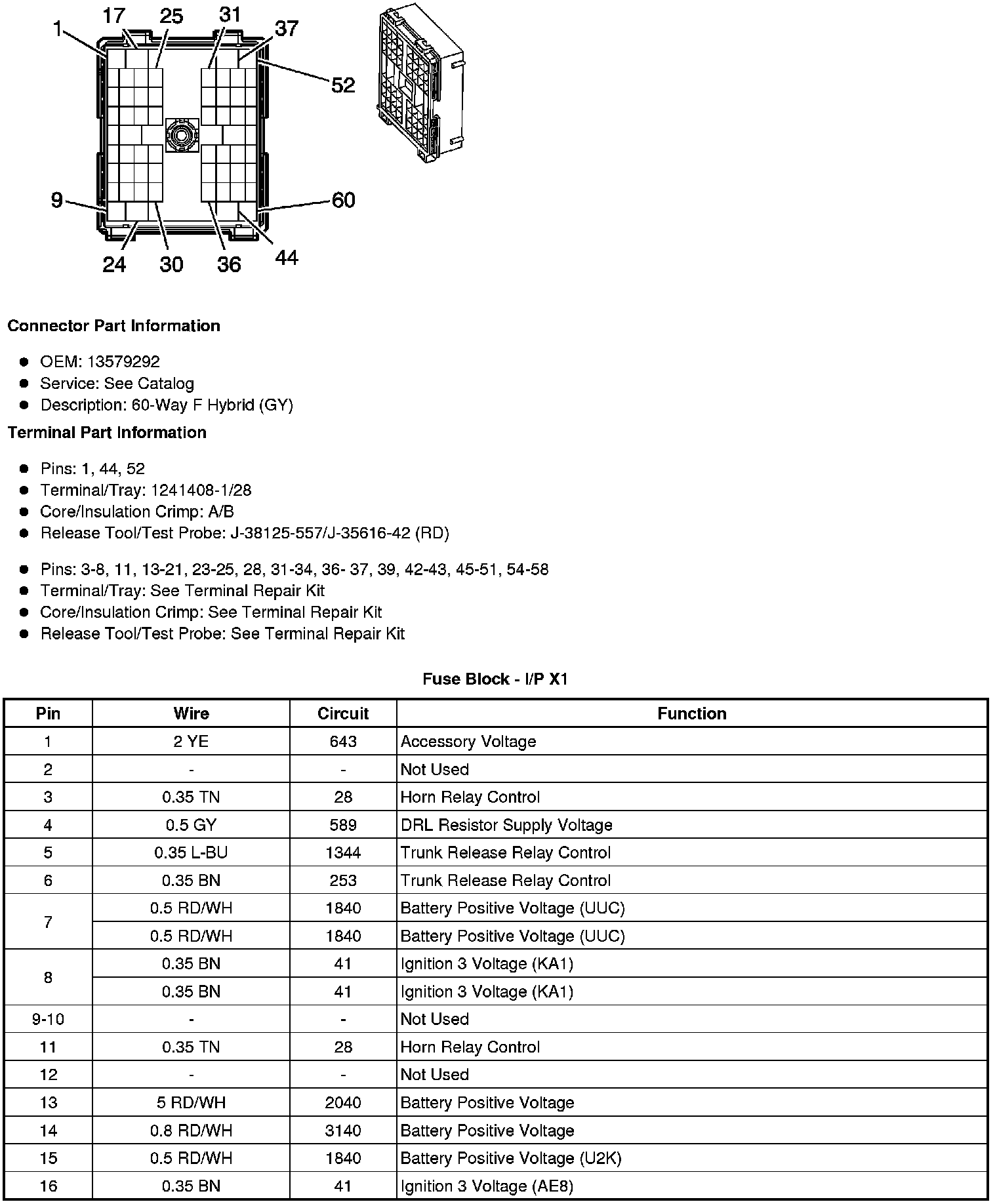

Fuse Block - I/P X1

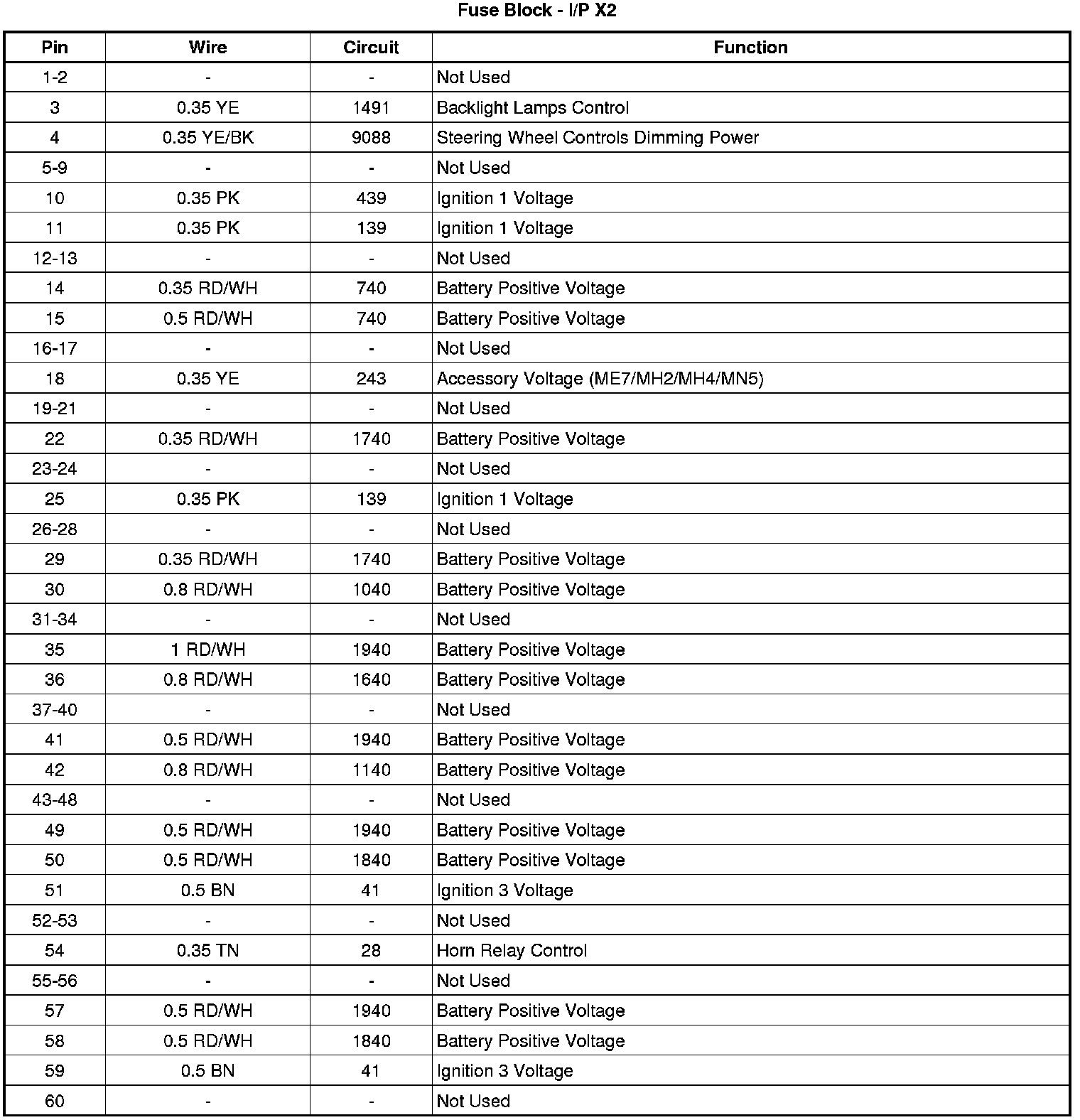

Fuse Block - I/P X2
