Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

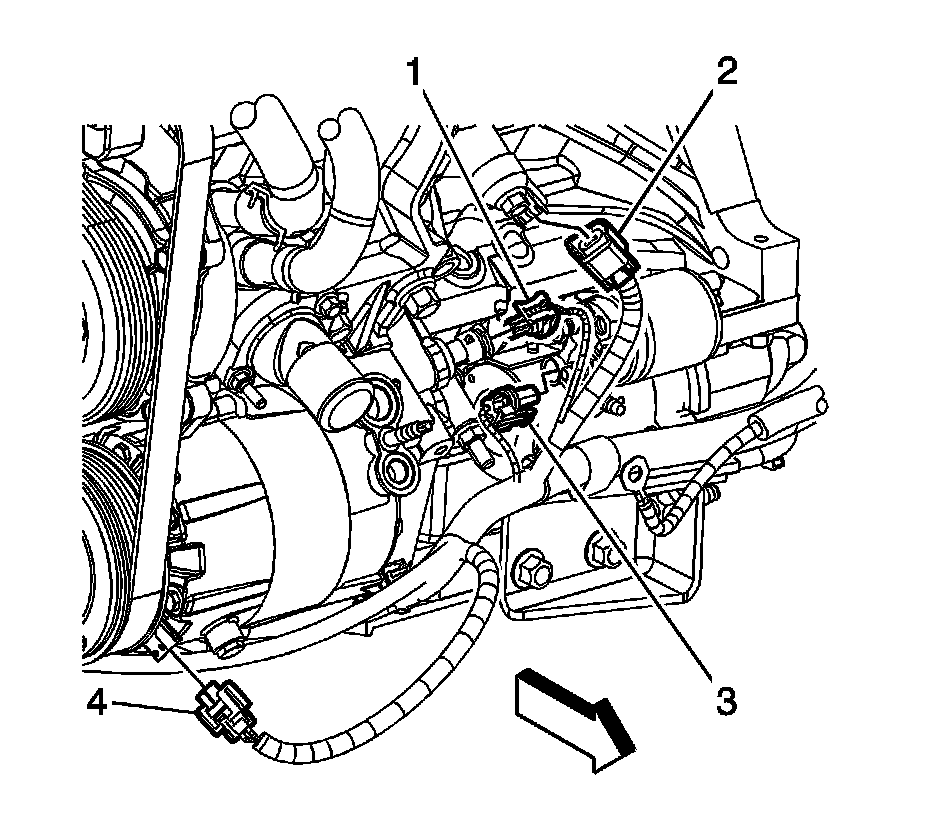

2. Disconnect the engine oil pressure sensor/switch electrical connector (1).




3. Remove the engine oil pressure sensor/switch.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the engine oil pressure sensor/switch.

Tighten the sensor to 16 N.m (12 lb ft).





2. Connect the engine oil pressure sensor/switch electrical connector (1).
