Power Window Switch

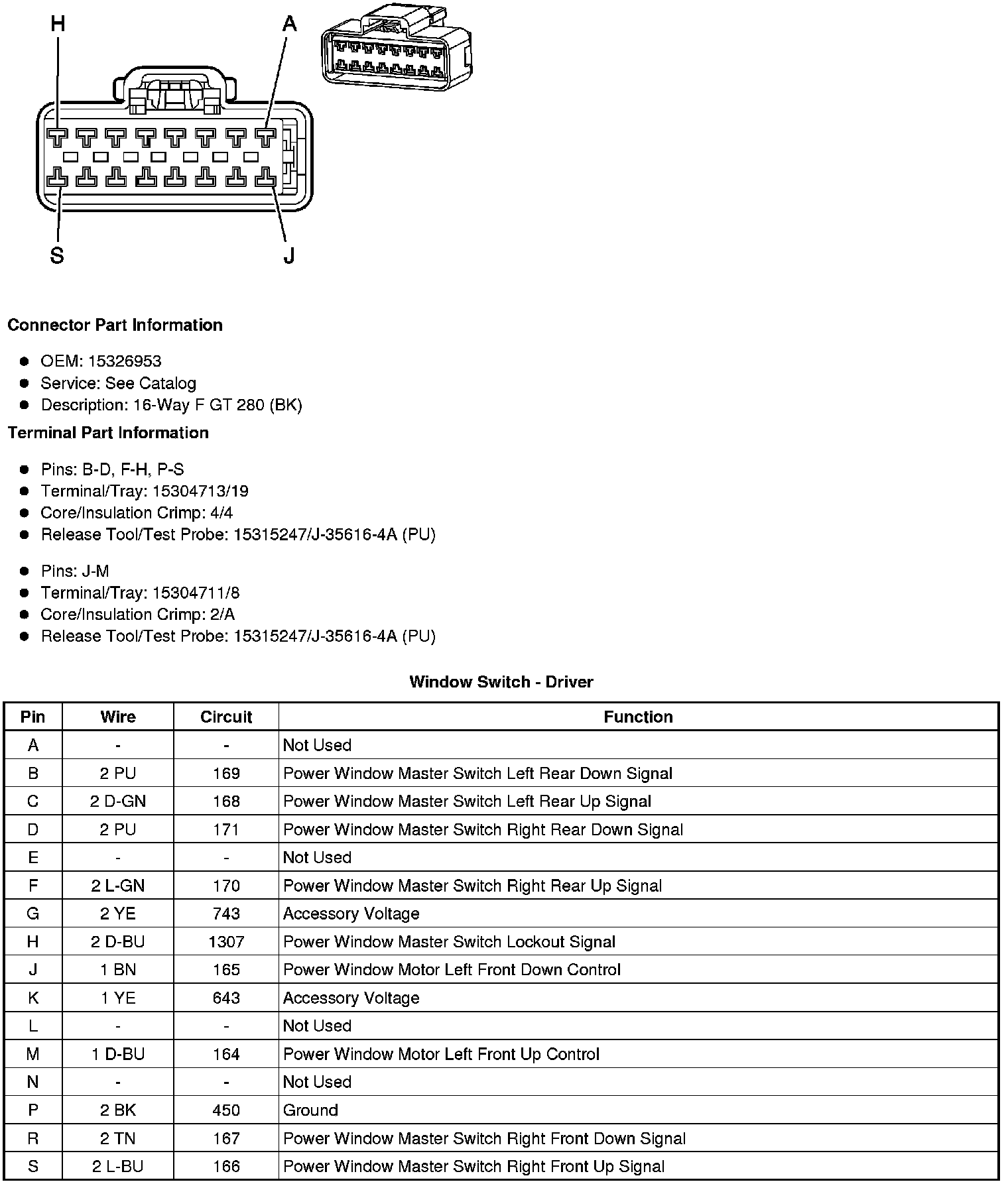

Window Switch - Driver

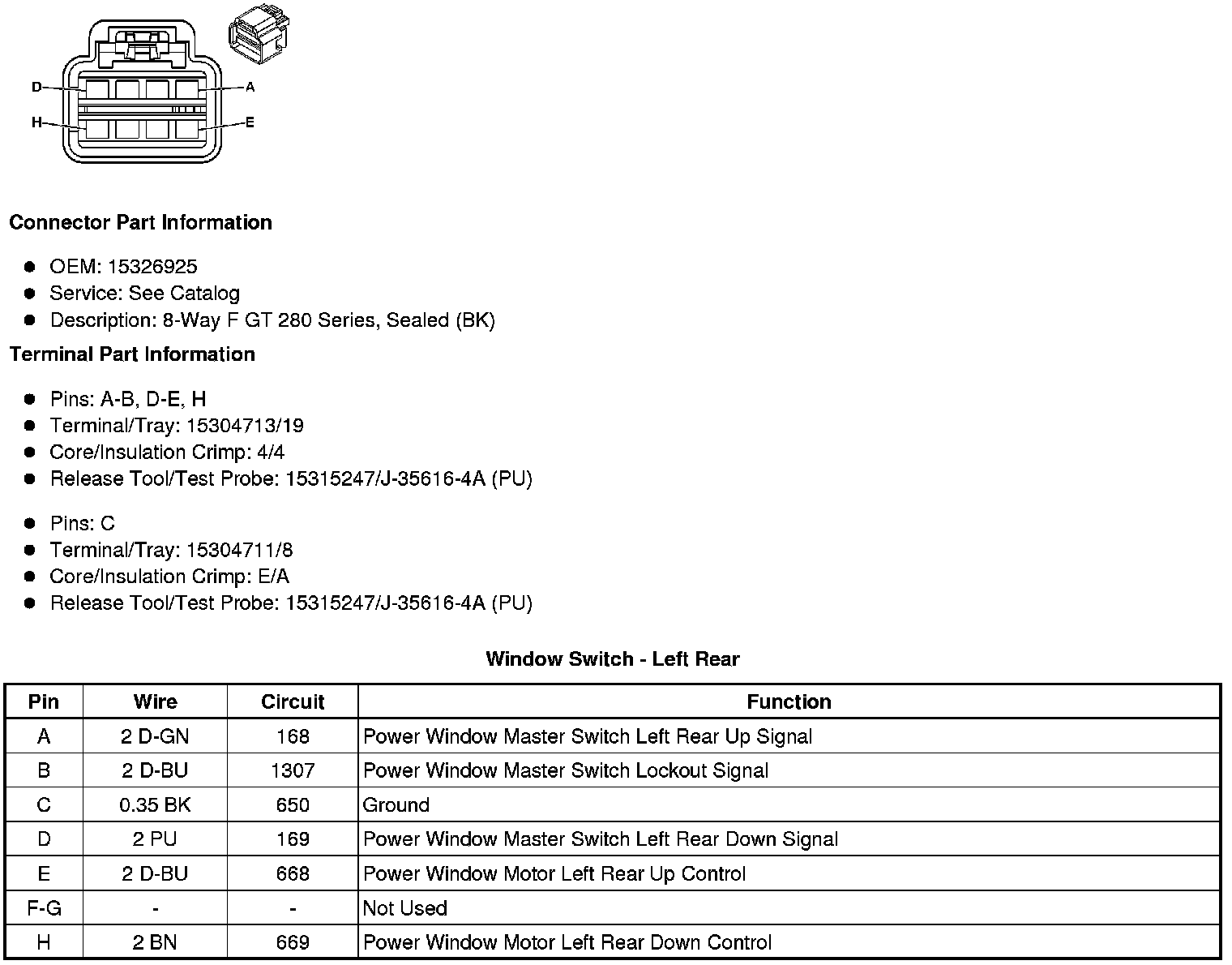

Window Switch - Left Rear

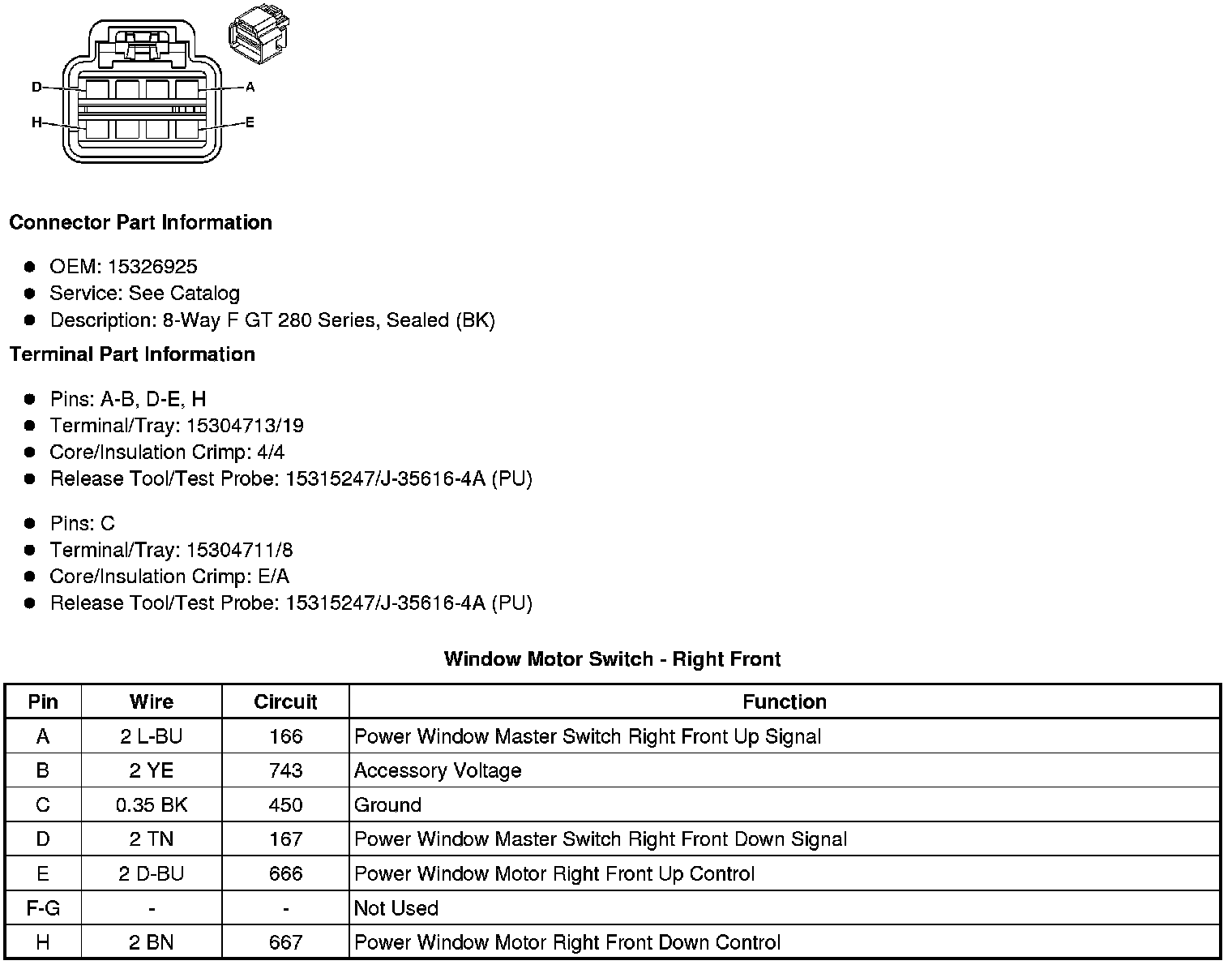

Window Switch - Right Front

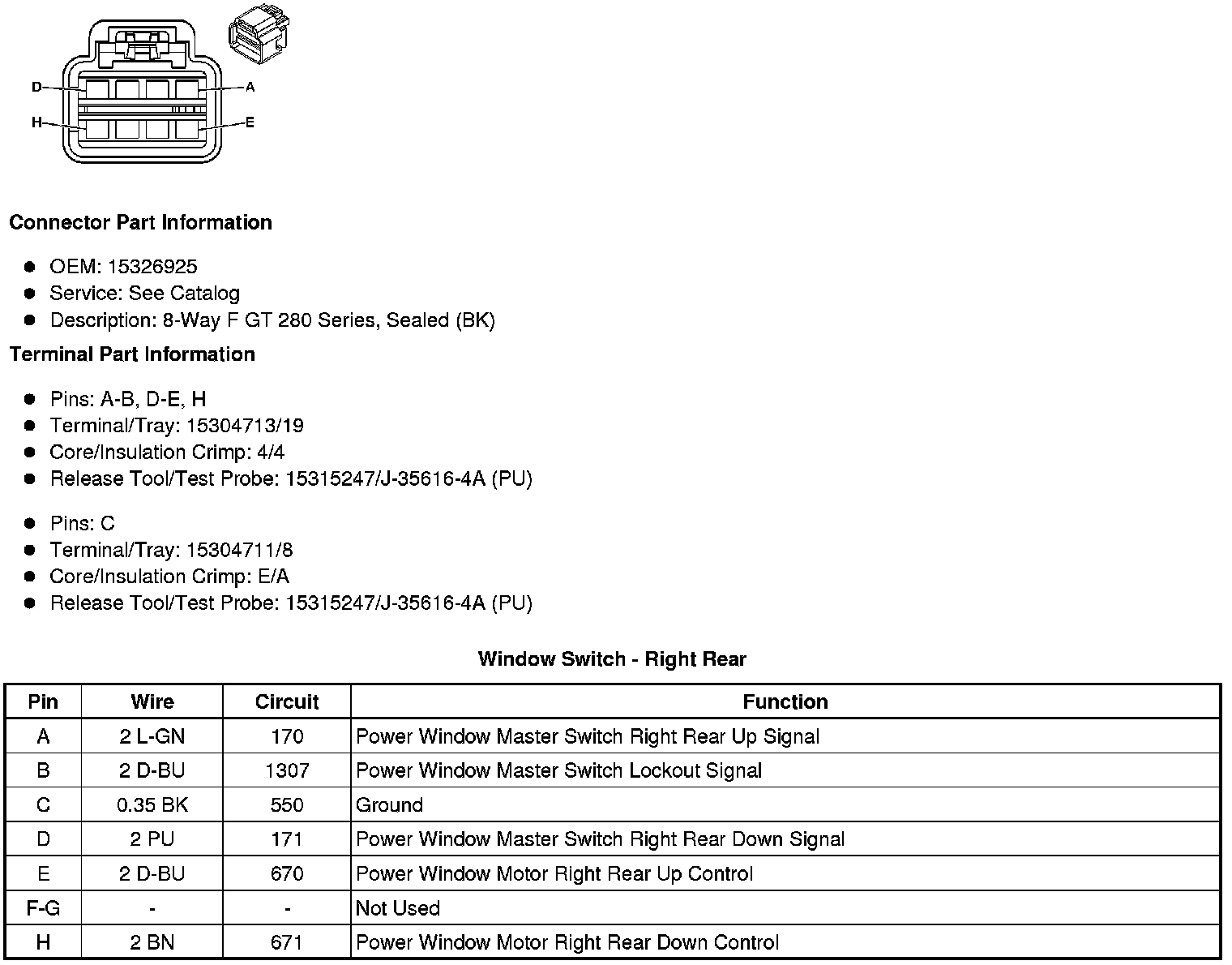

Window Switch - Right Rear
