Oil Pan, Engine

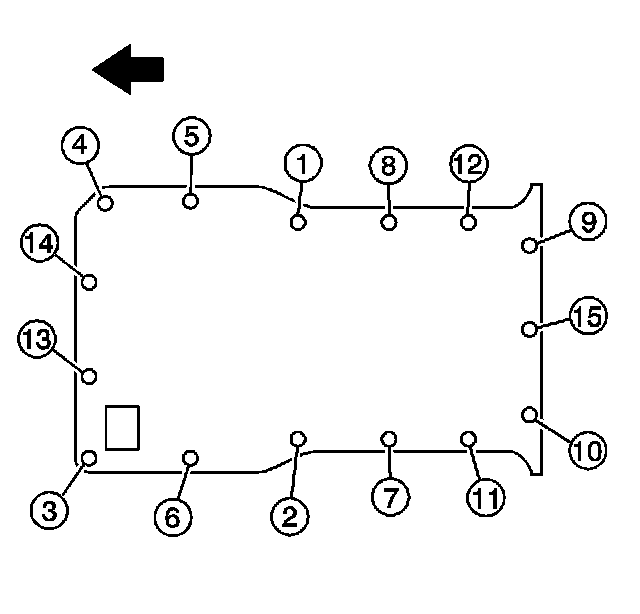

Tighten the oil pan bolts in the sequence shown



oil pan to transaxle bolts 75 N.m (55 lb ft)
oil pan bolts 25 N.m (18 lb ft)
