Instrument Panel/Center Console Component Views

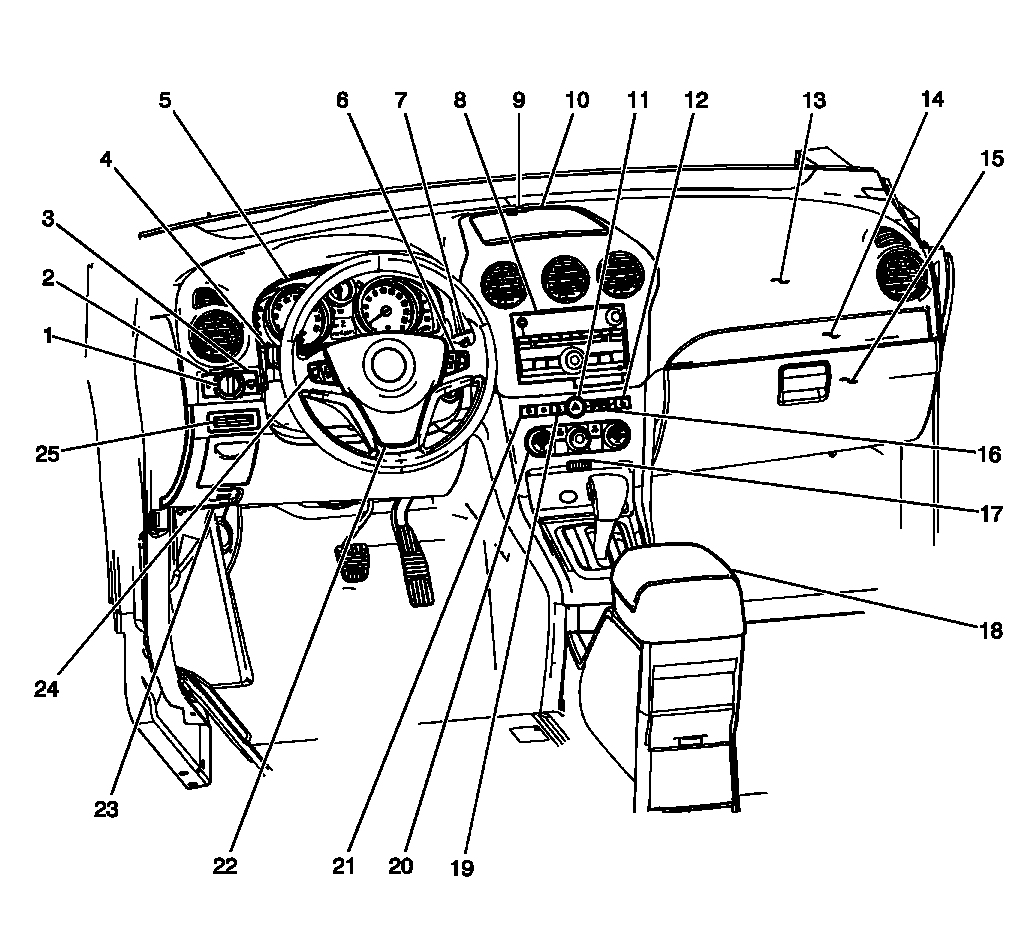

Fig 1: Instrument Panel Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Fog Lamp Switch (T37/T96)
3	I/P Dimmer Switch
4	Turn Signal/Multifunction Switch
5	Instrument Panel Cluster (IPC)
6	Steering Wheel Control Switch - Right (UK3)
7	Windshield Wiper/Washer Switch - Front
8	Radio
9	Ambient Light Sensor (C67)/Sunload Sensor (C68)
10	Speaker - Center (U61)
11	Hazard Switch
12	Inflatable Restraint Passenger Presence Indicator
13	Inflatable Restraint I/P Module
14	I/P Compartment Lamp
15	I/P Compartment Lamp Switch
16	Inside Air Temperature Aspirator Assembly (C68)
17	Floor Console
18	Rear Seat Audio Module (UUC)
19	Traction Control Switch
20	HVAC Control Module
21	Windshield Wiper/Washer Switch - Rear
22	Inflatable Restraint Steering Wheel Module
23	Data Link Connector (DLC)
24	Steering Wheel Control Switch - Left (UK3)

Fig 2: Lower Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	Accelerator Pedal Position (APP) Sensor

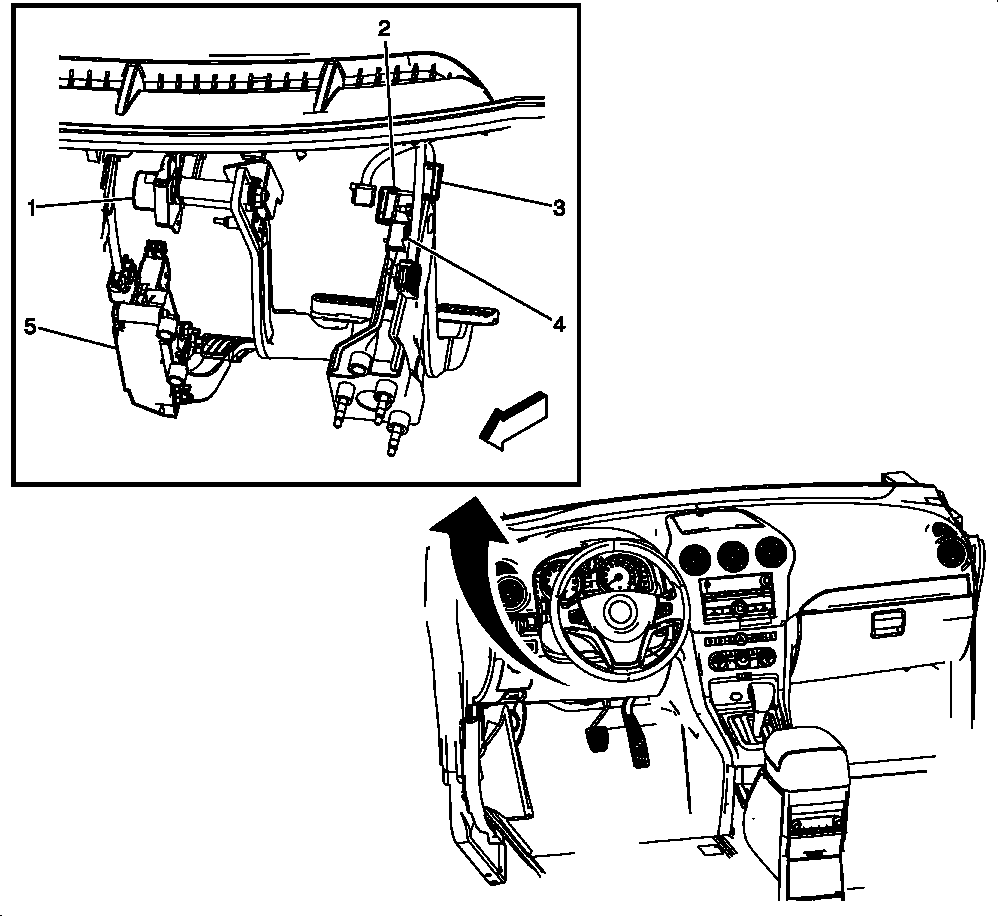

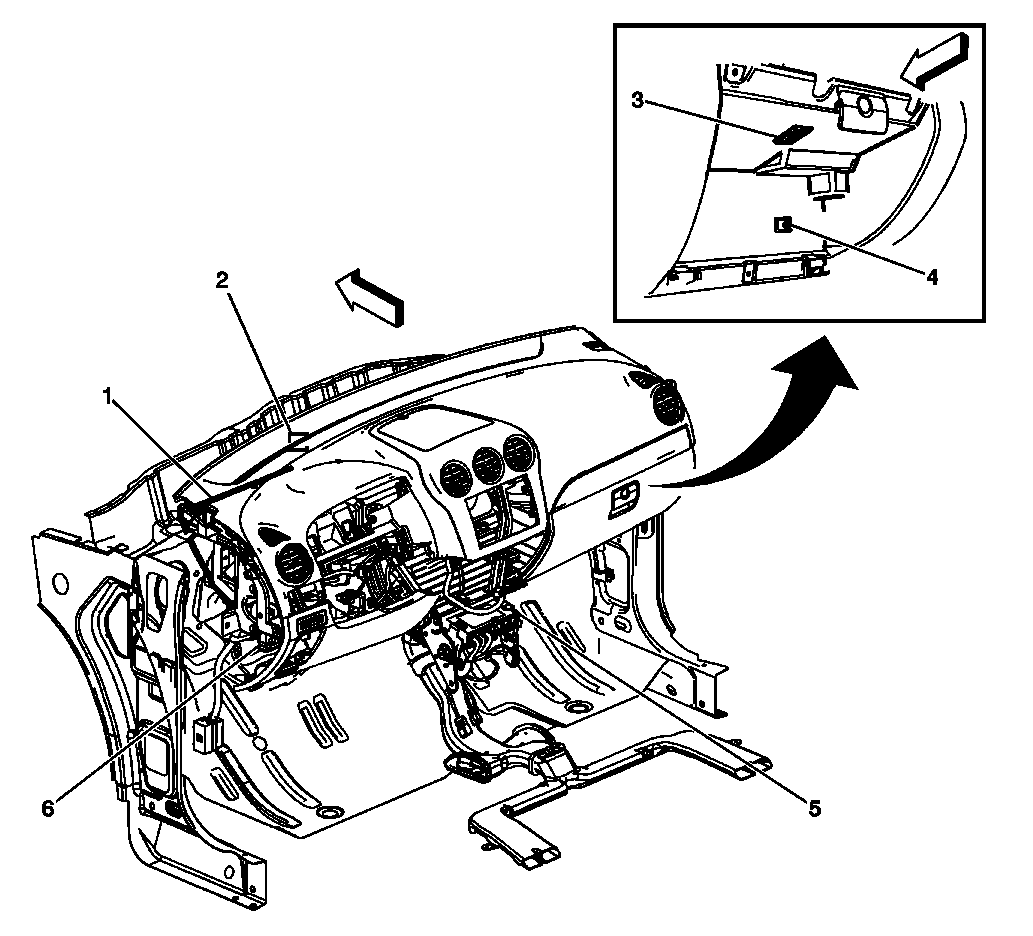

Fig 3: Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) Antenna (AP3)
2	I/P Compartment Lamp
3	I/P Compartment Lamp Switch
4	Body Control Module (BCM)
5	Remote Control Door Lock Receiver (RCDLR)

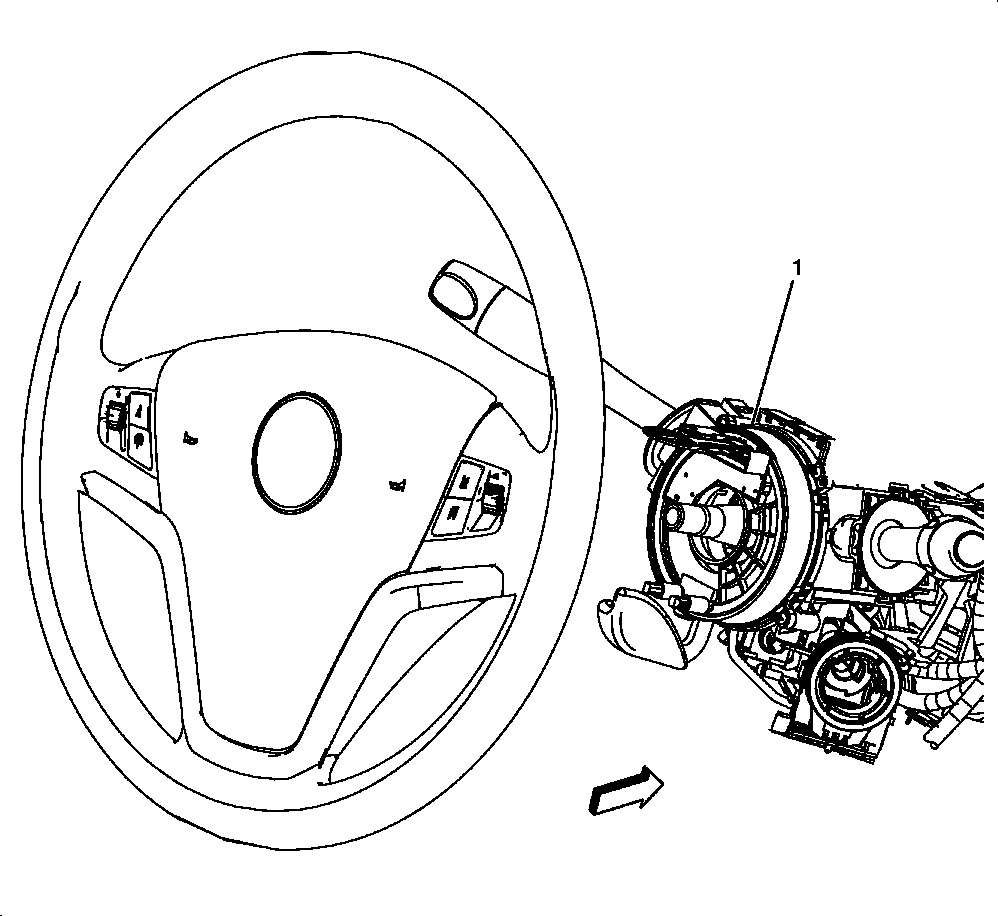

Fig 4: Steering Column Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil

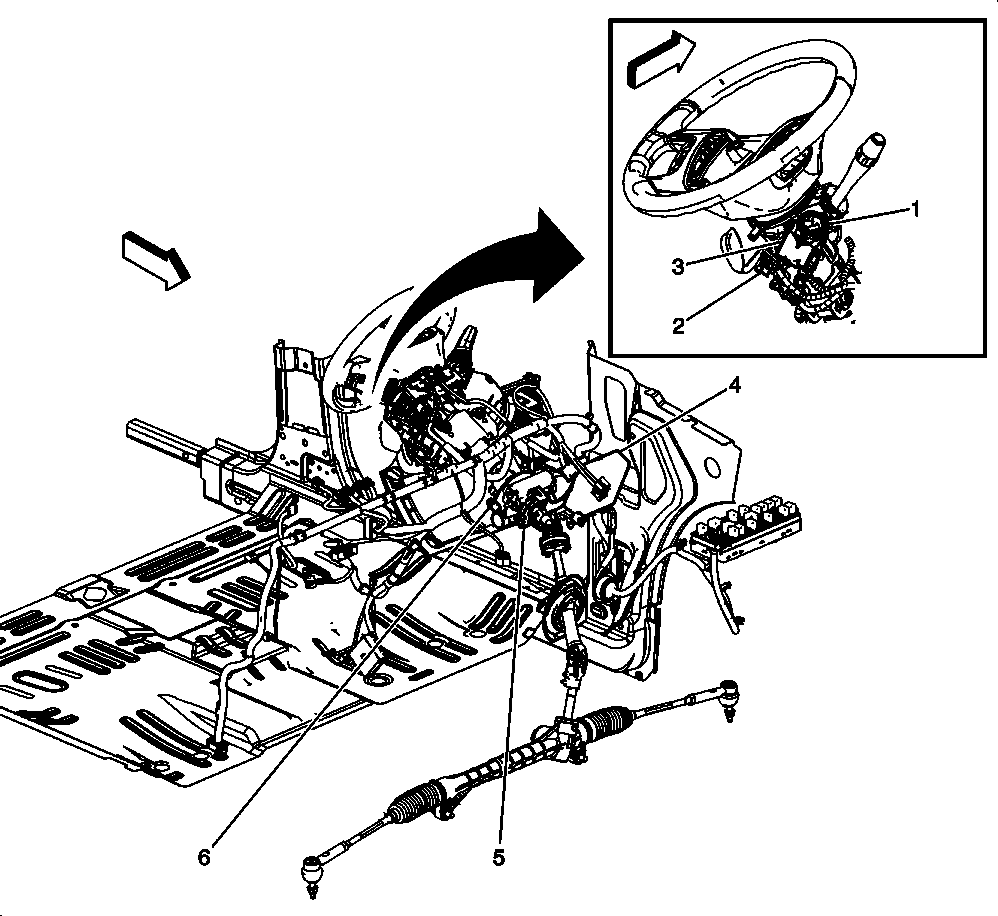

Fig 5: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Ignition Lock Cylinder Control Solenoid (With ME7/MN5)
3	Theft Deterrent Module (TDM)
4	Power Steering Control Module (With HP7)
5	Steering Angle Sensor (Without HP7)
6	Steering Shaft Torque Sensor (With HP7)

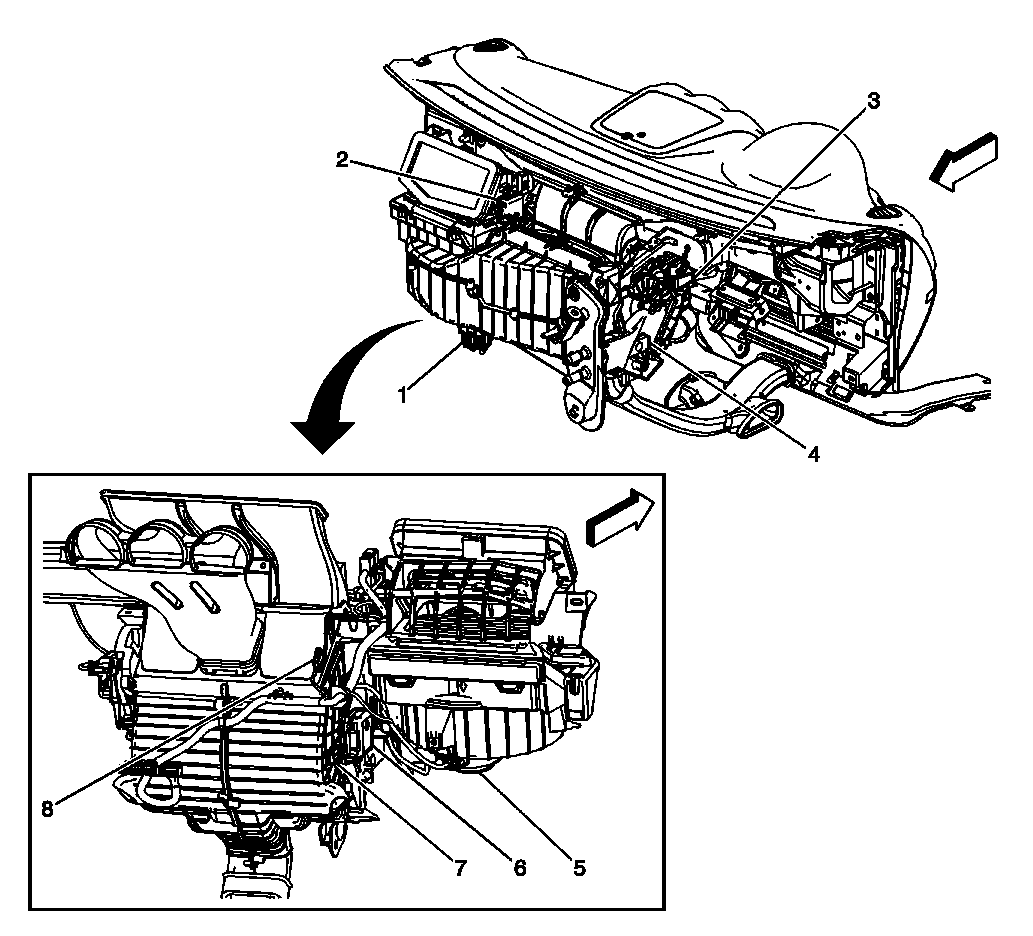

Fig 6: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Control Module (With C68)
2	Recirculation Actuator
3	Mode Actuator
4	Evaporator Temperature Sensor
5	Blower Motor
6	Air Temperature Actuator - Right
7	Air Temperature Sensor - Lower (C68)
8	Air Temperature Sensor - Upper (C68)

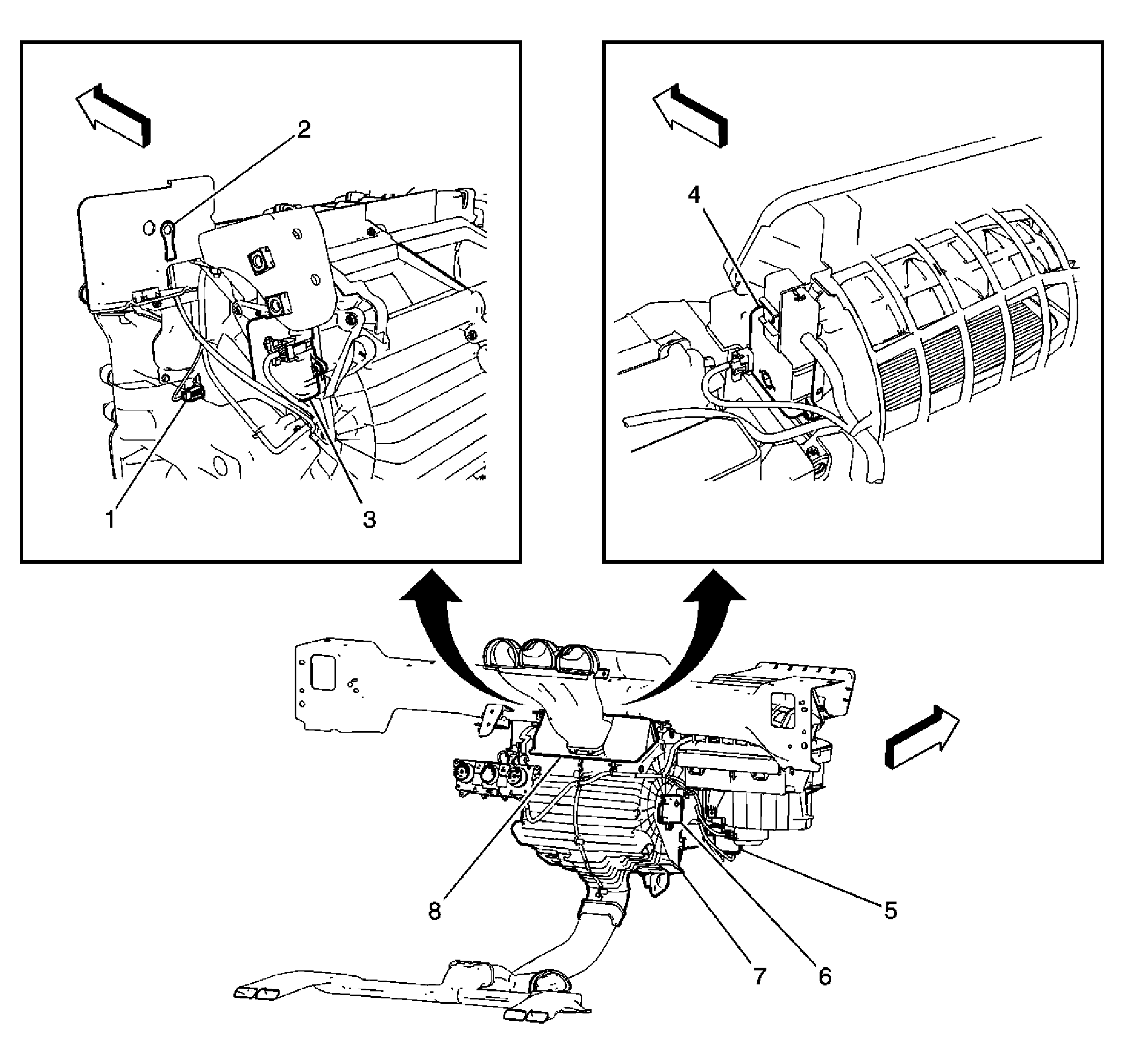

Fig 7: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	EVAP Temperature Sensor
2	G202
3	Mode Actuator
4	Recirculation Actuator
5	Blower Motor Control Module (C68)
6	Air Temperature Actuator - Right
7	Air Temperature Sensor - Lower (C68)
8	Air Temperature Sensor - Upper (C68)

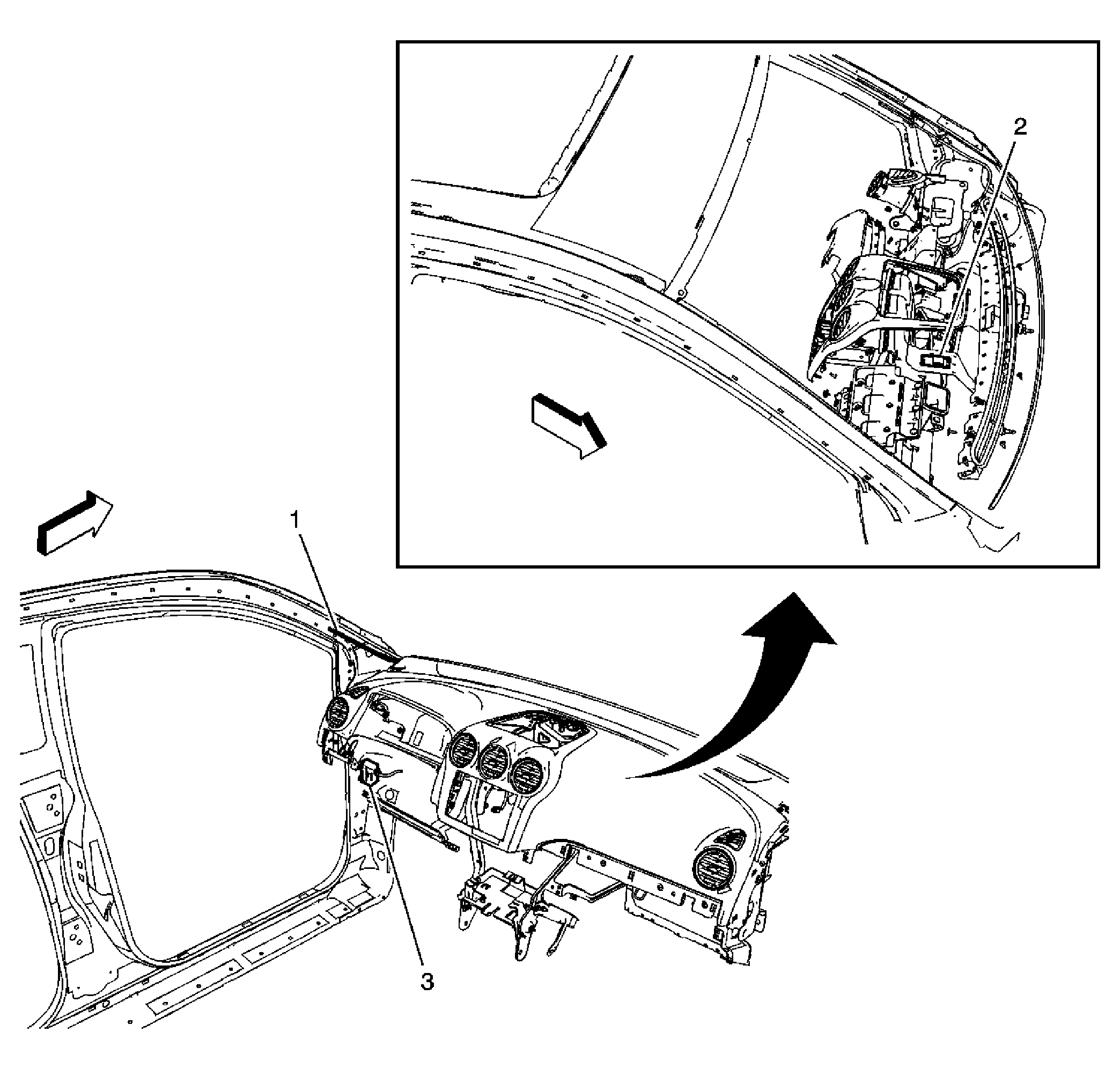

Fig 8: Instrument Panel Antenna Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) Antenna (AP3)
2	GPS Antenna
3	RCDLR

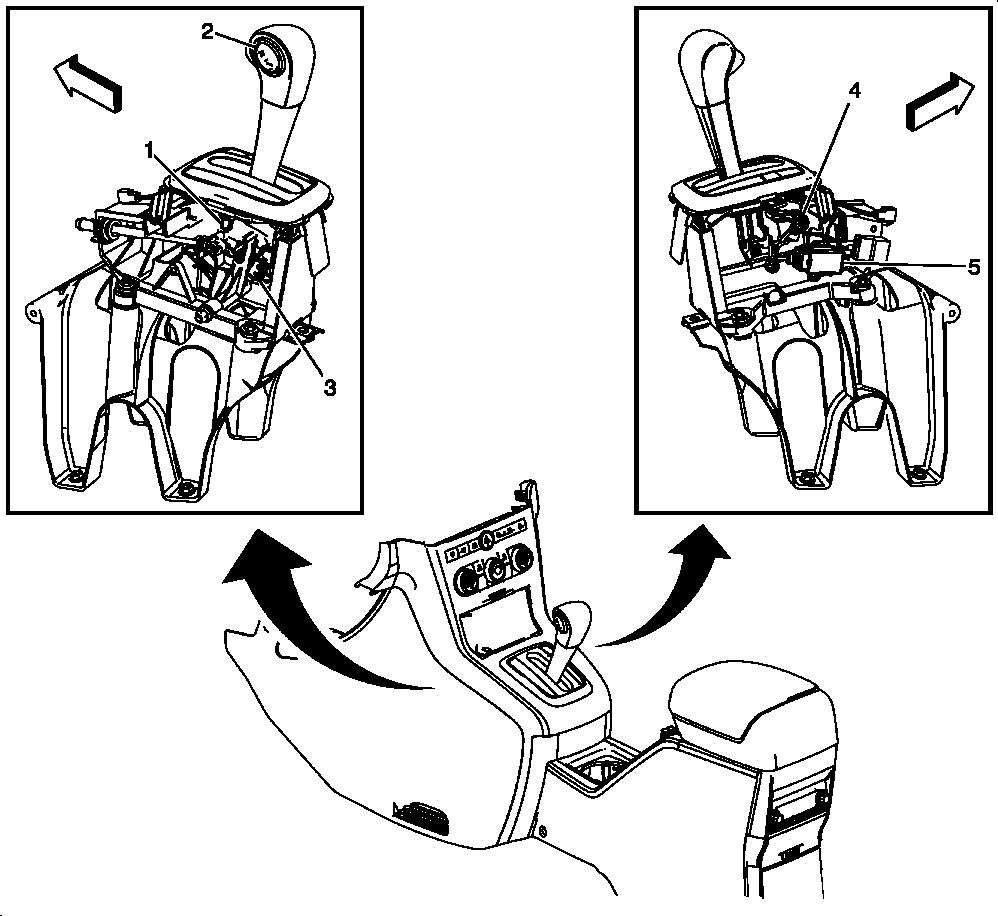

Fig 9: A/T Floor Shift Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	PRNDL Lamp
2	Momentary Switch
3	Shift Lock Control Solenoid
4	Momentary Switch

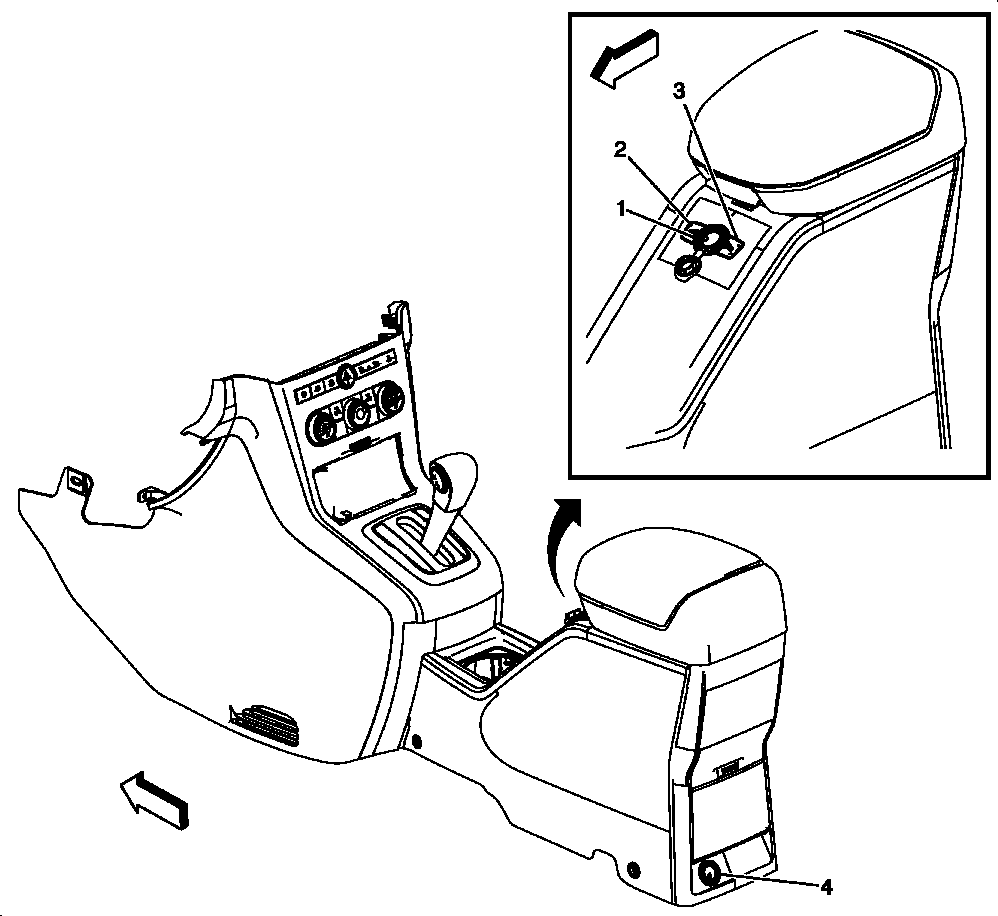

Fig 10: Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Heated Seat Switch - Passenger (KA1)
3	Heated Seat Switch - Driver (KA1)
4	Rear Seat Audio Module (UUC)
5	Audio/Video Adapter (UUC)
6	Accessory Power Outlet 2
