Garage Door Opener Replacement

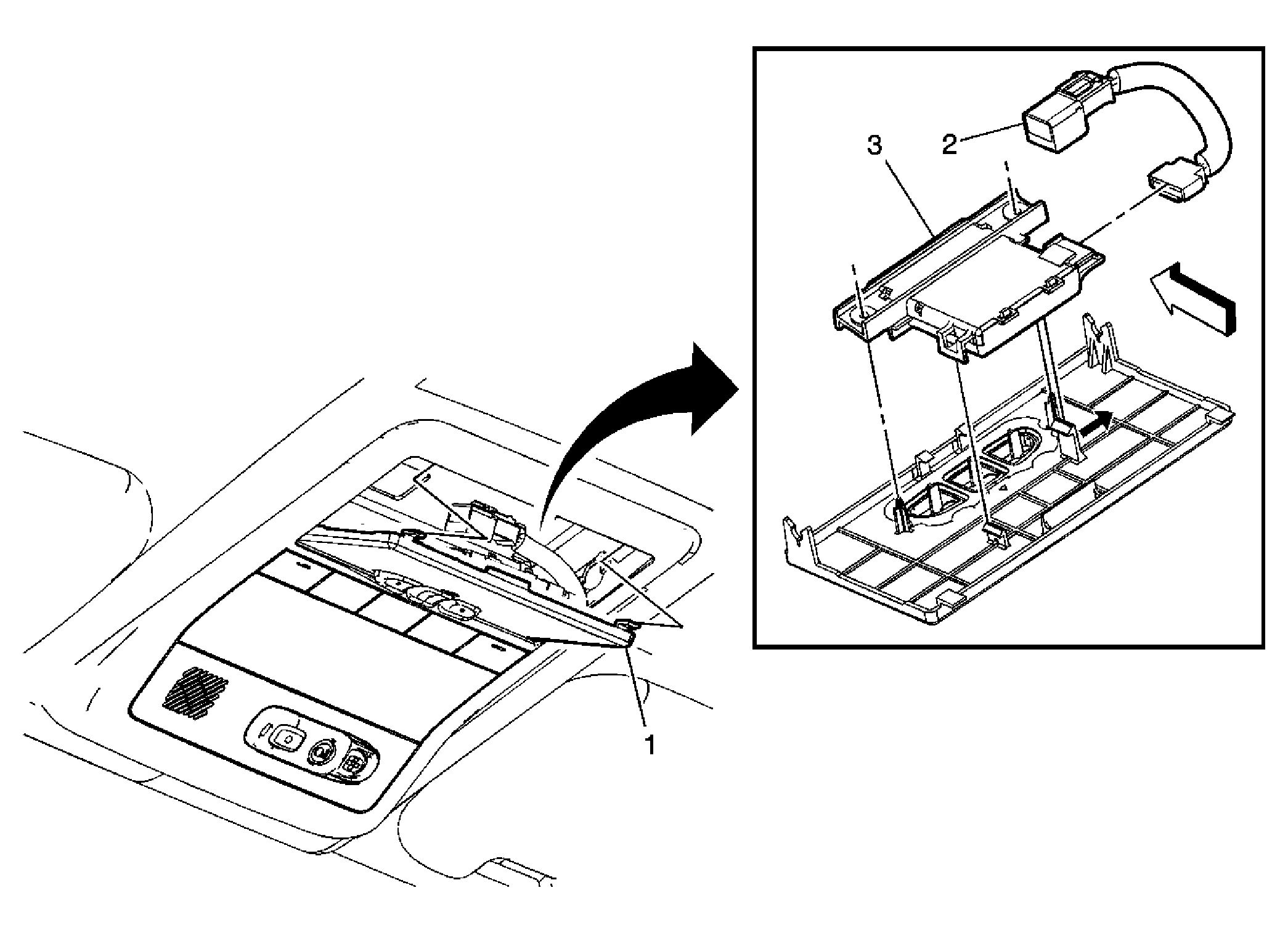

Fig 1: Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener Transmitter Bezel Procedure: Carefully use a plastic flat bladed tool to release the two tabs on the bezel door.
2	Garage Door Opener Transmitter Push Button Extension Procedure: Disconnect the electrical connector.
3	Garage Door Opener Transmitter Assembly
