Front Compartment Sight Shields Replacement
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

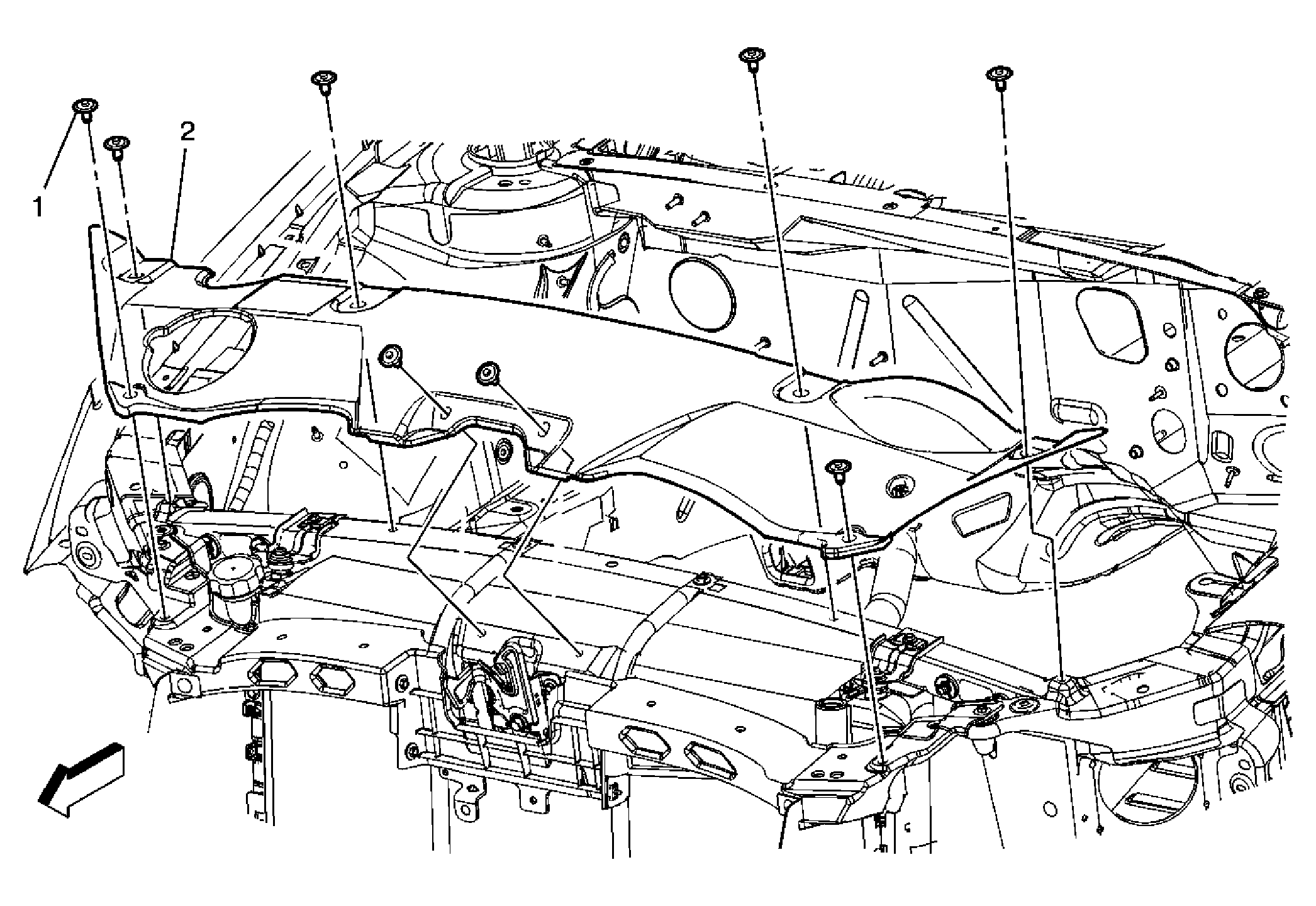

Courtesy of GENERAL MOTORS CORP. Front Compartment Sight Shields Replacement
| Callout |
Component Name |
| 1 |
Radiator Support Sight Shield Fasteners (Qty: 8)
Tip:
Push in center of retainer using pick to release. |
| 2 |
Radiator Support Sight Shield |
