Front Fender Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

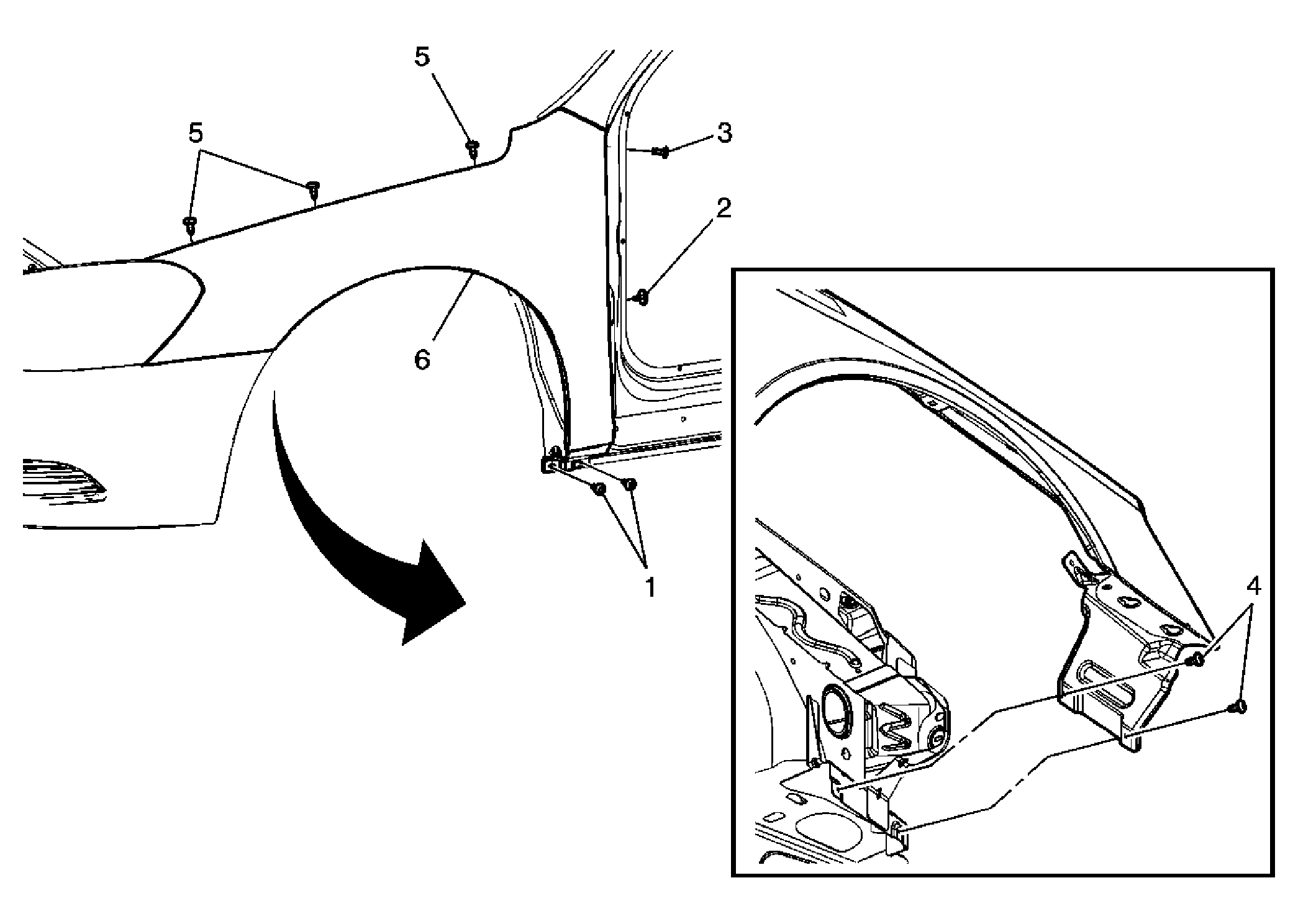

Fig 1: Removing/Installing Front Fender

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the upper headlamp bolt. Refer to Headlamp Replacement . Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement . Remove wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	NOTE: Refer to Fastener Notice . Front Fender Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Front Fender Bolt Tighten: 10 N.m (89 lb in)
3	Front Fender Bolt Tighten: 10 N.m (89 lb in)
4	Front Fender Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
5	Front Fender Bolt (Qty: 4) Tighten: 10 N.m (89 lb in)
6	Front Fender Tip: Pull the fender away and slide rearward to remove.
