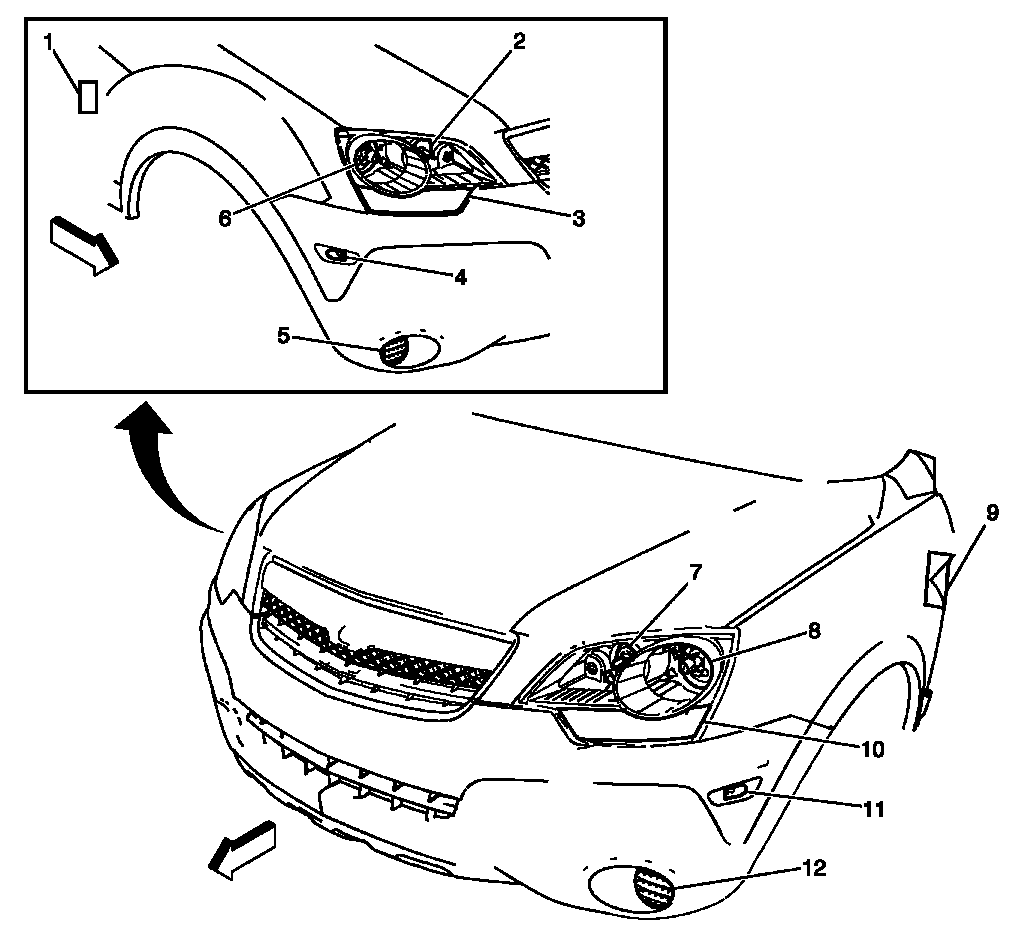

Front of Vehicle/Engine Compartment Component Views
| Callout | Component Name |
|---|---|
| 1 | Turn Signal Lamp - Right Side |
| 2 | Headlamp - Right High Beam |
| 3 | Park/Turn Signal Lamp - Right Front |
| 4 | Marker Lamp - Right Front |
| 5 | Fog Lamp - Right (T37/T96) |
| 6 | Headlamp - Right Low Beam |
| 7 | Headlamp - Left High Beam |
| 8 | Headlamp - Left Low Beam |
| 9 | Turn Signal Lamp - Left Side |
| 10 | Park/Turn Signal Lamp - Left |
| 11 | Marker Lamp - Left Front |
| 12 | Front Fog Lamp - Left (T37/T96) |

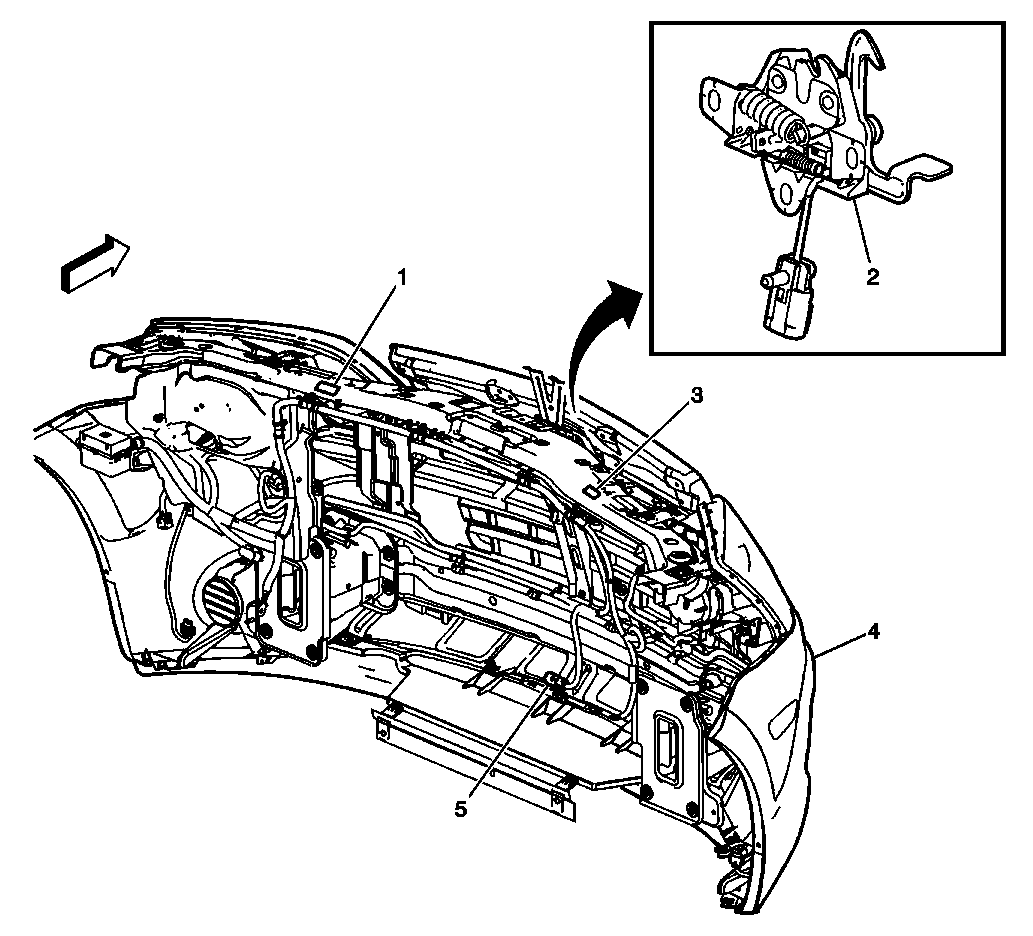

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor - Left |
| 2 | Hood Ajar Switch (AP3) |
| 3 | Inflatable Restraint Front End Sensor - Right |
| 4 | Front Fascia |
| 5 | Ambient Air Temperature Sensor (C68) |

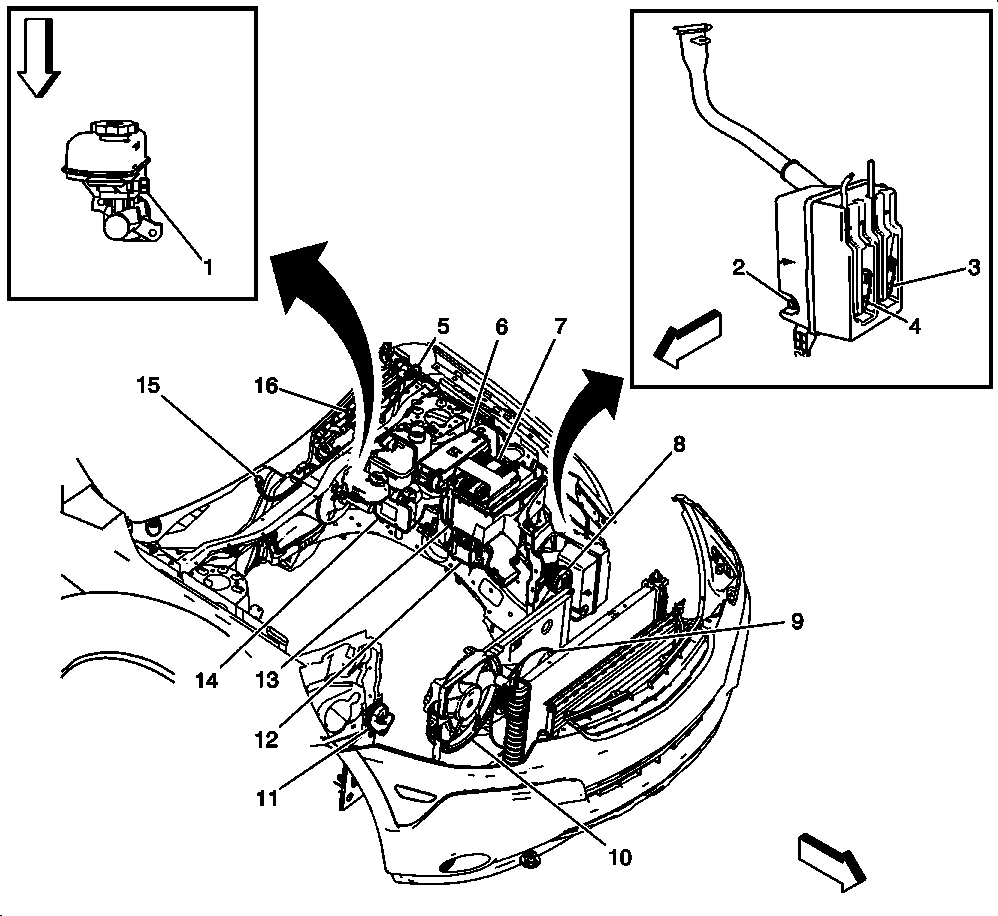

| Callout | Component Name |
|---|---|
| 1 | Brake Fluid Level Switch |
| 2 | Coolant Outlet |
| 3 | Windshield Washer Fluid Level Switch |
| 4 | Windshield Washer Fluid Pump - Rear |
| 5 | Windshield Washer Fluid Pump - Front |
| 6 | Windshield Wiper Motor - Front |
| 7 | Fuse Block - Underhood |
| 8 | Engine Control Module (ECM) |
| 9 | Horn - Left |
| 10 | Cooling Fan - Left |
| 11 | Cooling Fan - Right |
| 12 | Horn - Right |
| 13 | Transmission Control Module (TCM) |
| 14 | Battery |
| 15 | Electronic Brake Control Module (EBCM) |
| 16 | Heated Windshield Washer Nozzle - Right (XA7) |
| 17 | Heated Windshield Washer Nozzle - Left (XA7) |

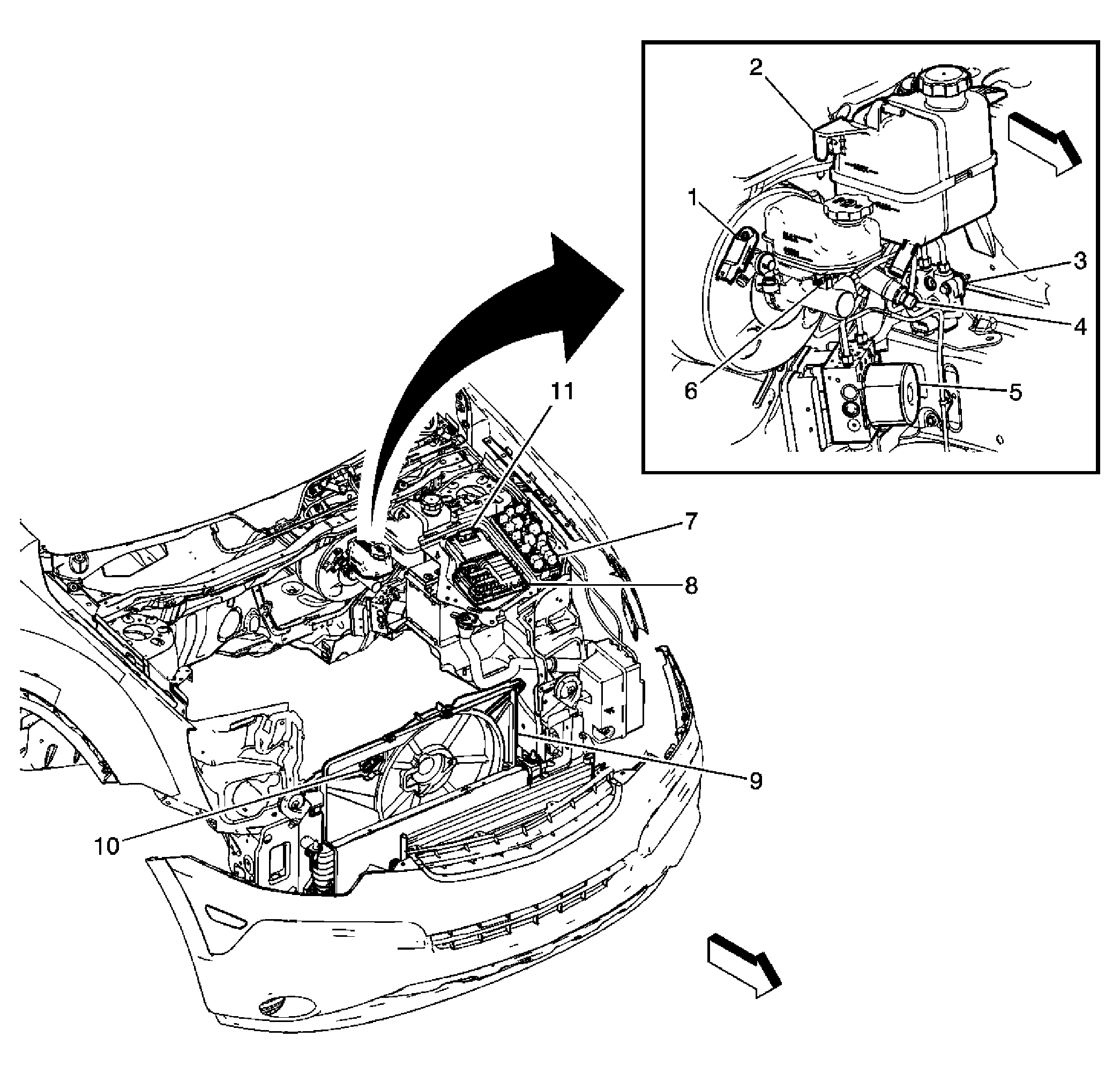

| Callout | Component Name |
|---|---|
| 1 | Brake Vacuum Sensor (HP7) |
| 2 | Surge Tank |
| 3 | Brake Hill Hold Valve (HP7) |
| 4 | Brake Fluid Pressure Sensor (HP7) |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Brake Fluid Level Switch |
| 7 | Fuse Block - Underhood |
| 8 | Engine Control Module (ECM) (LAT) |
| 9 | Cooling Fan |
| 10 | Cooling Fan Resistor |
| 11 | Transmission Control Module (TCM) (ME7) |
