Underhood Fuse Block




Electrical Center Identification Views

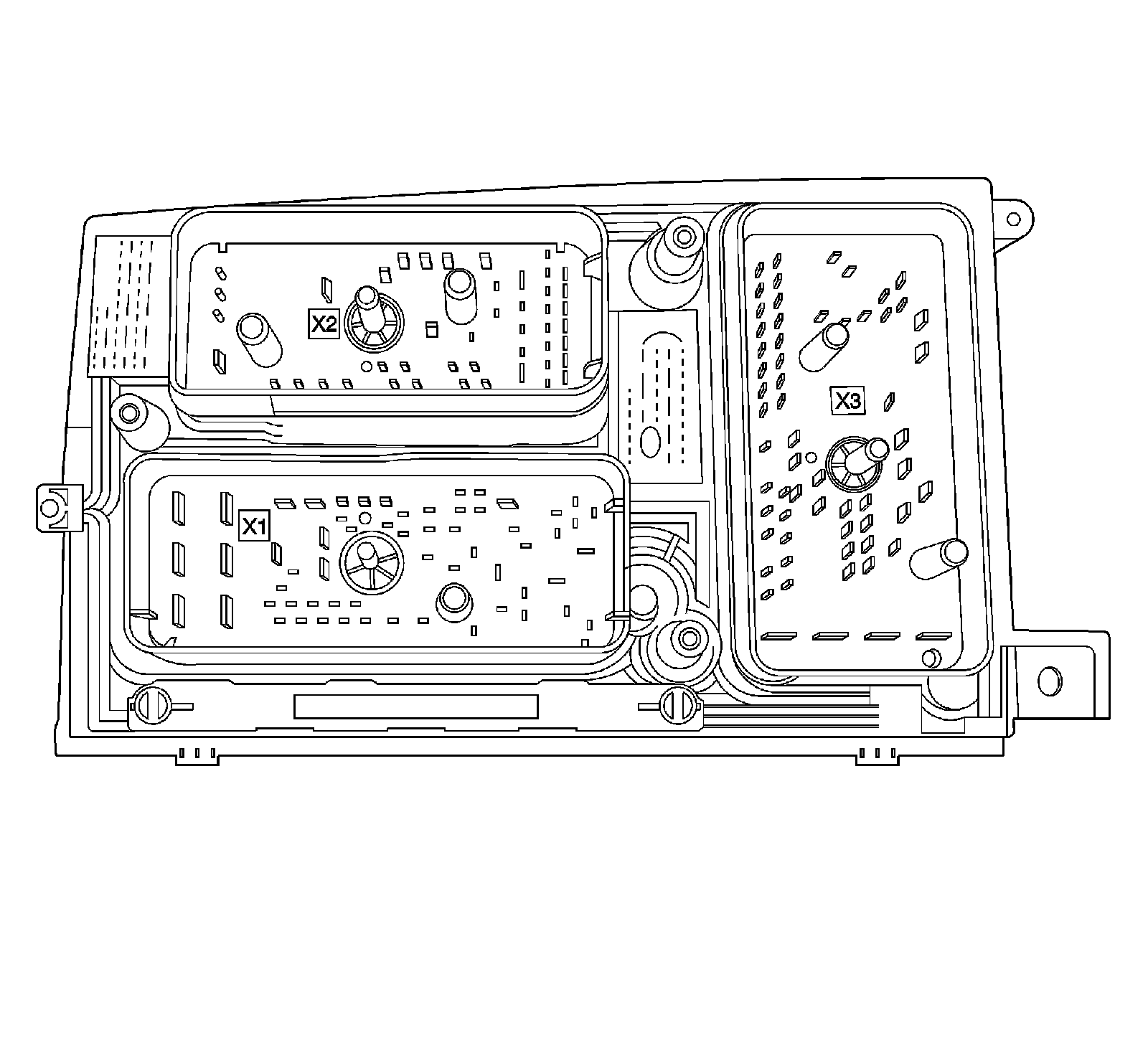

Fuse Block - Underhood - Bottom View

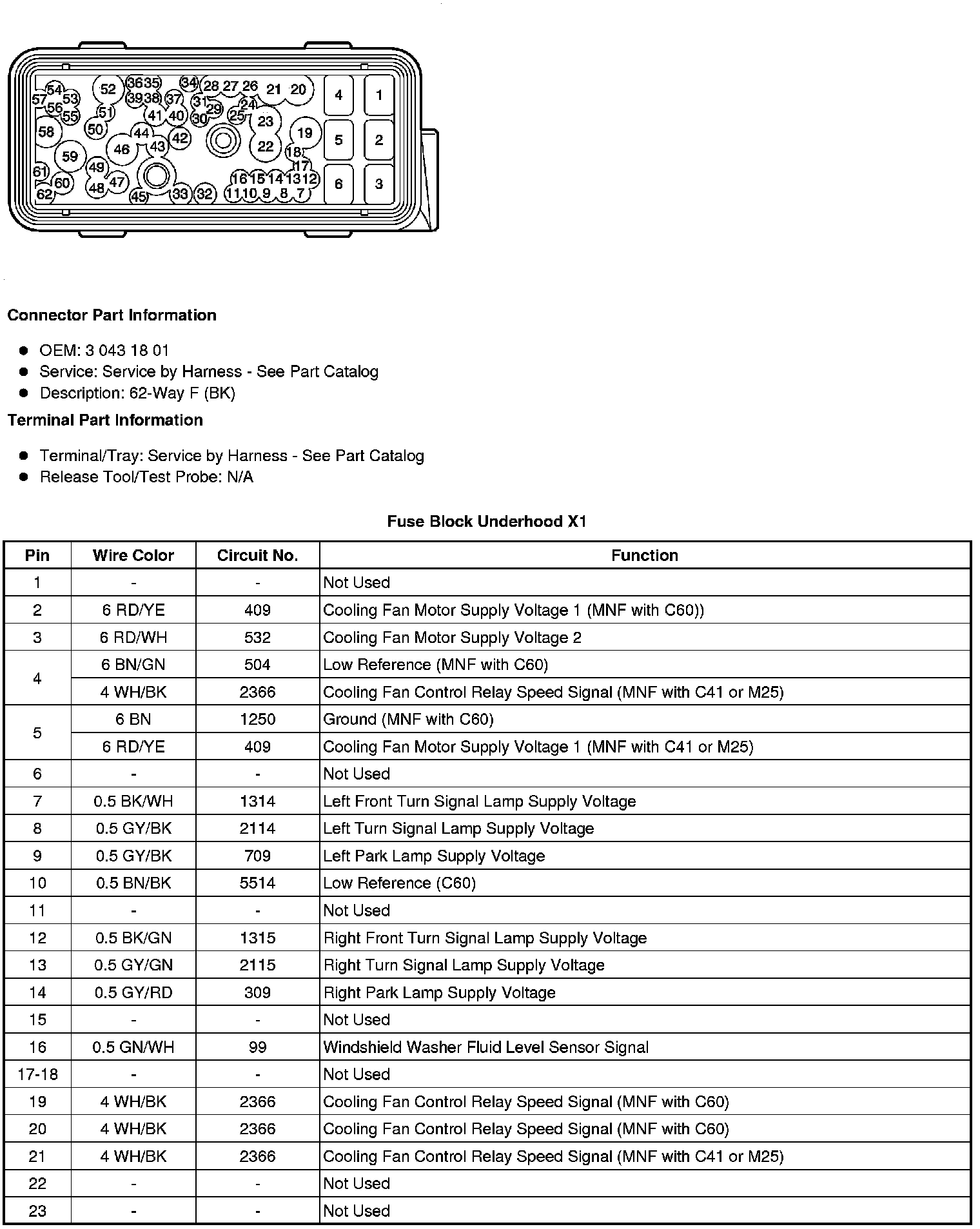

Fuse Block Underhood X1

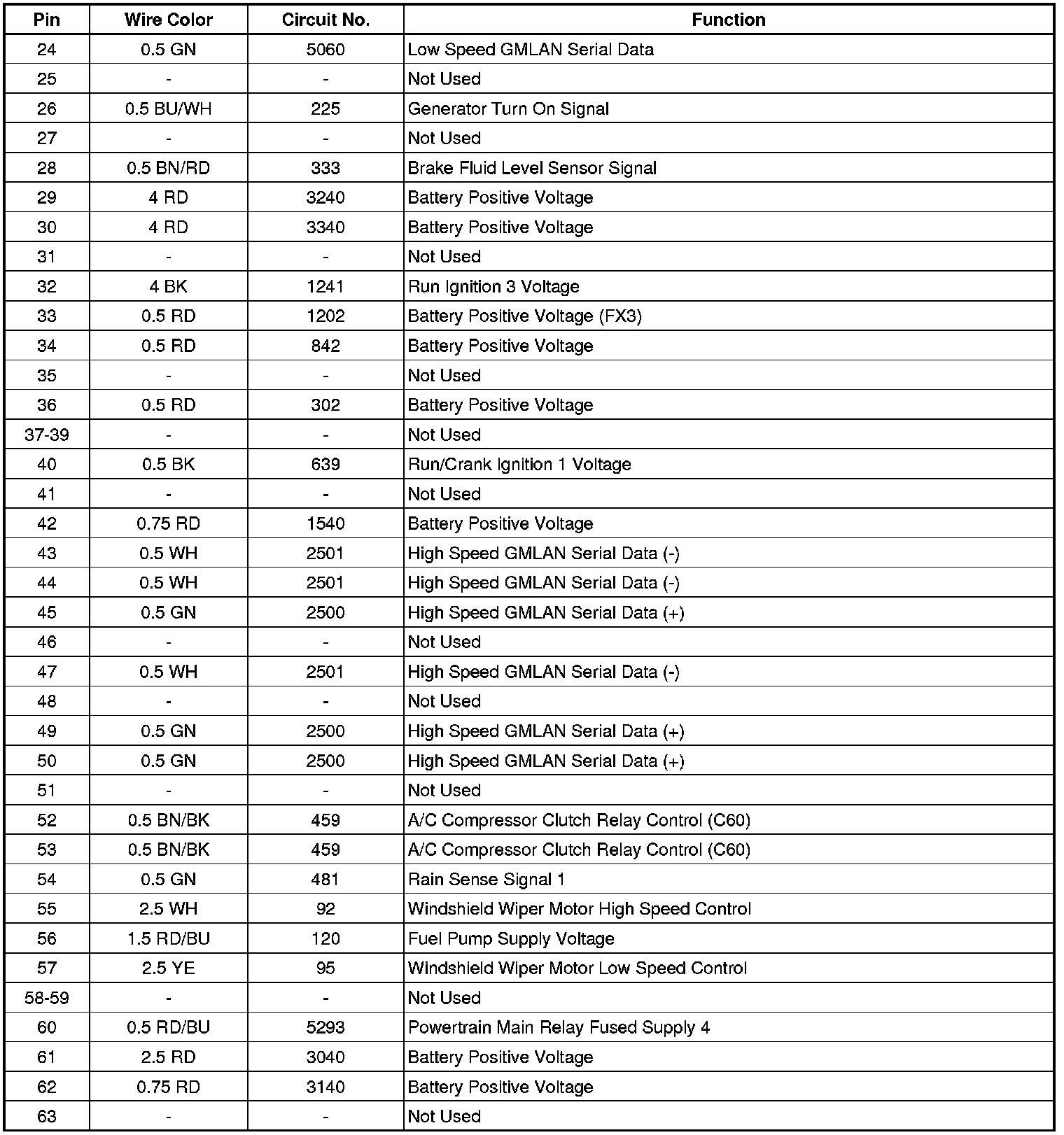

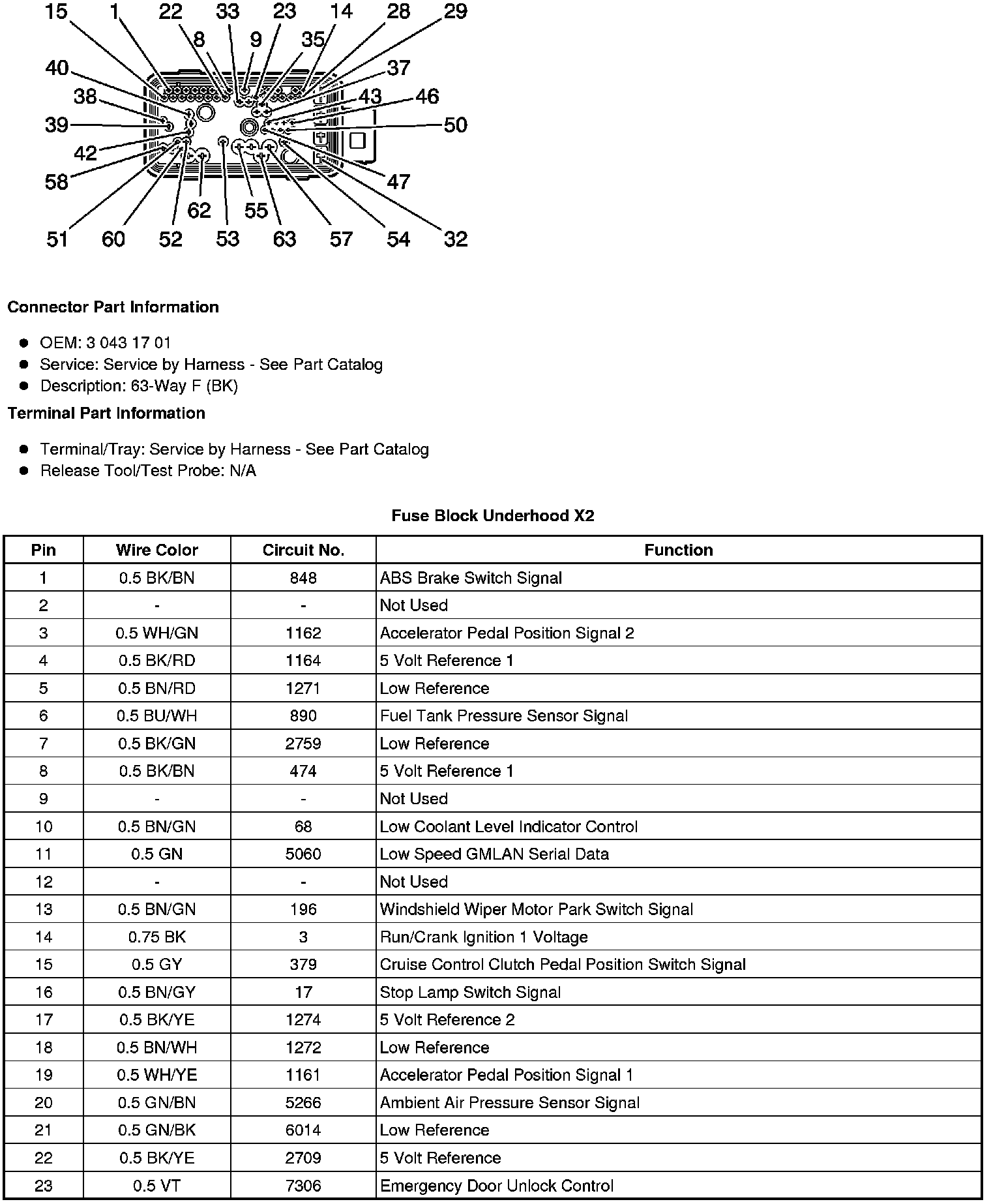

Fuse Block Underhood X2

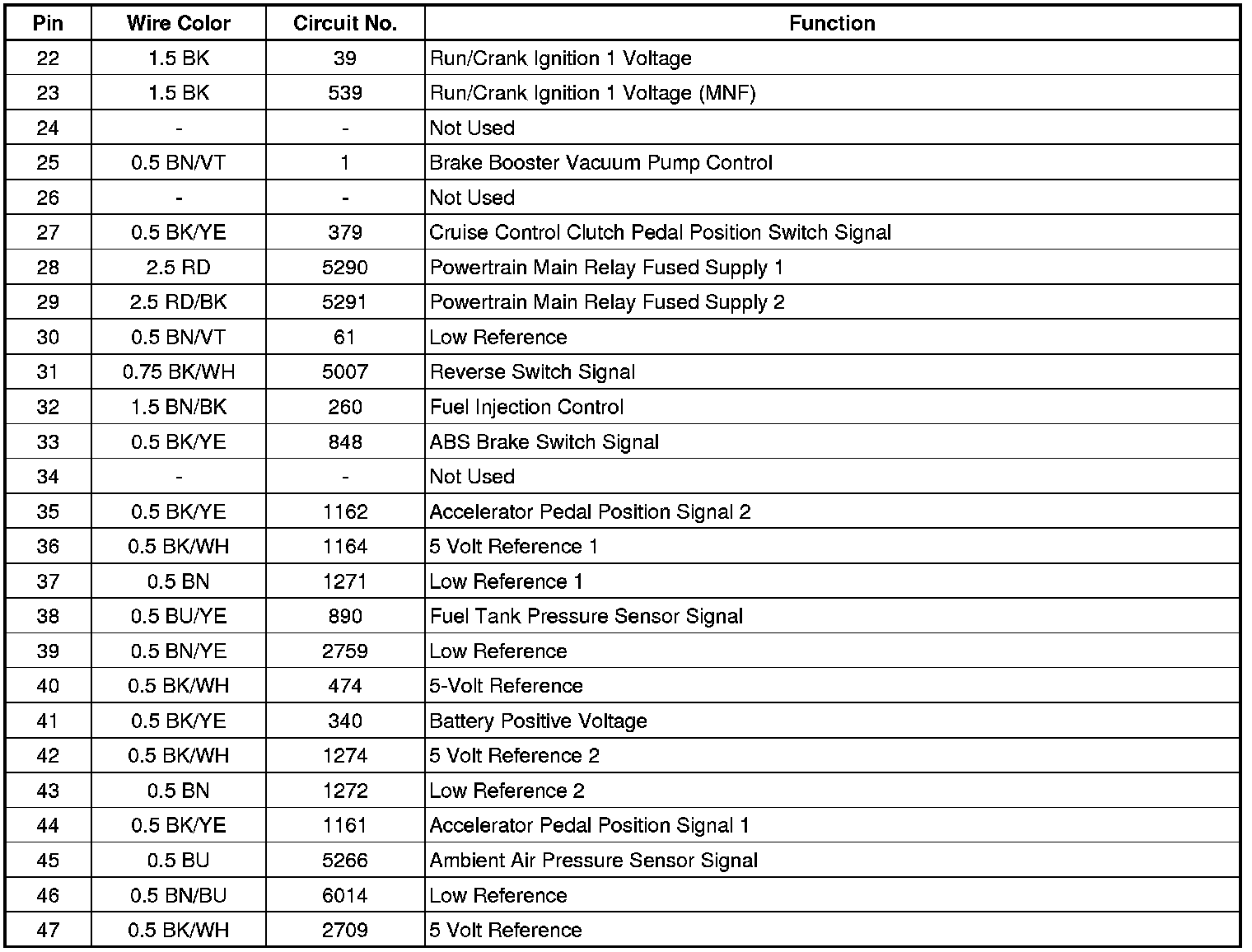

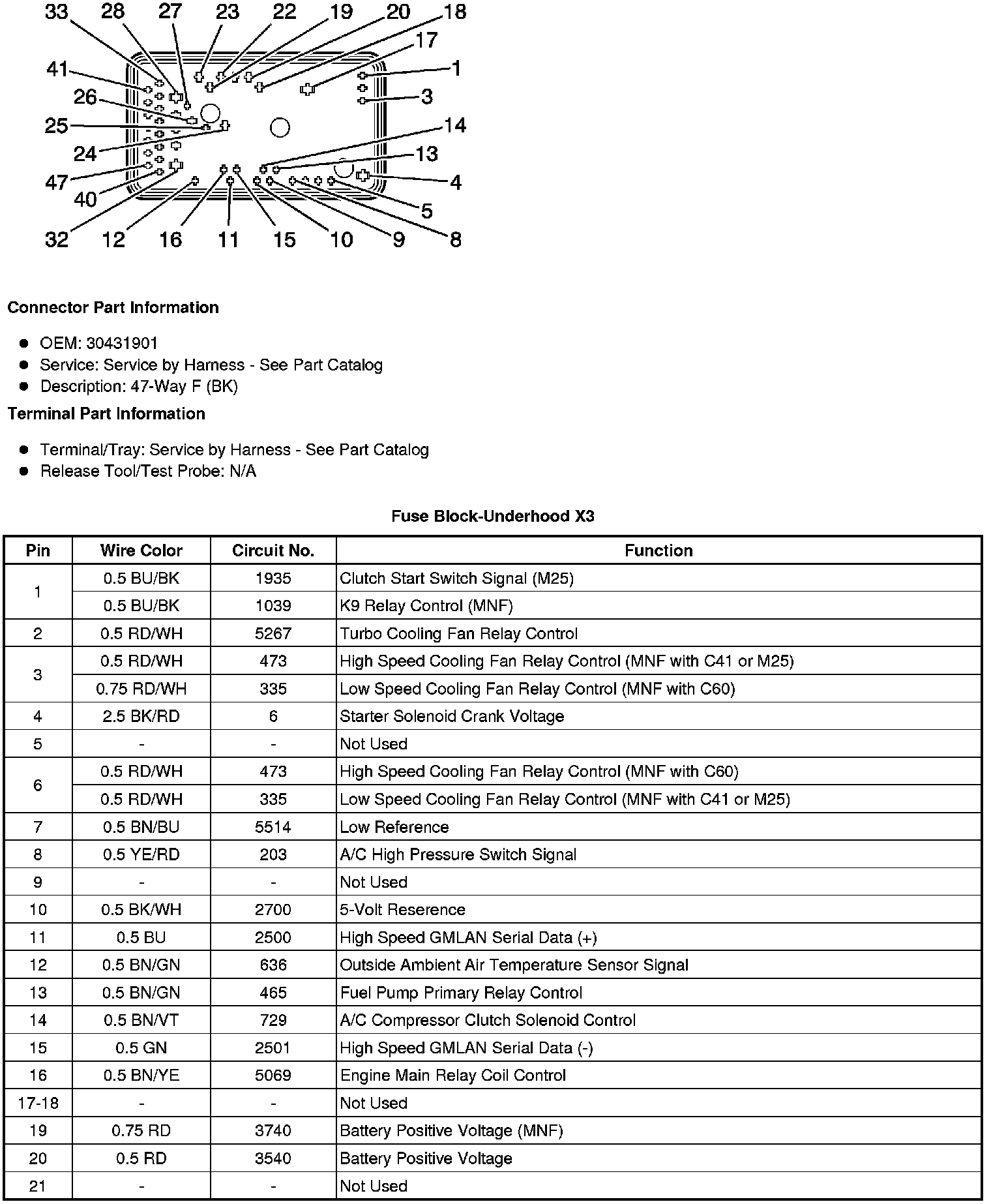

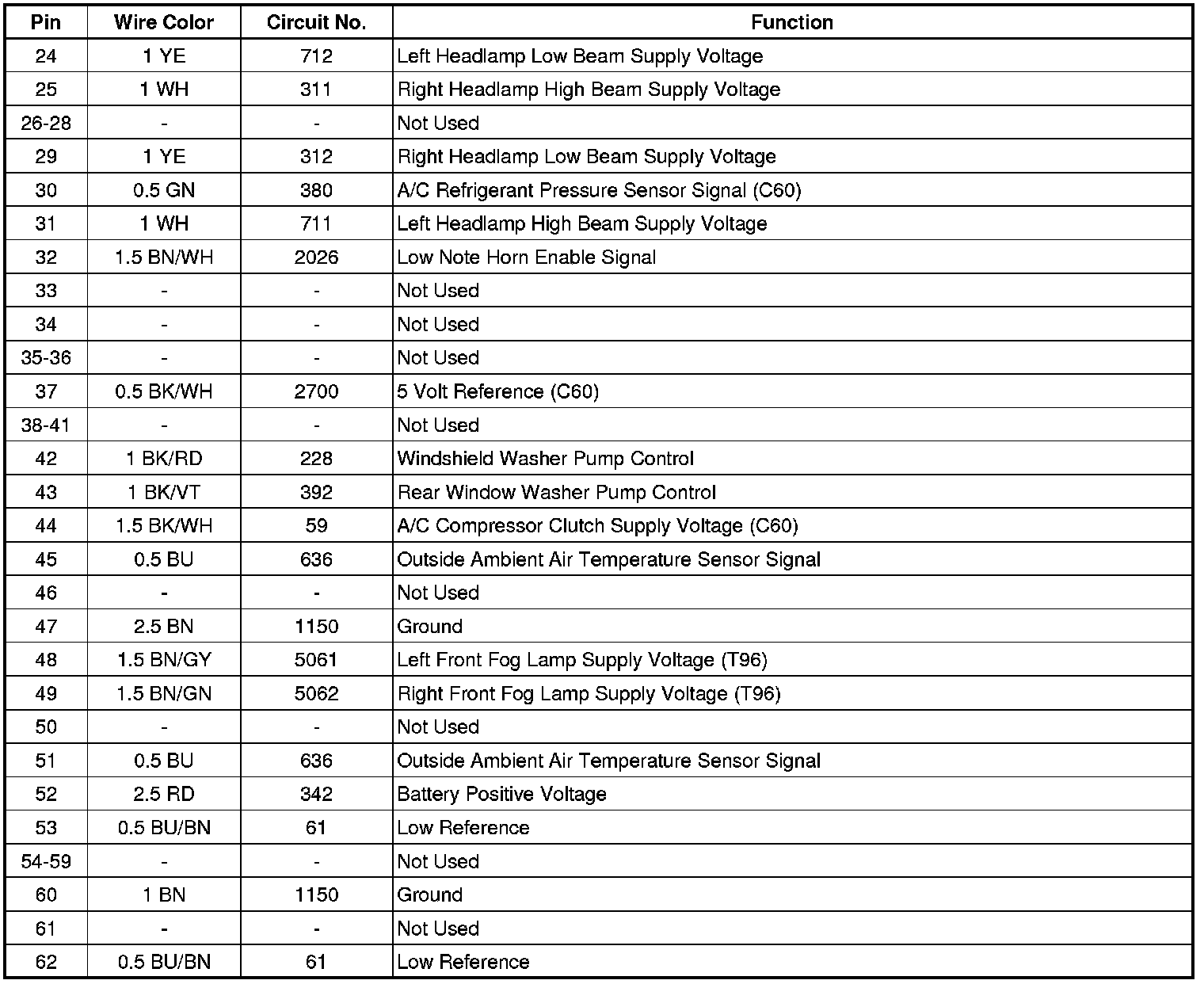

Fuse Block-Underhood X3
