Installation Procedure

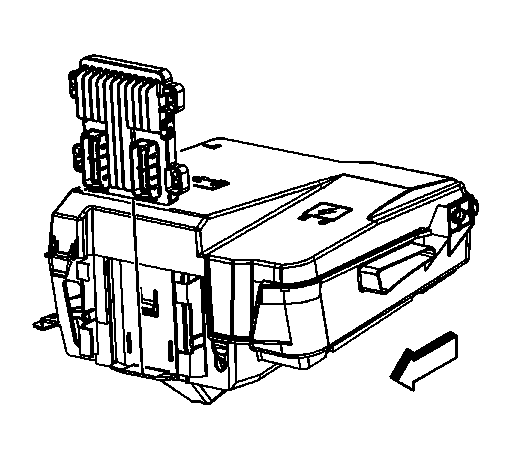

    Fig 1: View Of ECM
    GM1794566Courtesy of GENERAL MOTORS CORP.
  1. Slide the ECM into the bracket on the battery tray.
  2. Push down on the ECM until the retaining tab snaps into place.

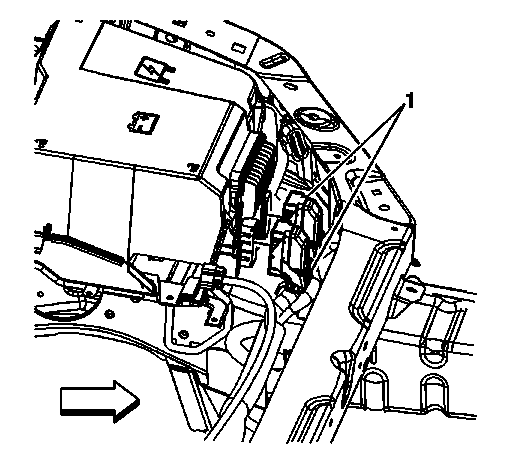

    3. Fig 2: Identifying ECM Engine Wiring Harness Electrical Connector
    GM1777201Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connectors (1) to the ECM.
  4. Slide the lever locks to the down position in order to engage the engine wiring harness electrical connectors.
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LAT) or Battery Negative Cable Disconnection and Connection (LZ4, LY7, and LE5) .
  6. If a NEW ECM was installed, program the ECM. Refer to Control Module References .
