Electronic Traction Control Switch Replacement
WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

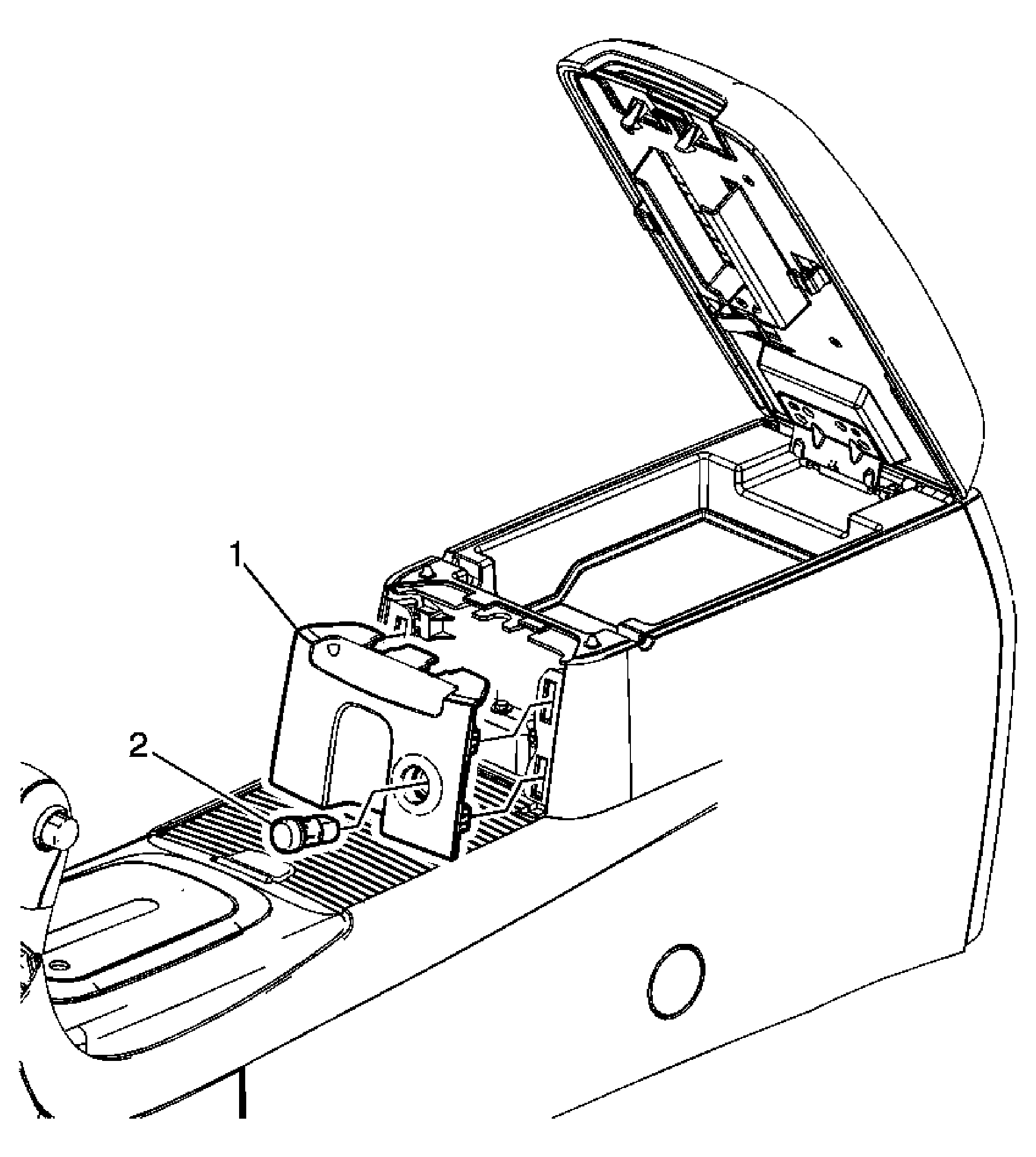

| Callout |
Component Name |
| 1 |
Console Front Trim Plate
Tip:
Disconnect electrical connections. |
| 2 |
Traction Control Switch Assembly
Tip:
Squeeze the tabs in order to release the switch from the trim plate. |
