Installation Procedure

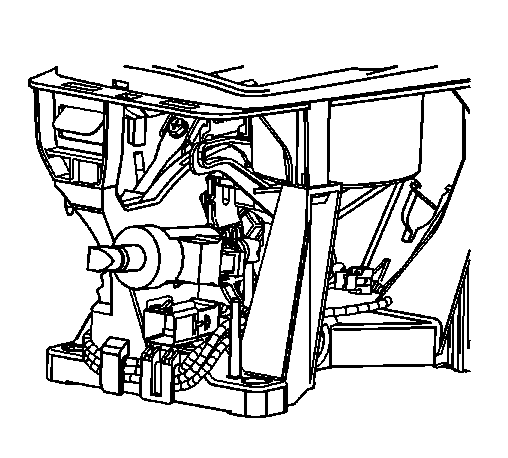

    Fig 1: View Of Shift Lock Control Solenoid
    GM1285269Courtesy of GENERAL MOTORS CORP.
  1. Route the shift lock control solenoid through the opening in the front of the control assembly.

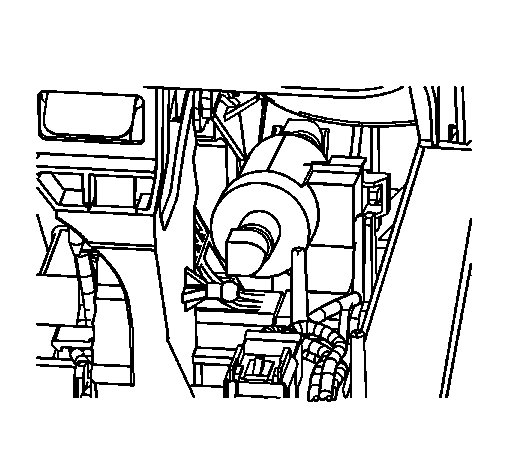

    2. Fig 2: View Of Solenoid & Ball-Sockets
    GM1285268Courtesy of GENERAL MOTORS CORP.
  2. Attach the ball-sockets to the control assembly body and the shift-lock control lever.

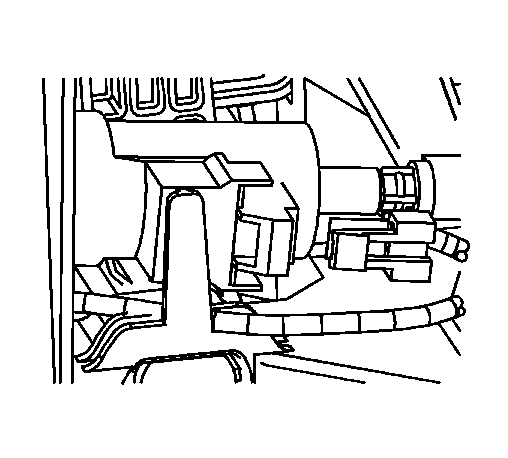

    3. Fig 3: View Of Shift Lock Control Solenoid Connector & Solenoid
    GM1285267Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the Shift Lock Control Solenoid.
  4. Install the automatic transaxle control assembly. Refer to Transmission Control Replacement .
