Battery Control Module: Locations

Passenger Compartment/Roof Component Views

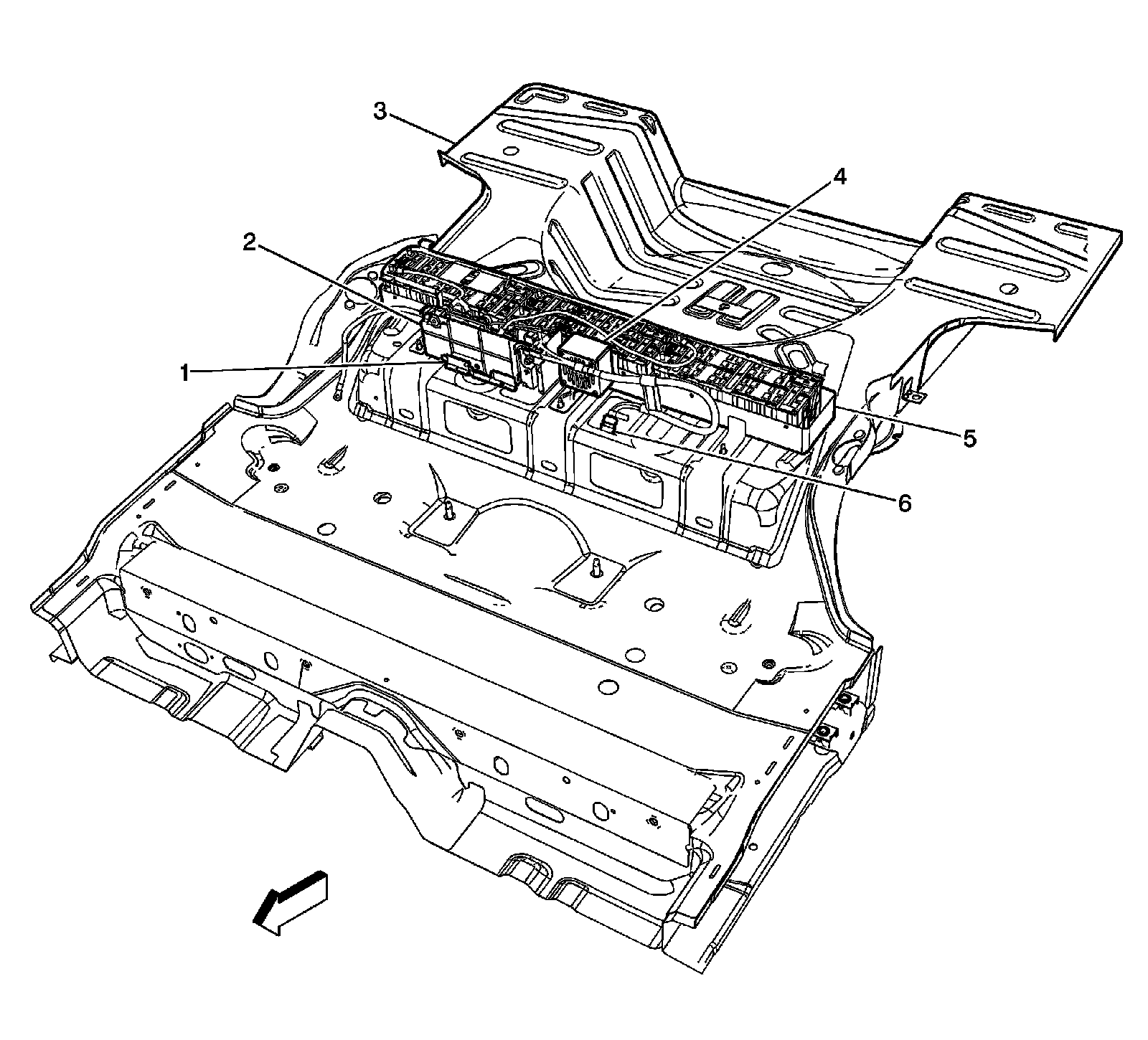

Passenger Compartment Hybrid Energy Storage Components




1 - Generator Battery Service Disconnect Switch
2 - Generator Disconnect Control Module
3 - Rear Compartment Panel
4 - Generator Battery Vent Fan
5 - Generator Battery - 36V
6 - X405
