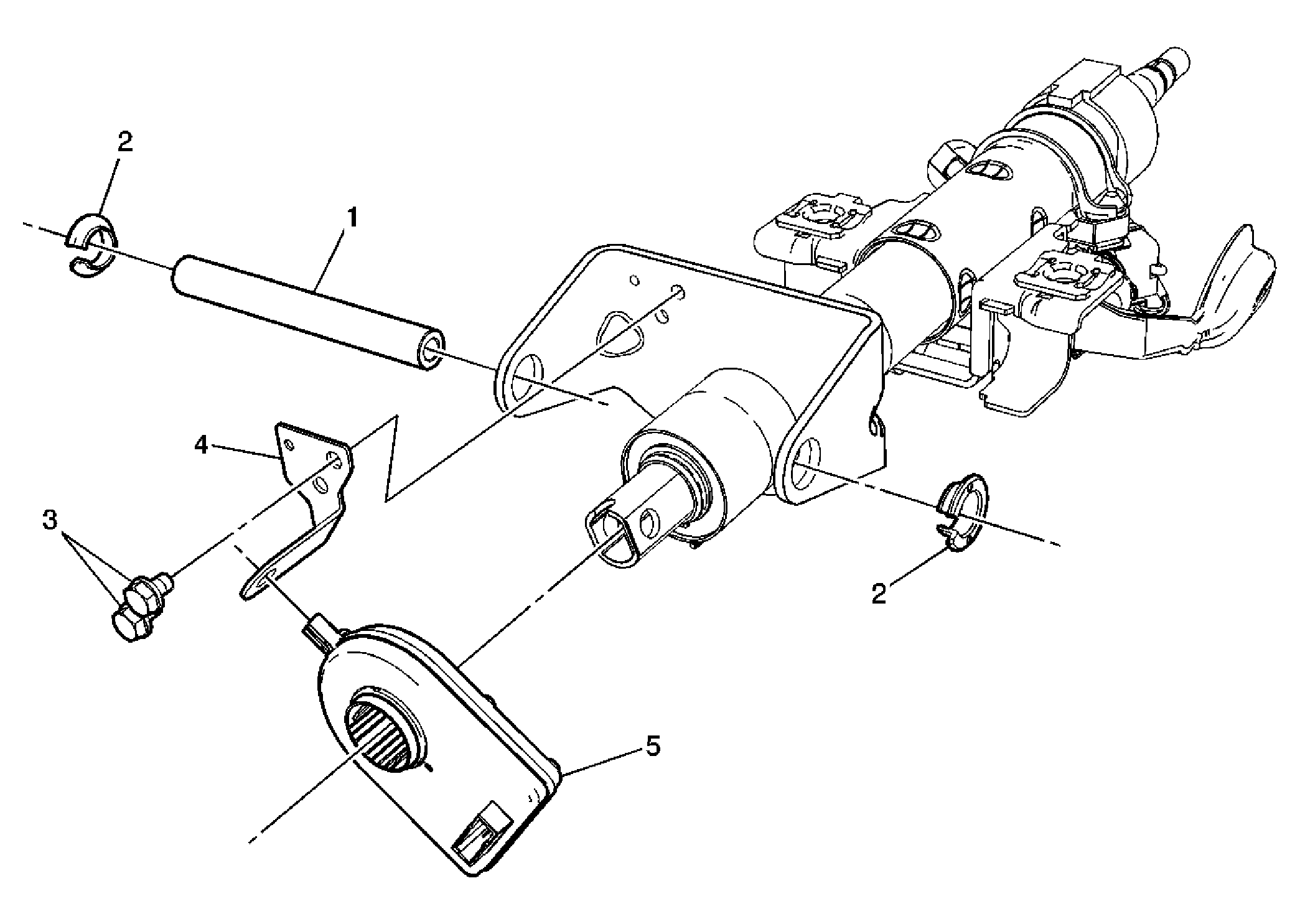

Steering Angle Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the steering column. Refer to Steering Column Replacement . |
|
| 1 | Metal Collar Rake Pivot |
| 2 | Plastic Bushing (Qty: 2) Tip: During installation, use NEW bushings. |
| 3 | Anti-Rotation Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 5 N.m (44 lb in) |
| 4 | Anti-Rotation Bracket |
| 5 | Steering Angle Sensor |
