Body Control System Schematics

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

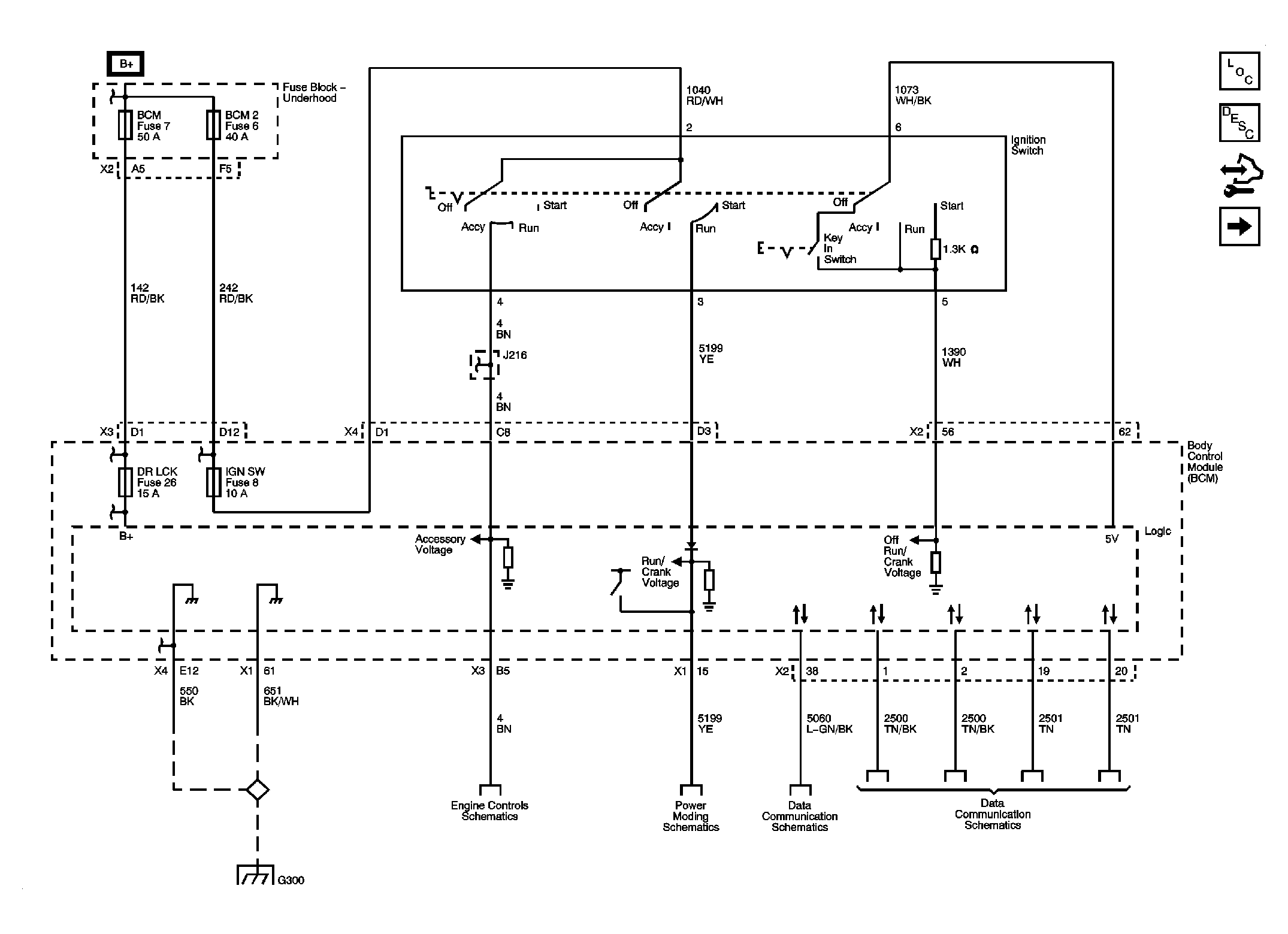

Fig 1: Power, Ground & Data Link Schematic

Courtesy of GENERAL MOTORS CORP.

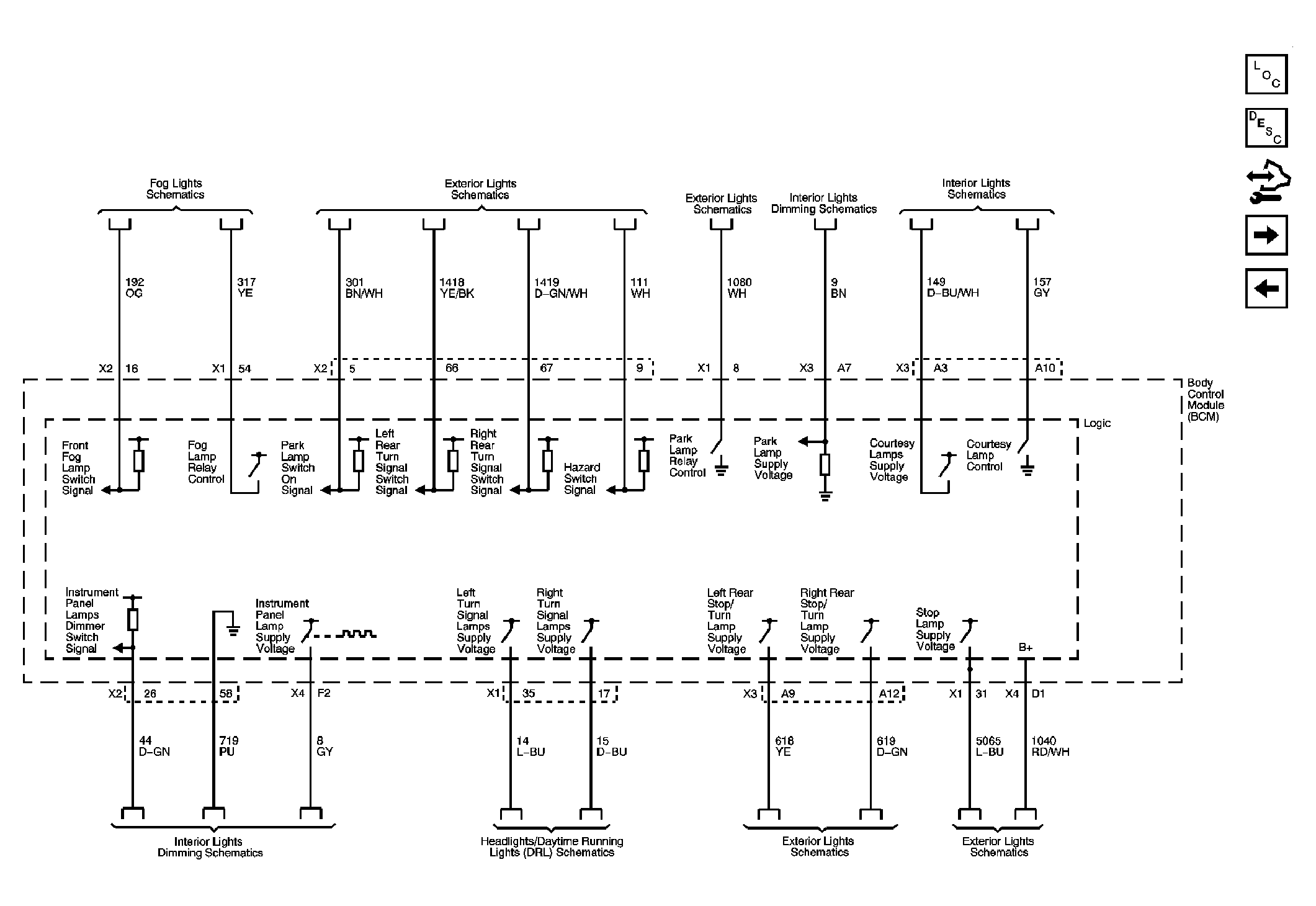

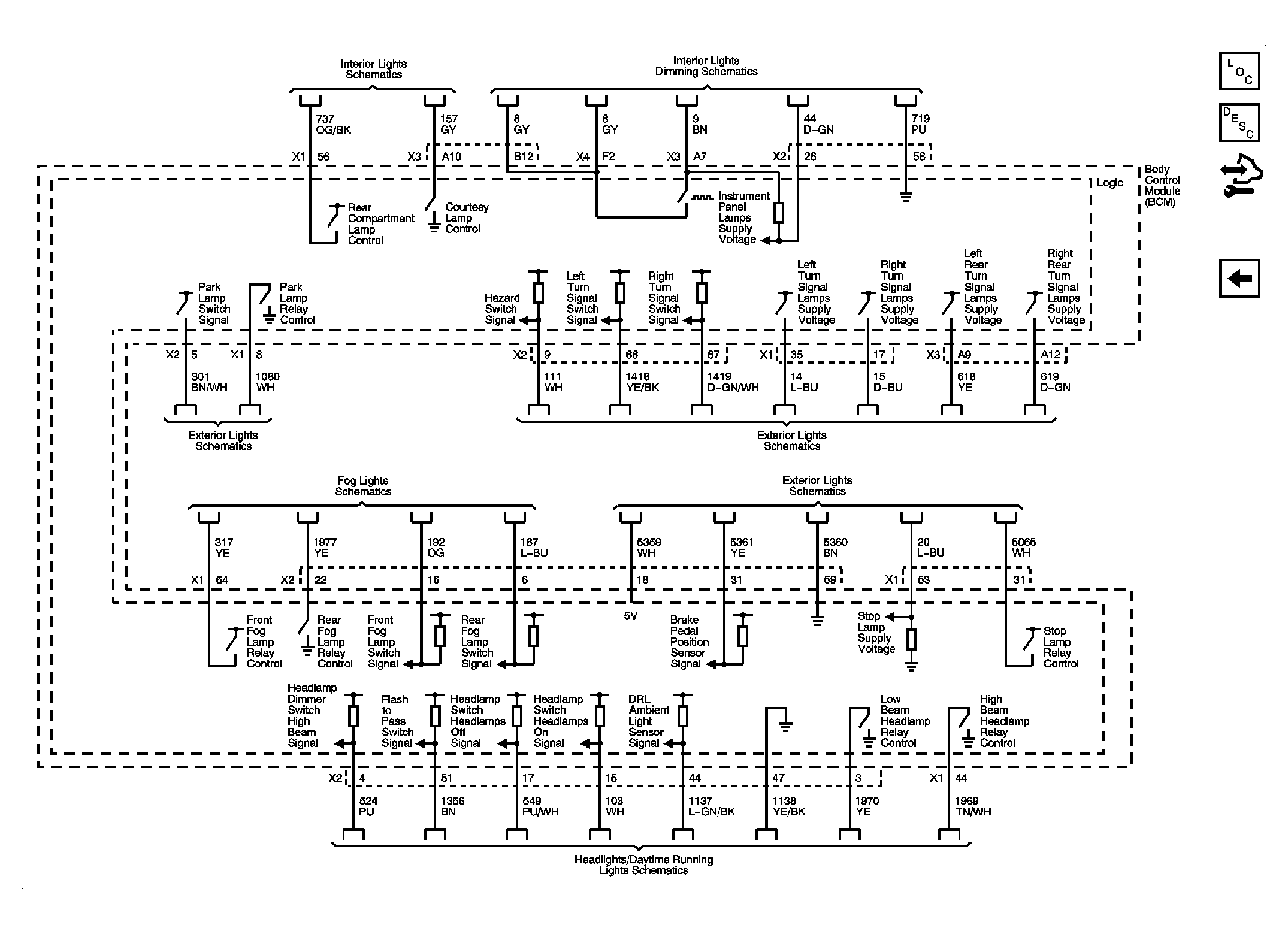

Fig 2: Lighting System References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Brakes, Cooling System, Cruise & Door Lock References Schematic

Courtesy of GENERAL MOTORS CORP.

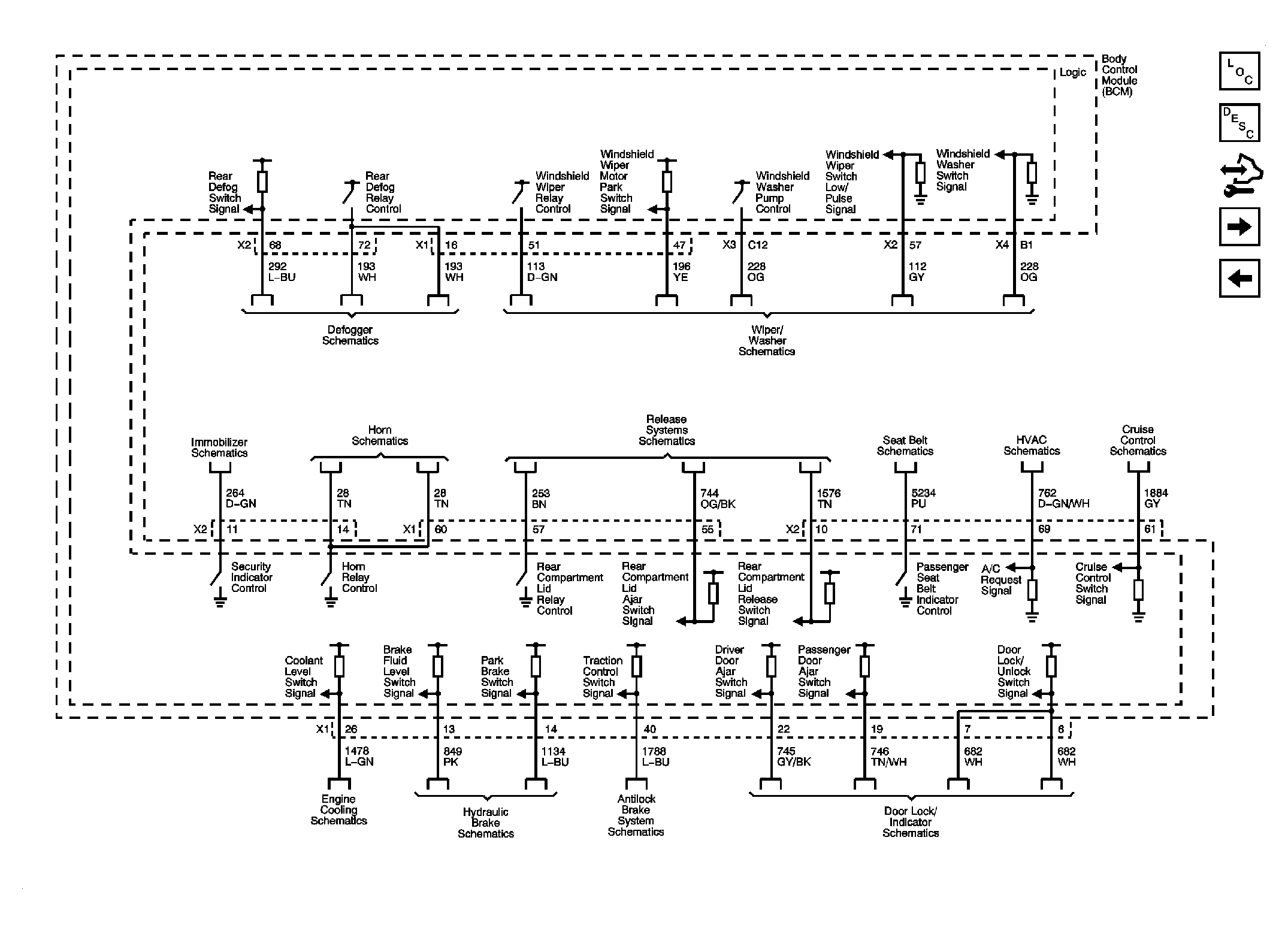

Fig 4: Defogger, Horn, Release Systems & Wiper/Washer References Schematic

Courtesy of GENERAL MOTORS CORP.
