Cellular & Navigation Antenna Assembly Replacement
WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

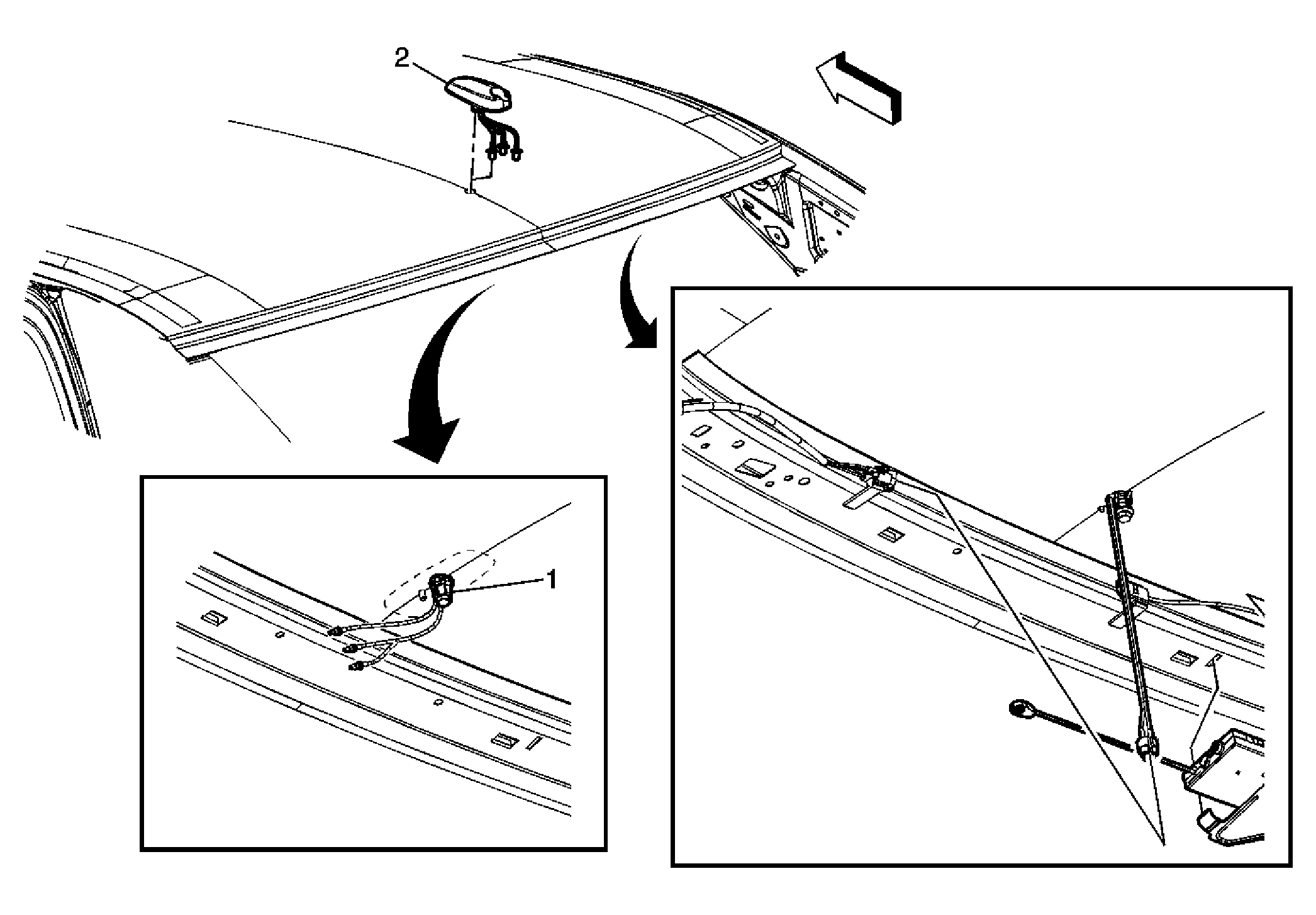

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Antenna Module Clip |
| 2 | Antenna Module Assembly Tip: Disconnect the antenna connectors. |
